Why Choose Custom Iron Core Linear Motors for High-Load Automation Systems

This article explains why custom iron core linear motors are used in high-load automation systems, what can be customized, and how they help equipment manufacturers achieve more reliable motion performance.

Why Standard Linear Motors May Not Fit High-Load Systems

Standard linear motors can meet many general automation needs, but high-load systems often face more demanding motion conditions. As the moving mass, stroke length, or operating cycle increases, the motor must deliver higher thrust while maintaining consistent positioning accuracy and smooth motion.

In applications such as large motion stages and heavy-duty automation equipment, motor selection is closely related to the overall machine design. Factors including payload, acceleration profile, travel distance, and duty cycle all influence whether a standard motor can meet the requirements or if a more tailored solution is necessary. If you want to understand what a linear motor is used for across different industries, our overview covers common applications and use cases that may help you evaluate your own requirements.

Rather than adapting the equipment around a fixed motor specification, a custom iron core linear motor allows the motor characteristics to be matched with the actual application requirements. This approach can lead to better overall system performance without unnecessary oversizing or design compromises.

What Can Be Customized in Iron Core Linear Motors?

Custom iron core linear motors allow manufacturers to adjust the motor configuration according to the actual requirements of the equipment. Instead of selecting from a fixed specification range, engineers can work with parameters such as thrust output, motor dimensions, magnetic track layout, and integration features. To see how different product families compare, check out our detailed breakdown of CFS vs CFW iron core linear motor series and their respective advantages for various load conditions.

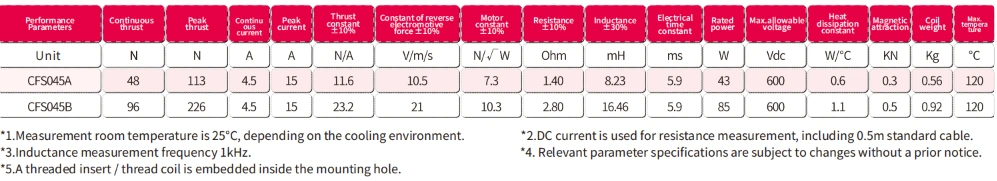

1. Thrust Configuration and Motor Sizing

For high-load automation systems, the required thrust depends on the moving mass, acceleration profile, and operating cycle of the equipment. Selecting the right force level is important because insufficient thrust limits acceleration and throughput, while excessive capacity adds cost, size, and energy consumption.

Smartwin supports different iron core linear motor configurations for various load requirements. For applications requiring higher force density, the CKM series can provide up to 2520 N continuous thrust, making it suitable for heavy-duty stages and large automation platforms. Other series offer different thrust ranges to match lighter or medium-load applications.

By matching motor output with the actual load conditions, manufacturers can achieve the required motion performance while keeping the overall machine design more efficient.

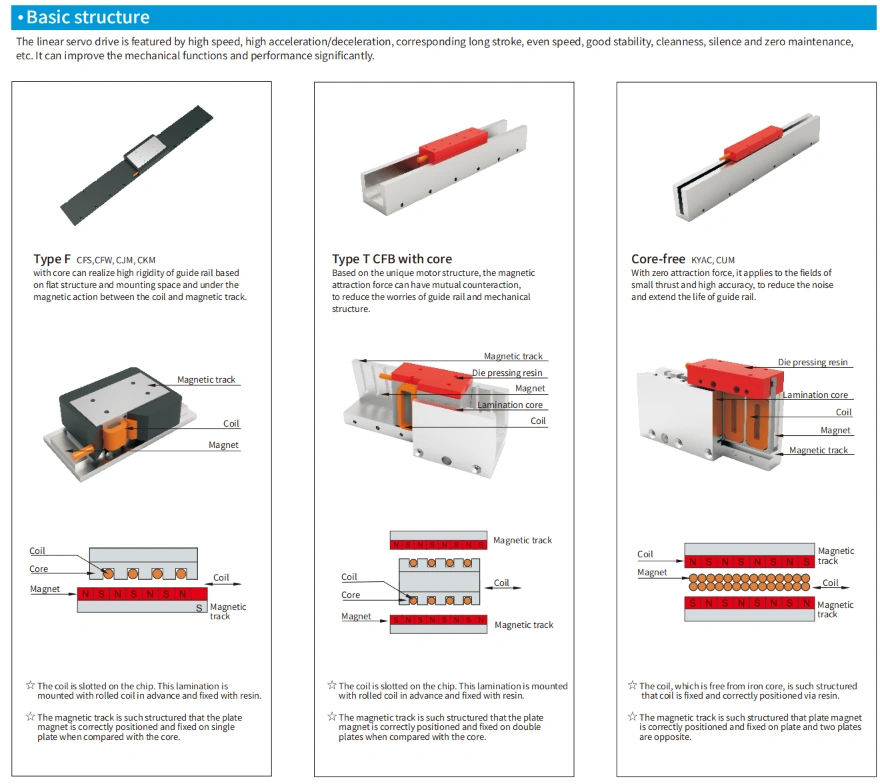

2. Mechanical Structure and System Integration

In many automation systems, the available installation space and mechanical design determine how the motor can be integrated.

Custom configurations can include adjustments to motor dimensions, mounting structure, magnetic track arrangement, and stage integration. This flexibility is especially valuable for equipment with complex layouts or where the motor must fit within an existing mechanical envelope.

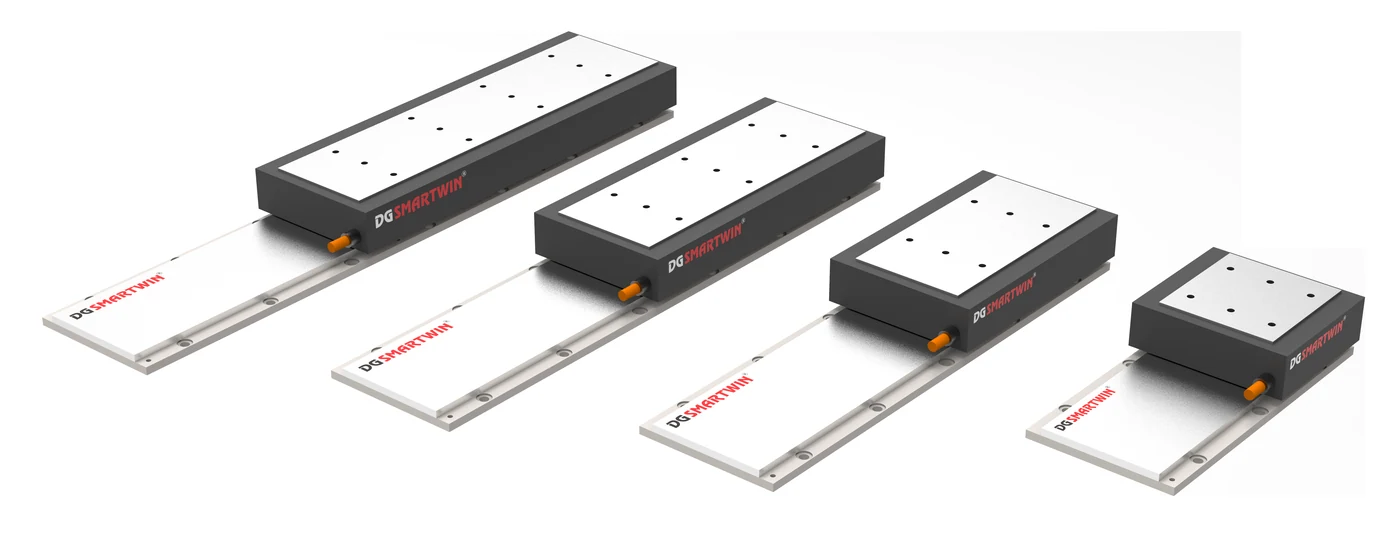

Smartwin provides multiple iron core linear motor options, including CFS, CFW, CJM, CKM, and CMW series, allowing engineers to select a suitable structure based on the machine design and application requirements.

3. Motion System Compatibility

The performance of a linear motor depends not only on the motor itself but also on the complete motion system, including the encoder, servo drive, and mechanical structure.

For precision applications, Smartwin linear motor solutions can be configured with suitable feedback and control systems to achieve accurate positioning and stable operation. Different configurations may include various encoder resolutions, drive types, and cooling options depending on the specific needs of the application.

This approach helps equipment manufacturers develop motion systems that better match their performance targets and operating conditions.

How Custom Motors Improve Force, Stability, and Integration

A custom iron core linear motor is developed according to the actual requirements of the machine, including load conditions, movement characteristics, and installation constraints. This approach allows the motor to be optimized for the specific application rather than selected from a general-purpose catalog.

1. Optimized Force Output for High-Load Motion

Heavy-load equipment requires consistent driving force throughout the entire movement cycle, especially during acceleration and positioning stages.

By selecting a motor configuration that matches the moving mass and required motion profile, the system can achieve the necessary thrust without unnecessary oversizing. This leads to more compact machine designs and lower power consumption. You can explore how linear motor thrust force works in practice, including the difference between peak and continuous force ratings.

Properly sized motors also reduce thermal stress and extend service life by avoiding operation near their limits during normal cycles.

2. Improved Motion Stability

In precision automation, motion performance can be influenced by factors such as vibration, load fluctuation, and mechanical structure. An unsuitable motor configuration may amplify these effects and reduce positioning consistency.

A properly matched linear motor, together with the feedback system and servo control, helps maintain smoother movement and more consistent positioning performance under varying load conditions. Discover how linear motor efficiency contributes to stability and reduced maintenance in demanding production environments.

3. Better System Integration

The linear motor must work together with other motion components, including the encoder, drive system, and mechanical stage.

During the design process, a custom solution can consider these elements as a complete system rather than separate components. This reduces integration challenges and helps ensure that all parts are compatible with each other. When choosing between different motion technologies, you might also find our comparison of linear drives vs linear motors helpful for understanding which solution best fits your integration needs.

Custom Iron Core Linear Motors for Industrial Automation

Custom iron core linear motors are commonly used in automation equipment with specific motion requirements that cannot be fully covered by standard configurations. Below are several typical application areas where customization provides clear benefits.

1. Semiconductor and Precision Equipment

In semiconductor inspection and measurement systems, the motion stage must perform repeated scanning and positioning with minimal variation. The linear motor needs to deliver smooth motion, low ripple, and high repeatability over long operating periods.

For these applications, motor configurations can be adapted to the stage size, payload, travel distance, and accuracy requirements, providing a motion solution that meets the strict demands of semiconductor manufacturing. See examples of high precision linear motors in wafer inspection and metrology applications for reference.

2. Large Automation Stages

Large motion platforms usually combine longer travel distances with heavier moving components, creating higher demands on the drive system and mechanical structure.

A customized iron core linear motor can be matched to the platform design, providing the required driving force while maintaining the advantages of direct-drive motion, such as fast response and zero backlash. Our direct drive motor selection guide for industrial automation covers key factors to consider when specifying motors for this type of equipment.

3. High-Speed Manufacturing Equipment

For production equipment with frequent acceleration and rapid positioning cycles, motion performance directly affects machine throughput.

By optimizing the motor configuration for the required speed, thrust, and installation conditions, manufacturers can build faster and more efficient motion systems without sacrificing reliability or accuracy. If you're evaluating options for your next project, read through our guide on how to choose an efficient direct drive linear motor to make a well-informed decision.

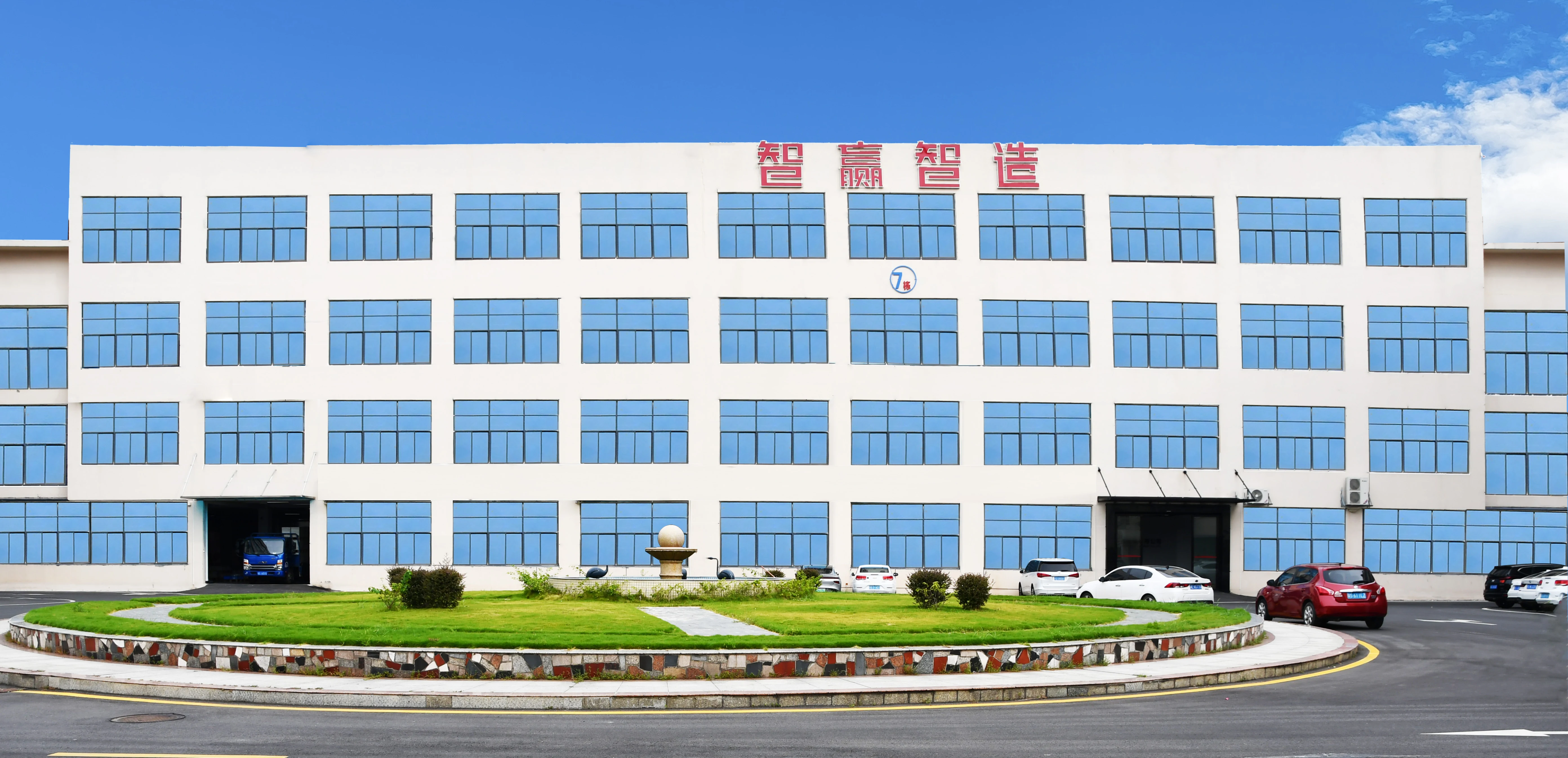

Smartwin Custom Iron Core Linear Motor Solutions

Smartwin provides custom iron core linear motor solutions for equipment manufacturers requiring specialized motion performance beyond standard configurations.

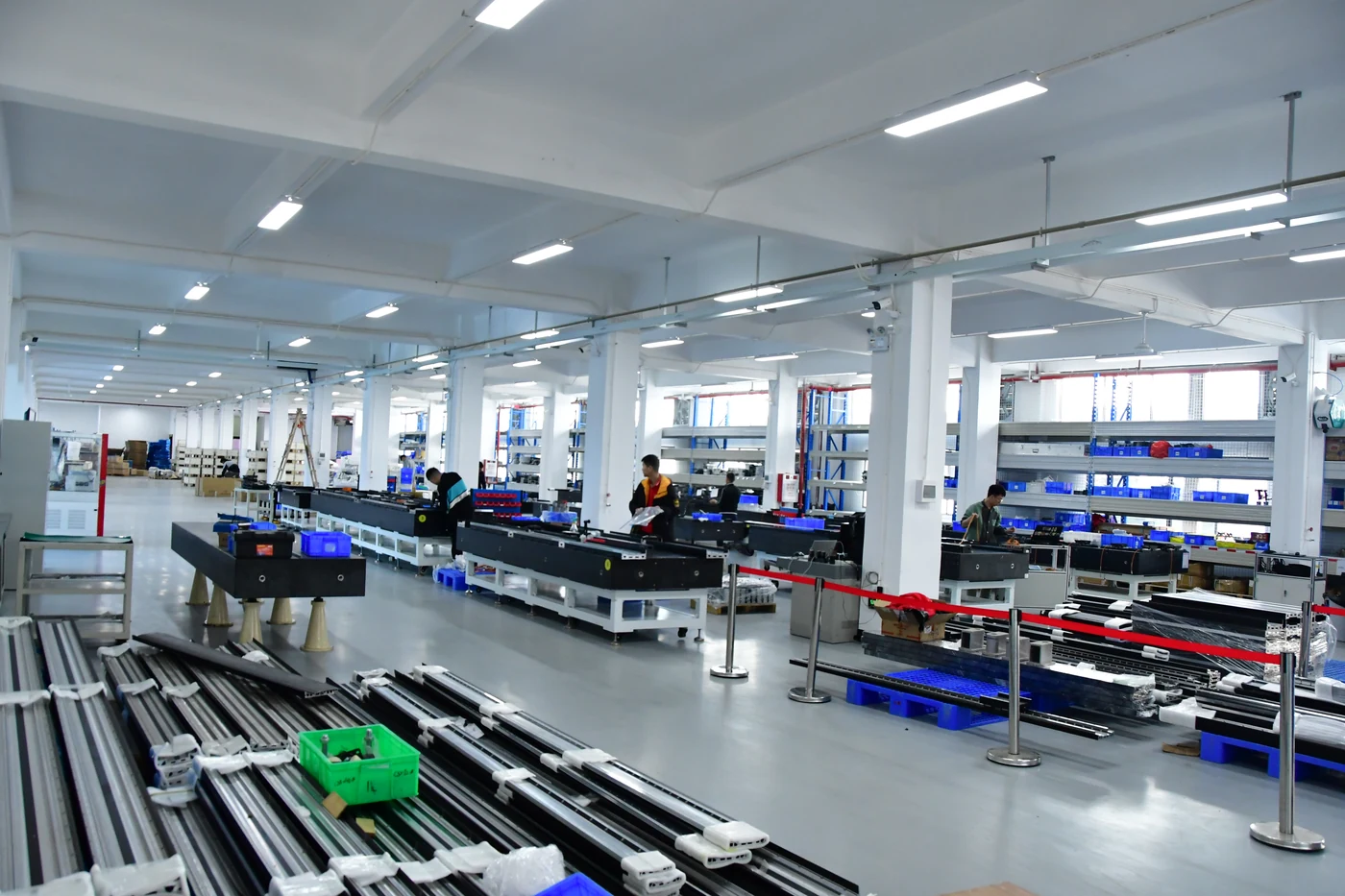

With experience in precision motion applications, Smartwin supports motor selection, configuration optimization, and system matching to help customers develop reliable and efficient motion systems tailored to their specific needs. Whether your application involves coreless vs brushless linear motor comparisons or fully integrated iron core solutions, our engineering team can assist with technical evaluation and configuration recommendations.

FAQ

1. Why use a custom iron core linear motor instead of a standard model?

A custom iron core linear motor is used when standard models cannot fully meet the equipment requirements. Customization allows the motor characteristics to be better aligned with the actual load, motion profile, and installation constraints of the application.

2. What can be customized in an iron core linear motor?

An iron core linear motor can be customized in areas such as thrust capability, motor dimensions, magnetic track arrangement, and system integration requirements including encoder and drive compatibility.

3. Are custom linear motors only used for heavy-load applications?

No. Custom linear motors are also suitable for applications requiring special installation conditions, higher positioning accuracy, unique mechanical structures, or specific motion profiles that standard models do not cover.

4. How do custom linear motors improve automation performance?

Custom linear motors improve automation performance by matching motor characteristics with the actual operating conditions of the machine. This helps achieve appropriate thrust, smoother motion, better stability, and more efficient system integration.

5. How do I select a custom iron core linear motor?

Selecting a custom iron core linear motor requires evaluating the complete motion system, including moving load, travel distance, speed, acceleration, duty cycle, available space, and accuracy requirements. Working with the motor supplier's engineering team can help identify the most suitable configuration for your application.

Conclusion

For high-load automation, precision equipment, and advanced manufacturing applications, selecting the right custom linear motor configuration helps build more reliable and efficient motion systems.

Contact Smartwin to discuss your custom iron core linear motor requirements and find a suitable motion solution for your application.
