High Precision Linear Motors for Wafer Inspection and Semiconductor Metrology

This article explains how linear motors improve wafer inspection performance, the role of direct-drive motion in semiconductor stages, and how Smartwin provides linear motor solutions for advanced semiconductor applications.

1. Why Wafer Inspection Requires High Precision Motion

Wafer inspection depends on precise and consistent stage movement. During the inspection process, the wafer must be positioned and scanned accurately while working with optical and measurement systems to identify microscopic defects and process variations.

As semiconductor inspection requires continuous scanning and frequent positioning, motion stability directly affects measurement accuracy and overall equipment performance.

A high precision linear motor provides the fast response and smooth motion control required for these applications, helping semiconductor equipment maintain reliable operation in wafer inspection and metrology processes.

2. How Linear Motors Improve Scanning Stability

In wafer inspection and semiconductor metrology, scanning stability directly affects measurement repeatability and defect detection accuracy. During inspection, the stage must move at a consistent speed while maintaining the correct position between the wafer, optical system, and measurement sensors.

A direct-drive linear motor improves this process by generating linear force directly between the coil and magnetic track, without relying on mechanical conversion components. This reduces motion errors caused by backlash, friction changes, and transmission delays, allowing the stage to respond more accurately during continuous scanning and rapid positioning cycles.

Smooth Motion for Precision Inspection

Optical inspection systems are highly sensitive to vibration and small velocity fluctuations. Unstable movement can introduce image distortion, measurement variation, or longer settling times before data acquisition.

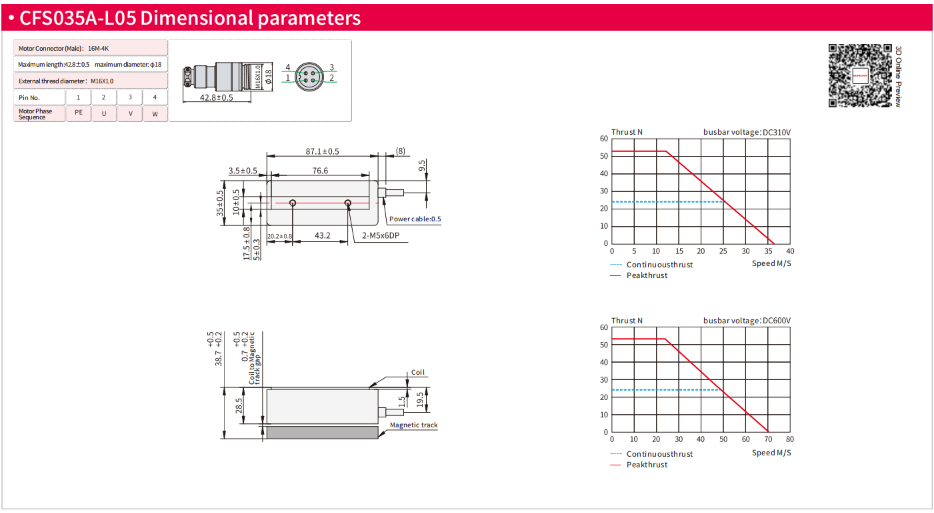

For applications requiring smooth scanning, reducing cogging force is an important consideration. Smartwin’s CFS series linear motors adopt a coreless structure to minimize cogging effects and provide smoother motion behavior. This design is suitable for precision inspection stages where stable low-speed movement and consistent scanning performance are required.

Encoder Feedback for Motion Accuracy

A high precision linear motor relies on accurate feedback to maintain positioning performance. The encoder continuously detects the actual position of the moving stage and provides real-time information to the servo controller.

With high-resolution encoder feedback and closed-loop control, the system can compensate for small position deviations during operation and maintain stable movement throughout repeated inspection cycles. This combination of linear motor, feedback system, and servo control helps semiconductor equipment achieve more reliable motion performance.

3. High Speed and High Precision in Semiconductor Metrology

Semiconductor metrology equipment must balance inspection throughput with measurement accuracy. As inspection areas become larger and scanning requirements increase, the motion stage needs to handle longer travel distances and repeated movements while keeping positioning performance consistent.

Linear motor systems are selected based on more than movement speed. Parameters such as load capacity, stroke length, repeatability, positioning accuracy, and motion stability all influence the final performance of the inspection platform.

High-Speed Motion with Stable Positioning

Smartwin semiconductor motion solutions are designed for precision stages that require both dynamic movement and accurate control. A typical semiconductor gantry configuration can handle a 40 kg load, provide a 1400 mm stroke, and reach a speed of 0.7 m/s, making it suitable for large-area inspection and measurement applications.

In addition to travel capability, positioning consistency is critical during repeated scanning operations. The same platform can achieve 1 μm repeatability and ±2 μm positional accuracy, helping maintain reliable measurement results throughout continuous inspection cycles.

Motion Stability for Precision Metrology

For semiconductor metrology, accurate positioning alone is not enough. The mechanical stability of the motion stage also influences the quality and consistency of measurement data.

Motion characteristics such as horizontal straightness and angular deviation become important when the stage operates with optical inspection systems. Smartwin motion solutions can achieve 5 μm horizontal straightness and less than 10 arcsec tilt error in roll, yaw, and pitch directions, supporting stable movement in high-precision inspection environments.

4. Direct Drive Motion for Wafer Inspection Stages

A wafer inspection stage requires precise coordination between the linear motor, feedback system, and mechanical structure to maintain stable scanning and measurement accuracy.

The appropriate motor configuration depends on factors such as moving load, travel range, required speed, and positioning performance. Different linear motor structures are selected according to the motion requirements of the equipment.

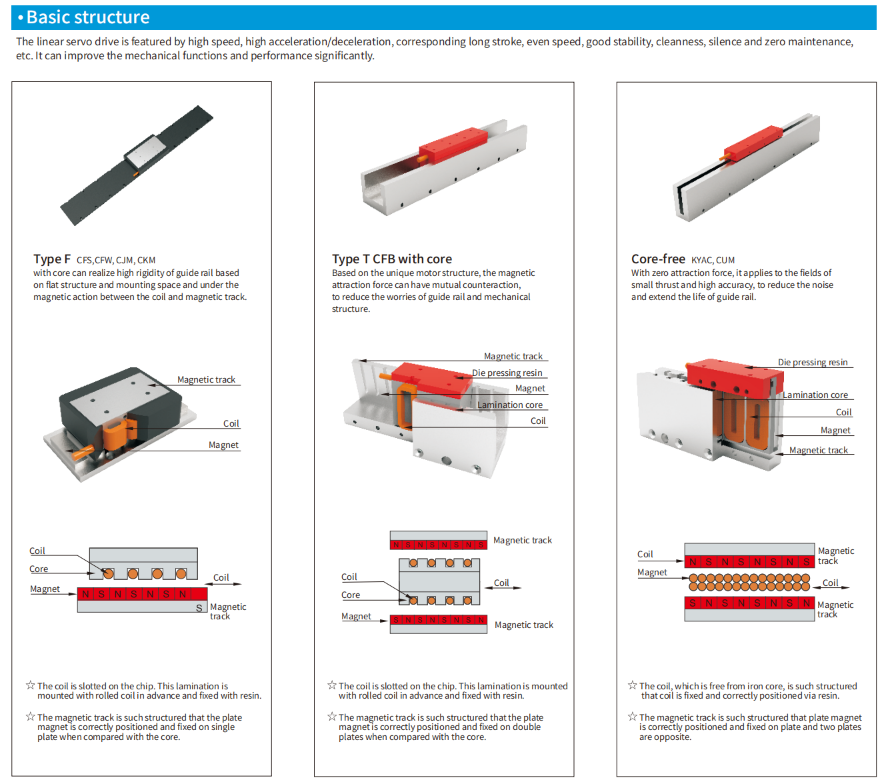

Coreless linear motors are suitable for inspection applications that require smooth movement and low vibration, while iron core linear motors provide higher thrust for stages with larger loads or more demanding motion conditions.

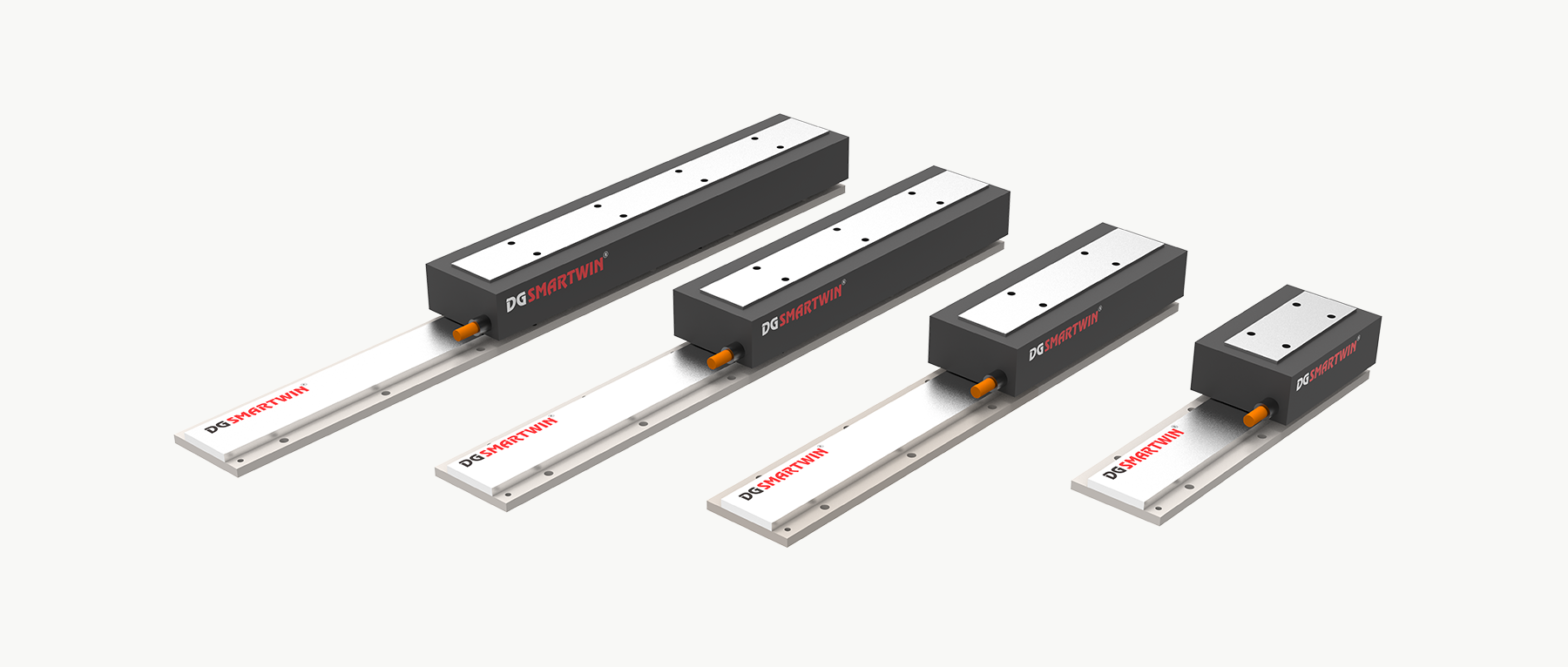

For equipment designs that require a more integrated solution, Smartwin offers LMS and BMS series linear motor modules, combining linear motor technology with supporting stage components to simplify system design and improve integration efficiency.

5. Smartwin Semiconductor Linear Motor Solutions

Smartwin provides semiconductor linear motor solutions for wafer inspection, semiconductor metrology, and precision automation equipment. Its product portfolio includes CFS, CFW, CJM, CKM, CMW series linear motors, and LMS/BMS modules, covering different requirements for smooth motion, high thrust, fast positioning, and system integration.

With direct-drive technology and encoder feedback integration, Smartwin helps equipment manufacturers select suitable motion solutions based on application requirements such as load, speed, travel range, and accuracy.

FAQs

1.What is a high precision linear motor?

A high precision linear motor is a direct-drive motor that generates linear motion through electromagnetic force without mechanical transmission components such as screws, gears, or belts. It is commonly used in semiconductor equipment, inspection systems, and precision automation applications where accurate positioning and smooth movement are required.

2.Why are linear motors used in wafer inspection equipment?

Linear motors are used in wafer inspection equipment because they provide fast response, stable scanning, and accurate positioning. These characteristics help inspection stages maintain consistent movement while working with optical systems and measurement sensors.

3.How do linear motors improve semiconductor metrology accuracy?

Linear motors improve semiconductor metrology accuracy by reducing motion errors caused by mechanical transmission components. Combined with encoder feedback and closed-loop control, they help maintain stable positioning and repeatable movement during continuous inspection cycles.

4.What factors should be considered when selecting a linear motor for semiconductor equipment?

Selecting a linear motor requires considering factors such as moving load, travel range, speed, positioning accuracy, feedback requirements, and operating conditions. The right configuration depends on the specific motion requirements of the semiconductor equipment.

5.How fast can a linear motor move in semiconductor applications?

Linear motor speed depends on the system design and application requirements. Smartwin semiconductor motion solutions can achieve speeds up to 0.7 m/s in typical precision gantry configurations while maintaining high repeatability and positioning accuracy.

Conclusion

High precision linear motors play an important role in improving the performance of wafer inspection and semiconductor metrology equipment. Through direct-drive motion, advanced feedback control, and different motor configurations, they help equipment manufacturers achieve stable, accurate, and efficient motion performance.

Smartwin provides semiconductor linear motor solutions designed for precision inspection and measurement applications. Contact Smartwin to explore a suitable motion solution for your semiconductor equipment requirements.
