DD Motor Position Deviation during High-speed Direction Reversal? SMARTWIN Analyzes Key Selection Criteria for Rotary Stages

DD Motor Position Deviation during High-speed Direction Reversal? SMARTWIN Analyzes Key Selection Criteria for Rotary Stages

In semiconductor automated production lines, DD motor rotary stages perform core tasks including wafer transfer and alignment inspection. Many equipment manufacturers have repeatedly tuned drive parameters and verified all mechanical locking mechanisms. Nevertheless, position deviation upon high-speed direction reversal and poor angular repeatability still occur after mass production launch. Based on field service experience, most of such faults are not caused by program configuration. The root cause lies in mismatches between motor mechanical structure, encoder configuration and actual operating conditions. Selecting a direct-drive motor matching working conditions is critical to stable equipment mass production and lower process defect rates.

1. Common Practical Challenges in Current DD Motor Selection

The domestic direct-drive motor market has inconsistent product quality. Some low-cost general DD motors show impressive static specifications, yet their performance degrades remarkably under high-speed direction reversal and dynamic load fluctuation conditions. Imported overseas DD motors deliver excellent dynamic performance, but suffer from high procurement costs and long lead times. Delivery constraints during urgent prototyping and small-batch trial production delay project schedules for equipment manufacturers.

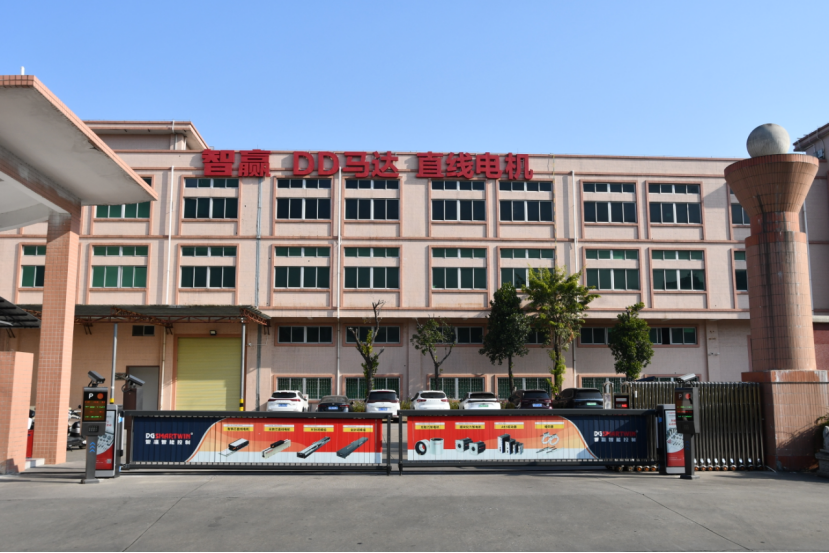

DGSMARTWIN (SMARTWIN Intelligent Equipment) specializes in the R&D and manufacturing of direct-drive motors with DD motors as its core product, focusing on automated rotary stations for semiconductors, 3C electronics and display panels. All procedures including design, machining, assembly and aging test are completed in-house with no OEM/outsourced branding. We provide direct-drive solutions for automation system integrators and end-user production lines.

2. Core Hardware Capabilities to Resolve Dynamic Operation Pain Points on Production Lines

We focus on optimizing three key performances: dynamic response, closed-loop feedback and anti-load disturbance, to address common drawbacks of ordinary DD motors available on the market, such as drift during high-speed direction reversal, angular deviation under external disturbance and accuracy degradation after long-term operation.

Highlights of hardware configuration: Equipped with high-precision absolute encoder to realize real-time angular closed-loop feedback. Optimized internal magnetic circuit structure effectively suppresses torque ripple. Enhanced bearing locking rigidity resists instantaneous shocks caused by material pick-and-place at workstations. Whether for high-speed cyclic direction reversal at multi-stations or when the rotary stage suffers instantaneous external disturbance, stable angular positioning can be maintained. It reduces process defects induced by angular offset and cuts down the frequency of production line shutdown for calibration.

3. Product Solution Matrix Adapted to Diverse Equipment and Process Conditions

All DD motors are compatible with mainstream motion controllers on the market. Standard models have demo units in stock for rapid sample delivery and on-machine testing. For custom requirements such as special load, installation dimension and cleanliness class, development can be carried out according to drawing parameters to achieve stable delivery from prototype sampling to mass production.

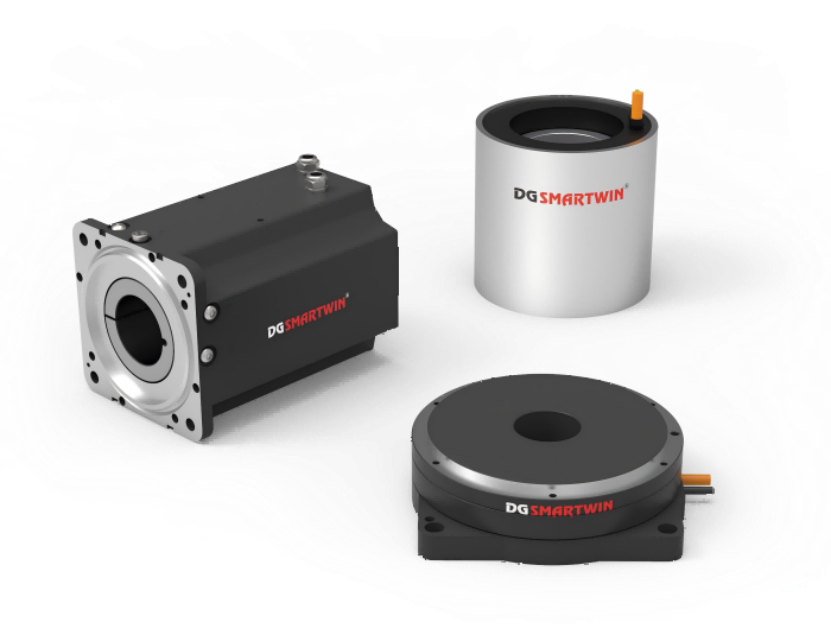

Based on equipment load, rotation cycle time and workshop environment, SMARTWIN Intelligent Equipment provides DD motor solutions with multiple specifications:

①Standard General DD Motor: Cost-effective, suitable for 3C assembly and general visual inspection to meet mass automated production.

②Hollow Shaft DD Motor: Allows cables and air lines to pass through the center. Ideal for panel inspection and semiconductor wafer inspection equipment, simplifying internal layout of the whole machine.

③Low-particle Cleanroom DD Motor: Optimized sealing structure with low particle emission, suitable for cleanroom working conditions in semiconductor and medical industries.

All DD motors are compatible with mainstream motion controllers on the market. Standard models have demo units in stock for rapid sample delivery and on-machine testing. For custom requirements such as special load, installation dimension and cleanliness class, development can be carried out according to drawing parameters to achieve stable delivery from prototype sampling to mass production.

4. Full-process Factory QC to Ensure Consistency in Mass Deployment

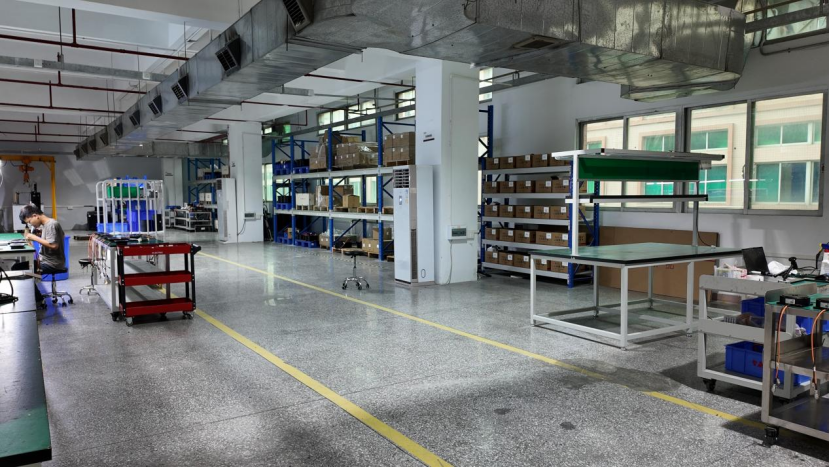

SMARTWIN Intelligent Equipment has established a comprehensive internal quality control system, covering incoming component inspection, magnetic circuit assembly, bearing mounting, complete-machine aging running-in and full inspection of angular accuracy. Every DD motor delivered undergoes multiple rigorous tests to prevent non-conforming products from shipment. With self-R&D and in-house manufacturing, we eliminate intermediate distributors, balancing high performance, competitive cost and short lead time. We are now an appointed direct-drive motor supplier for many automation equipment manufacturers.

Q: How to guarantee consistent performance of every DD motor upon bulk purchase?

A: Adopting self-R&D and in-house manufacturing, SMARTWIN implements standardized tooling and assembly processes and builds a full internal QC system spanning incoming component inspection, magnetic circuit assembly, bearing assembly, complete machine aging running-in and full angular accuracy inspection. Each DD motor is calibrated uniformly to control parameter deviation of individual units. We not only screen defective units, but also ensure unit-to-unit consistency of key indicators such as torque and positioning accuracy within the same batch, meeting the requirements of mass on-machine application.

Q: What hardware factors usually lead to poor angular repeatability?

A: First, matching of encoder configuration, which serves as the foundation of precision for angular closed-loop feedback. Second, the motor’s magnetic circuit structure; improper magnetic circuit design generates torque ripple and causes angular jitter. Third, bearing support rigidity. Insufficient rigidity will result in angular jitter. Third, bearing support rigidity. Insufficient rigidity will result in angular offset under instantaneous shock during pick-and-place operations. These are the main hardware influencing factors, closely related to matching with actual working conditions, and should be verified carefully during the selection phase.

Each DD motor is calibrated uniformly to control parameter deviation of individual units. We not only screen defective units, but also ensure unit-to-unit consistency of key indicators such as torque and positioning accuracy within the same batch, meeting the requirements of mass on-machine application.
