Large Backlash during Reciprocating Return of Linear Module? SMARTWIN Shares Selection Guidelines for Precision Feed Components

Large Backlash during Reciprocating Return of Linear Module? SMARTWIN Shares Selection Guidelines for Precision Feed Components

In automated production lines, linear modules perform critical motions such as sample transfer and process feed. Many equipment manufacturers finish machine assembly and controller parameter tuning. After mass production launch, problems including excessive backlash on return stroke, unstable reciprocating positioning and operational vibration occur. According to numerous on-site commissioning cases, most of these faults are not caused by program tuning. The root causes lie in improper module selection and insufficient machining & assembly quality of transmission parts. Choosing a reliable original manufacturer of precision linear modules is the key for stable equipment feed and reduction of defective product loss.

1. Existing Difficulties in Linear Module Procurement within Domestic Market

A wide variety of linear modules are available in China. Ordinary economical modules usually meet static specifications, yet their accuracy degrades rapidly under high-frequency reciprocation, dusty environments and continuous impact conditions. High-end imported modules deliver stable and reliable performance, but feature high procurement cost and long lead time. Their delivery schedule hardly keeps pace with domestic equipment iteration and urgent modification requirements.

SMARTWIN Intelligent Equipment focuses on R&D and manufacturing of precision linear motion components. All products are self-developed and in-house manufactured without OEM branding or distribution resale. We serve automation equipment manufacturers in photovoltaic, medical, semiconductor and 3C electronics industries.

2. Core Machining & Assembly Capabilities to Resolve Common On-site Feed Faults

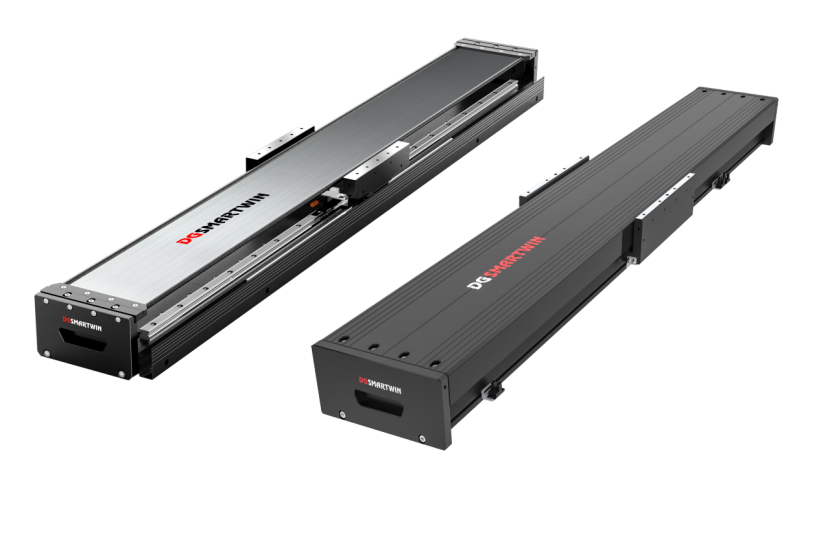

Our products focus on three key dimensions: machining accuracy of transmission pairs, profile rigidity and sealing protection, to target industry pain points of conventional modules such as excessive backlash at return stroke, vibration during high-speed feed and wear caused by dust ingress. Core strengths: Precisely control assembly backlash of ball screw and timing belt transmission pairs; adopt high-rigidity aluminum profile base to resist deformation induced by feed impact; optional fully enclosed dust-proof sealing structure prevents dust and debris from entering transmission components. Whether for sample scanning & transfer or process feed applications, it improves feed positioning consistency, reduces workpiece scrap caused by position drift and lowers the frequency of disassembly and maintenance.

3. Complete QC Process to Ensure Stability of Batch Delivery

A full quality control process is established, covering incoming raw material inspection, precision assembly of transmission components, complete-machine running-in test and repeat positioning accuracy inspection. Each module undergoes a full set of test procedures before delivery. Benefiting from in-house R&D and manufacturing, multi-layer intermediate links are eliminated. We balance product performance, cost and lead time, and currently supply products for numerous automation equipment manufacturers.

Q: Our workshop has heavy dust / harsh working environment. Can the module adapt?

A: The version with fully enclosed dust-proof sealing structure is recommended. This structure blocks dust and debris from entering the internal transmission parts, which addresses accelerated transmission wear under dusty conditions. The final selection shall be confirmed together with working environment, load and feed cycle time.
