Many machinery manufacturers often face confusion when selecting closed-loop feedback solutions for laser motors and torque motors, struggling to decide between optical encoders and magnetic encoders, incremental or absolute types. Improper selection either leads to excessive precision that raises equipment costs, or insufficient environment adaptability resulting in frequent failures in later operation. Drawing on years of practical experience supporting direct-drive systems, SMARTWIN Intelligent Equipment categories its encoders into two major technical routes: high-precision clean-type optical encoders and contamination-resistant cost-effective magnetic encoders. Each route is further divided into incremental and absolute output types. We provide clear selection logic targeting five key industries: semiconductor, lithium battery, photovoltaic, 3C electronics and laser processing, enabling encoder feedback solutions to balance precision, reliability and overall machine cost control.

1. Optical Encoders (SH/SA/SHR/SAR Series): Optimal Solution for High-Precision Clean Environments

Optical encoders adopt optical induction reading based on precision lithographed glass / stainless steel grating tracks. They deliver the highest accuracy grade among position detection solutions and serve as the standard feedback unit for SMARTWIN high-end direct-drive motors.

Core Applicable Scenarios: Prioritized for cleanroom equipment including semiconductor wafer processing machines, optical lens inspection equipment, precision medical instruments, and high-precision dispensing & mounting devices.

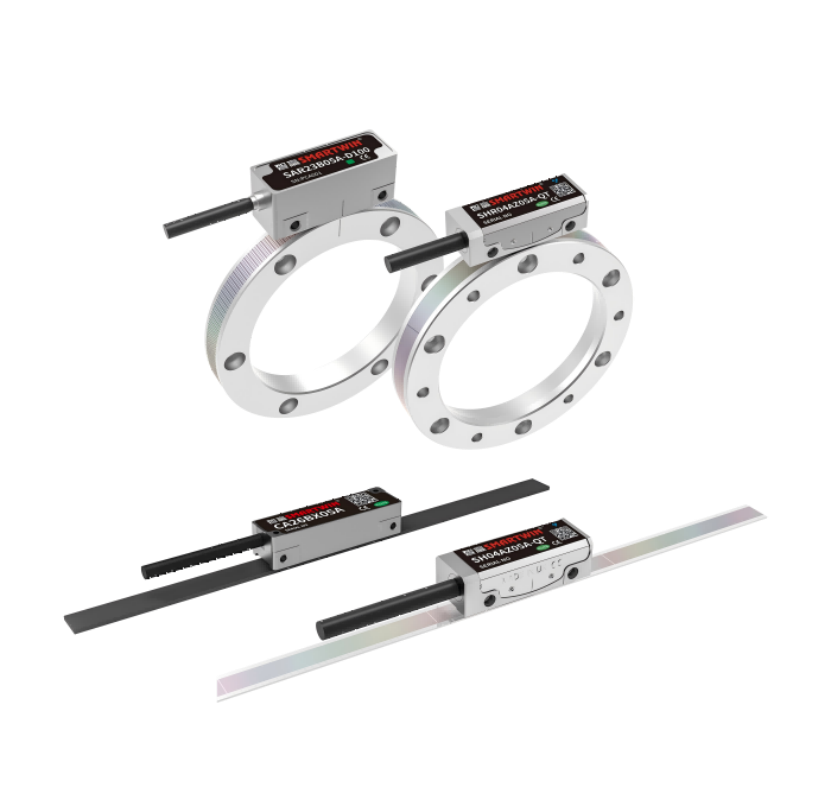

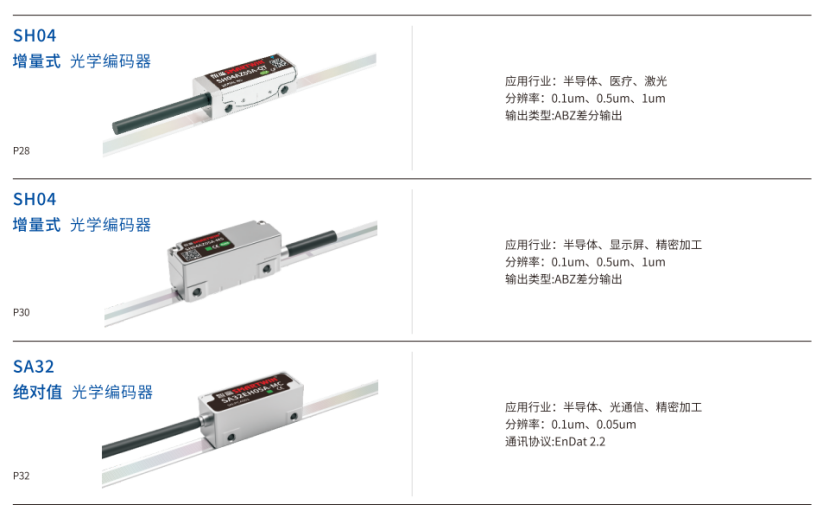

The SH incremental linear encoders and SHR incremental rotary encoders feature outstanding cost performance. With 0.1 μm resolution meeting most conventional precision positioning demands, their differential ABZ signals fit general servo systems, making them suitable for mass-produced standardized automation equipment.

SA absolute linear encoders and SAR absolute rotary encoders target high-end models. Supporting power-off position retention and BiSS bus communication, they are ideal for lithography machines, probe stations, and embedded rotary tables with frameless torque motors, delivering ultimate repeat positioning accuracy and stable operation.

Core Advantages: High maximum resolution, low thermal drift coefficient, and precise feedback of speed fluctuation. Paired with linear motors, they realize micron-level repeat positioning; matched with torque motors, they achieve arc-second-level angular positioning. Non-contact reading eliminates mechanical wear, with minimal accuracy degradation during long-term operation, supporting 7×24-hour continuous high-precision mass production.

Application Limitations: Certain cleanliness requirements for operating environments. Heavy dust, cutting oil and water mist adhering to grating tracks will interfere with signal reading. Not recommended for machining stations exposed to heavy dust and splashing oil contaminants.

2. Magnetic Encoders (CH/CA Series): Durable Choice for Harsh Mass Production Conditions

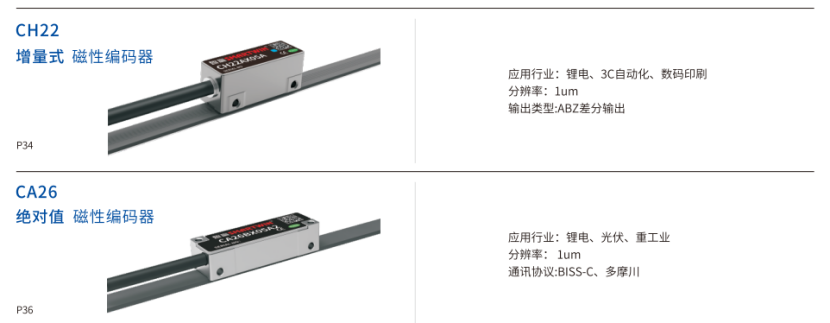

Magnetic encoders collect position signals based on magnetic induction principles. SMARTWIN CH incremental magnetic encoders and CA26 absolute magnetic encoders feature high protection class and strong fault tolerance, perfectly compensating for the environmental limitations of optical encoders.

Core Applicable Scenarios: Harsh production lines with aluminum scraps, graphite dust, cutting fluid and oil contamination, such as lithium battery stacking, cell welding, photovoltaic silicon wafer dicing, laser blanking and machine tool cutting.

The CA26 absolute magnetic encoder reaches IP67 protection rating. It can steadily output position signals even with splashed guide rail lubricating oil and accumulated workshop floating dust. The mounting gap between readhead and magnetic tape allows wide tolerance; minor mechanical assembly deviation will not affect operation, greatly reducing difficulties in equipment machining and assembly.

Core Advantages: Outstanding contamination resistance and excellent vibration & shock resistance. Lower costs for long-stroke splicing. For ultra-long-travel linear modules, the segmented magnetic tape splicing solution costs far less than long-distance optical encoders. With more economical overall material costs, they serve as cost-effective supporting components for mass-produced heavy-duty production equipment.

Application Limitations: The ultimate resolution is slightly lower than premium optical encoders, and less stable than optical encoders in ultra-high-precision nano-level positioning applications.

3. Incremental vs Absolute Encoders: Selection Based on Production Line Automation Level

With the same detection principle, these two output types determine the intelligence level of equipment. Incremental encoders feature lower prices and are suitable for ordinary conveying and handling equipment with low cycle rates and no strict requirements for homing after shutdown. Although absolute encoders carry slightly higher procurement costs, they eliminate time wasted on frequent homing and avoid the risk of machine collision caused by homing errors. Ideal for flexible mixed production, digital twin networking and high-end precision processes, they deliver better comprehensive long-term operating costs. As an enterprise with independent R&D covering the full direct-drive industrial chain, SMARTWIN Intelligent Equipment provides one-on-one encoder selection verification according to customers’ load travel, accuracy requirements, workshop environment and budget. We also conduct complete closed-loop parameter tuning in coordination with LMS/BMS linear motors, DDA torque motors and AKS servo drives, offering one-stop delivery from hardware selection to electrical commissioning.The two technical routes complement each other. They maintain the precision benchmark for ultra-precision equipment and address durability challenges faced by general mass-production lines. With a full range of domestic encoder products, we supply stable and reliable "precision sensing core" for domestic automated direct-drive systems, accelerating the independent and controllable development of the high-end motion control industrial chain.
