Industry 5G Empowerment: SMARTWIN Intelligent Equipment Realizes Practical Deployment of Wireless High-Precision Direct Drive for Linear Motor Modules

Industry 5G Empowerment: SMARTWIN Intelligent Equipment Realizes Practical Deployment of Wireless High-Precision Direct Drive for Linear Motor Modules

With the large-scale deployment of 5G TSN(Time-Sensitive Networking) and 5G LAN industrial private networks in high-end manufacturing, traditional wired bus motion control architectures are increasingly constrained by inherent bottlenecks including redundant wiring, fixed topology, complicated operation and maintenance, and limited scalability. Conventional linear motion modules mainly rely on EtherCAT and PROFINET wired communication. Although these protocols satisfy high-precision synchronous control, they expose prominent practical pain points in scenarios featuring dynamic flexible line reconstruction, mobile tooling, distributed multi-axis linkage, and rapid iteration of modular stations. Cable wear in drag chains, wiring interference and high renovation costs have become key obstacles restricting the flexible upgrading of intelligent production lines.

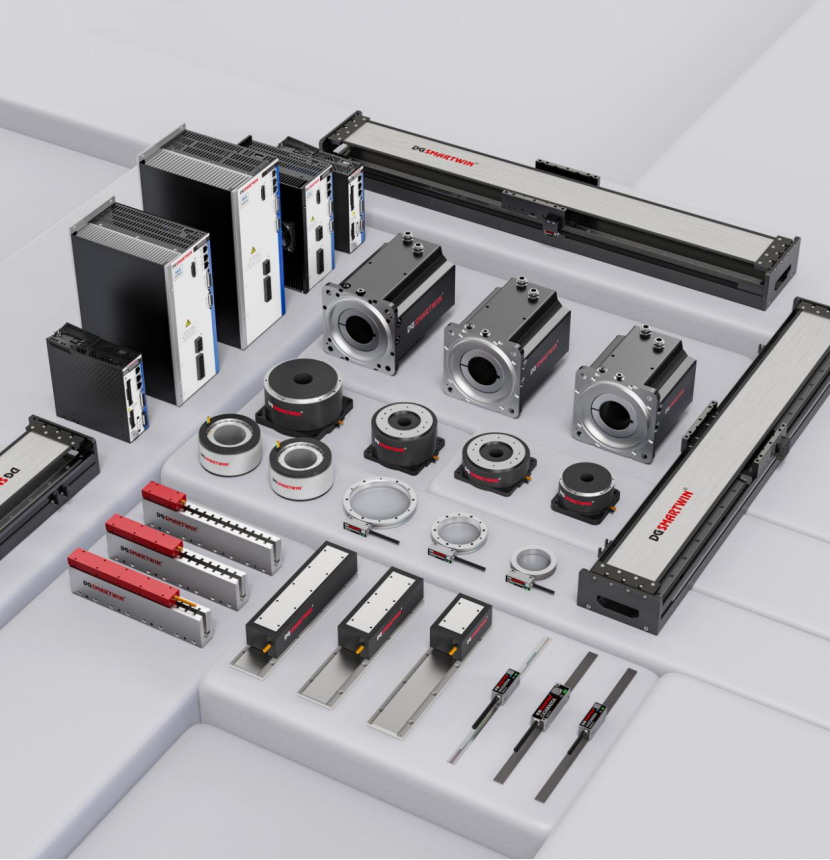

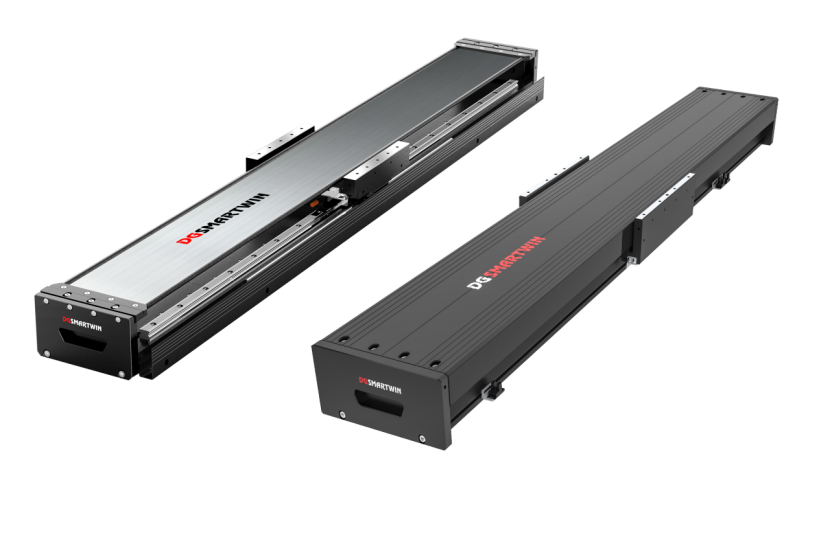

Leveraging the fully self-developed linear motor module platform(LMS/BMS series) and combining the low-latency, high-reliability and hard real-time transmission characteristics of industrial 5G, SMARTWIN Intelligent Equipment builds a 5G + direct-drive wireless precision motion control system. This innovative architecture effectively solves the engineering application limitations of traditional wired direct-drive solutions, delivering a new-generation linear motion solution with high precision, superior synchronization and dynamic networking capability.

Motion control systems impose extremely stringent requirements on communication latency, jitter and packet loss to achieve micron-level positioning. Conventional commercial 5G cannot satisfy the closed-loop demands of motion control. In contrast, industrial 5G private networks adopt network slicing, TSN time synchronization and ultra-low-latency scheduling technologies to deliver end-to-end hard real-time transmission, fully meeting the real-time indicators for full closed-loop control of linear motors. SMARTWIN Intelligent Equipment has completed industrial 5G protocol adaptation and optimization for AKS servo drives matched with LMS and BMS linear motor modules. It enables real-time wireless interaction of core control commands for the position loop, velocity loop and current loop as well as encoder feedback data. Without wired drag chains and fieldbus wiring, the multi-axis synchronization accuracy, repeat positioning accuracy and dynamic response characteristics are fully comparable to those of wired bus systems. The 5G wireless direct-drive architecture delivers disruptive advantages for the reconstruction of flexible intelligent manufacturing processes. Traditional wired modules feature fixed station layout and static network topology. Production line conversion, process upgrades and station expansion require rewiring and topology commissioning, resulting in lengthy downtime for modification. SMARTWIN linear motor modules based on industrial 5G networking support modular free layout, dynamic network reconfiguration and remote acceleration & deceleration parameters and station logic of modules according to work order cycles without modifying hardware wiring structures, drastically shortening production line iteration cycles. For discrete manufacturing scenarios including photovoltaic large-panel inspection, cross-process conveying for lithium batteries and multi-variety mixed assembly in 3C electronics, multiple linear modules operate in cluster coordination over the 5G private network to realize wide-range distributed high-precision synchronous motion, resolving engineering limitation on flexible layout inherent to traditional wired architectures.

In terms of equipment reliability and full-lifecycle operation & maintenance, industrial 5G enables complete data closed-loop for direct-drive equipment. Equipped with high-precision optical / magnetic encoders, SMARTWIN linear motor modules can collect multi-dimensional equipment status data in real time, including position deviation, dynamic load, winding temperature, guide rail vibration and operating speed. Such data is uploaded to industrial internet platforms and edge computing systems via the high-bandwidth and high-concurrency 5G channels.Relying on big data modeling and algorithm analysis, the system accurately identifies latent faults such as degraded guide rail lubrication, encoder signal drift, magnetic circuit performance fluctuation and abnormal load. It supports predictive maintenance and condition-based maintenance, thoroughly transforming the traditional maintenance mode of periodic inspection and breakdown repair, and effectively improving the overall equipment effectiveness (OEE) of production lines.

Meanwhile, 5G-enabled remote commissioning and cloud-based parameter optimization greatly cut after-sales and iteration costs of high-end equipment. Technical teams can remotely access servo systems via the industrial 5G private network to carry out three-loop parameter tuning, cogging force compensation, trajectory error correction and fault diagnosis, eliminating the need for on-site disassembly and commissioning.As a domestic supplier of integrated direct-drive solutions, SMARTWIN Intelligent Equipment achieves independent research and controllability across the whole chain covering linear modules, encoders, servo drives and 5G adaptation protocols. While guaranteeing micron-level precision motion performance of equipment, we leverage industrial 5G technology to realize the technical upgrade of direct-drive systems — shifting from simple "hardware execution" to an intelligent architecture featuring perception, controllability and remote scheduling. This facilitates flexible, digital and wireless transformation of intelligent manufacturing production lines.
