The Lifeline of Closed-Loop Control: How Smartwin Encoders Empower Industrial Upgrading of HighEnd Manufacturing

The Lifeline of Closed-Loop Control: How Smartwin Encoders Empower Industrial Upgrading of High-End Manufacturing

1. Understanding Closed-Loop Logic: Encoders as the Critical Carrier of Feedback Links

Modern high-precision servo equipment generally adopts a complete closed-loop control system, which consists of three major parts: controller, drive actuator and signal-feedback component. Encoders undertake the irreplaceable task of signal feedback within this systems,.

After the controller issues displacement and speed commands, the linear motor drives the slide to perform movements. The encoder collects actual displacement and rotational speed in real time and feeds data back to the driver for comparison. Whenever deviations occur between actual motion and set parameters, the control system immediately implements compensation adjustment to guarantee positioning accuracy. Without an encoder, the mechanism can only run according to present commands and cannot detect displacement variations caused by load fluctuation or guide-rail friction. Positioning accuracy will be completely out of control under high-speed and heavy-load conditions. Even for the identical linear motor, obvious differences in equipment running smoothness and repeat positioning accuracy will arise when paired with encoders of different quality. By conducting R&D on both motor modules and encoders simultaneously, Smartwin Intelligent Equipment realizes collaborative optimization between drive components and sensing parts, and reduces adaptation-related failures at the source.

2. Beyond Position Reading: Encoders as Data Sources for AI Predictive Maintenance

With continuous upgrading of high-end manufacturing, encoders deliver far more value than simple position reading. On AI-enabled smart production lines, linear motor modules cooperate with vision systems for dynamic following operations. AI algorithms require large volumes of real motion data for training as well as for predicting component wear and aging. Smartwin encoders continuously upload raw data including motion trajectory, start-stop shock, temperature and load. Based on such information, the upper-level management system establishes equipment health profiles and implements predictive maintenance, replacing the traditional “repair-after-failure” mode.

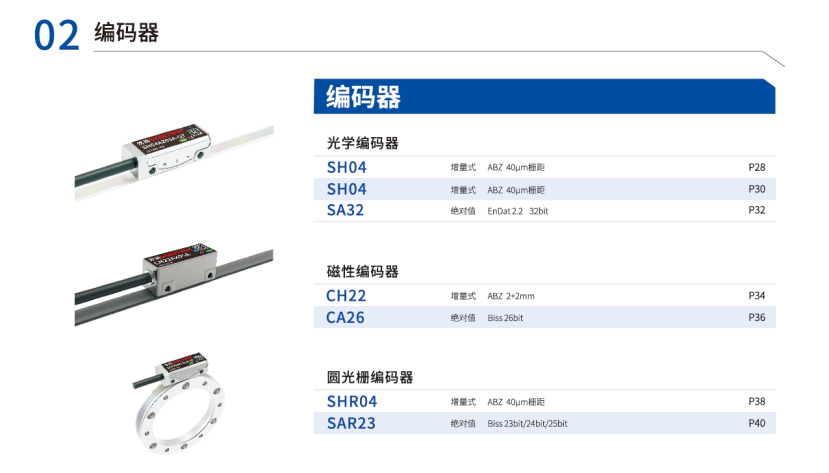

High sampling latency or severe signal jitter from encoders will deprive the entire intelligent maintenance system of reliable data foundations. To counter electromagnetic interference generated by frequency converters and highpower motors, Smartwin encoders adopt optimized shielding structures to avoid pulsesignal disorder. Tailored for the ultralongstroke and 5 m/s highspeed operating conditions of Smartwin BMS semienclosed linear motor modules, the encoders are specially optimized for long-distance transmission stability and mitigate position drift during longtravel operation. Smartwin encoder portfolio comprises SH and SA optical encoders, CH and CA magnetic encoders, as well as SHR and SAR rotary encoders. Absolutevalue models support BiSSC, EnDat2.2 and Tamagawa protocols, while rotary encoders reach 2325 bit resolution.

3. Dual Optical-Magnetic Technology Covering Diverse Industrial  Linear and Rotary Scenarios

Production workshops vary greatly in operating environments, and a single encoder type can hardly satisfy all working-condition requirements. Smartwin Intelligent Equipment develops both optical and magnetic encoders, together with rotary encoder product lines, to address demands for both linear motion and rotary measurement.

SH-series incremental optical encoders and SA-series absolute optical encoders adopt optical solutions with maximum resolution up to 0.1 um and favorable temperature adaptability. Featuring anti-contamination performance, SA-series models are well suited for dust-free semiconductor workshops and clean optical-inspection stations. CH22 incremental magnetic encoders and CA26 absolute magnetic encoders adopt high-performance soft-magnetic materials for enlarged installation clearance. Delivering outstanding dust-resistance and shock-resistance, they are ideal for harsh-environment workshops such as lithium-battery manufacturing and metal-processing sites.

SHR04 incremental rotary encoders and SAR23 absolute rotary encoders feature friction-free structure and large installation tolerance, targeting precision rotary-measurement applications in medical equipment and photovoltaic industries. The full product series is compatible with mainstream domestic and overseas motion controllers and has obtained CE and RoHS certifications.

4. Self-Developed Encoders Build Competitive Strength for Local DirectDrive Industry and Promote Sensing-Component Independence

Numerous enterprises in the industry are capable of assembling linear motor modules. Nevertheless, encoders are high-threshold precision sensors. Specifications including encoder resolution, response speed, shock-resistance  rating and temperature adaptability directly define the grade of complete equipment. During mass-volume production, the high procurement cost of imported encoders will squeeze profit margins for equipment manufacturers.

Smartwin Intelligent Equipment regards encoders as a core R&D segment and realizes integrated supporting of direct-drive modules, motors and encoders. As industrial automation keeps evolving toward higher speed, superior precision and intelligent operation-maintenance, the industrial value of encoders will keep increasing. Smartwin optimizes sensing hardware based on real-world end-user working-condition requirements, filling the sensor gap within the direct-drive industrial chain. The company delivers complete and reliable domestic motion-control components for semiconductor, new-energy and AI-driven smart-factory applications.
