New Ideas for Equipment R&D Component Selection: How Smartwin Integrated Linear Motor Modules and Encoders Avoid Detours

New Ideas for Equipment R&D Component Selection: How Smartwin Integrated Linear Motor Modules and Encoders Avoid Detours

1. Accelerated R&D Iteration of Equipment Brings New Practical Challenges for Component Selection

Iteration cycles within China’s automation-equipment industry keep accelerating. Renewal cycles for new-energy, semiconductor and optical-inspection equipment are getting shorter. The industry attaches greater importance to complete-machine stability, shortened R&D and commissioning cycles, component independence and controllability, as well as convenient after-sales maintenance. Many equipment R&D engineers tend to procure linear motor modules and encoders separately during project development. Although this approach seems to offer broader component options, various hidden risks often emerge in practical implementation.

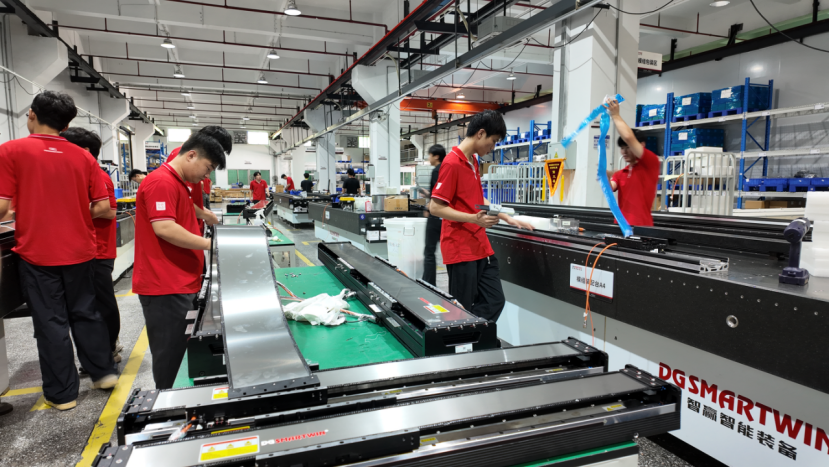

Hardware from different brands may suffer from signal-protocol mismatch, incompatible mounting references and difficult parameter matching, which extend commissioning periods. Once faults occur, module suppliers and encoder manufacturers tend to shift responsibilities to each other, resulting in low troubleshooting efficiency. Smartwin Intelligent Equipment independently develops and manufactures both linear motor modules and full-range encoders, eliminating cross-brand adaptation pain points at the source and providing an integrated component-selection solution for equipment development. The Smartwin BMS semi-enclosed linear motor module features a maximum standard stroke of 5788 mm, a maximum moving speed of 5 m/s, continuous thrust ranging from 65 N to 3839 N, and two size-15 heavyduty guide rails.

2. Comprehensive Hardware Capabilities of BMS Modules to Meet Basic Motion Requirements for Multiple Equipment Projects

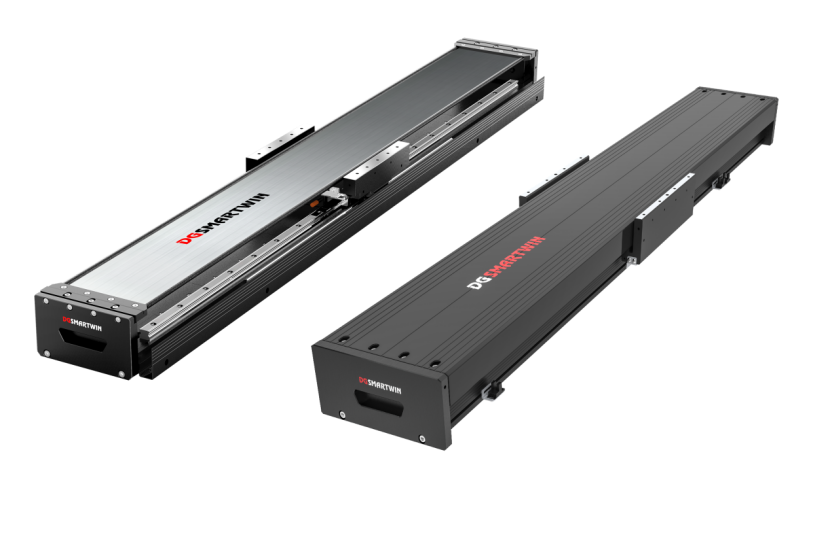

Adopting a direct-drive structure, the Smartwin BMS semi-enclosed linear motor module removes intermediate transmission components such as ball screws and timing belts, delivering zero mechanical backlash. It responds rapidly to control-system commands and adopts to process scenarios including AI vision following and high-frequency multi-station switching.

The semi-closed housing balances dust-proof performance and heat dissipation. Equipped with an external centralized grease filling port, the module can be maintained without complete disassembly. Pre-calibrated for low-noise and low-dust performance before delivery, it satisfies environmental requirements for lithium-battery clean-room workshops and optical-inspection stations.

As an original-equipment manufacturer, Smartwin support project-oriented customization. BMS module specifications can be adjusted according to equipment internal mounting dimensions, load-acceleration indexes and special dust-proof & protection requirements. Communication interfaces are compatible with mainstream industrial buses, lowering secondary-modification costs for equipment engineers and matching the rhythm of rapid prototyping and iterative development for new projects.

3. Native Encoder Matching: Mitigate Commissioning Risks at Source and Guarantee Closed-Loop System Reliability

Smartwin Intelligent Equipment offers a complete encoder product portfolio, including SH and SA optical encoders, CH22 and CA26 magnetic encoders, as well as SHR04 and SAR23 rotary encoders. All units are pre-matched and calibrated with BMS semi-enclosed linear motor modules before delivery. Encoder resolution ranges from 0.1 um to 1 um. Absolute-value models support mainstream industrial protocols such as EnDat2.2, BiSS-C and Tamagawa. Compact in size and equipped with LED status indicators, they facilitate testing and commissioning during the R&D phase. The full product range has obtained CE and RoHS certifications.

For the 5 m/s high-speed long-travel operating conditions of BMS modules, optical encoders deliver stable position feedback for linear motion. Magnetic encoders are capable of high-frequency reciprocating sampling over millions of cycles. Position, temperature and vibration data output by encoders can be transmitted to the equipment control system for wear analysis to realize predictive maintenance. For rotary-station equipment, rotary encoders can be deployed for angle acquisition. This integrated combination saves engineers substantial time on signal matching and greatly shortens prototype commissioning cycles.

4. Integrated Domestic Component Selection: Helping Equipment Enterprises Reduce Costs and Secure Supply-Chain Safety

Separate procurement of imported modules and imported encoders not only keeps procurement costs high, but also exposes users to fluctuating lead-times and supply-chain risks. Smartwin Intelligent Equipment provides one-stop supply of BMS semi-enclosed linear motor modules and self-developed encoders, with unified technical interface and after-sales support. Clear fault-location capability avoids responsibility shifting among multiple suppliers.

For equipment R&D enterprises, integrated component selection is more than simple parts bundling. It represents a complete solution with collaboratively verified actuation hardware and sensing feedback units. Based on real-world operating conditions of domestic equipment development, Smartwin delivers fully-validated complete sets of domestic motion-control components for new-energy, semiconductor and 3C precision-equipment industries. It helps equipment manufacturers shorten development cycles and enhance supply-chain independence and controllability.
