In-depth Integration of 5G and Digitalization: SMARTWIN Linear Motor Modules Build Intelligent Motion Control Systems

In-depth Integration of 5G and Digitalization: SMARTWIN Linear Motor Modules Build Intelligent Motion Control Systems

High-end manufacturing is currently evolving from standalone equipment automation and production line digitalization to a new stage of smart factories featuring virtual-physical integration, full-domain collaboration and predictive controllability. As the core transmission infrastructure of the industrial internet, industrial 5G, combined with digital twin technology, enables full-dimensional virtual mapping and reverse closed-loop regulation of physical equipment, data links and control logic. To address the common industry pain points of traditional linear motor modules - including opaque operating status, high trajectory debugging costs, unpredictable dynamic errors, and difficult cluster equipment management - SMARTWIN Intelligent Equipment deeply integrates 5G real-time transmission and digital twin simulation technologies based on self-developed integrated LMS and BMS linear motor modules. It establishes a closed-loop system of physical equipment - 5G data transmission - virtual simulation - intelligent regulation, enabling visualized preview, performance optimization and self-healing capabilities for precision linear motion systems.

The hard real-time and highly reliable transmission capabilities of industrial 5G serve as the core prerequisite for high-precision mapping of direct-drive equipment via digital twin technology. During operation, SMARTWIN linear motor modules adopt the fully closed-loop encoder feedback system and AKS servo drives to continuously collect multi-dimensional status parameters, including full-travel position data, dynamic velocity curves, load torque, motor temperature rise and structural vibration. Relying on the 5G-TSN time synchronization mechanism, millisecond-level synchronized uploading of full-domain data to the cloud is realized, supporting 1:1 reproduction of equipment posture, motion trajectory simulation and structural deformation simulation within the virtual space. Compared with conventional offline data acquisition methods, high-speed concurrent transmission over 5G eliminates data delay and distortion. It accurately restores subtle operating characteristics such as deflection deformation of long-travel modules during high-speed reciprocating movement, impact during rapid acceleration & deceleration, and micro positioning deviation. This thoroughly eliminates blind spots in equipment management, namely "unobservable operation, undetectable deviation and unknown hidden risks".In terms of process development and equipment commissioning, the 5G + digital twin model enables advance simulation, virtual commissioning and trial-error-free mass production. The introduction of new processes and multi-axis linkage commissioning for traditional linear motor modules rely on repeated trial runs on physical equipment. This not only extends the commissioning cycle, but also brings risks such as trajectory interference, tooling collision and excessive positioning error.Based on the digital twin virtual platform, users can complete travel planning for SMARTWIN linear motor modules, acceleration & deceleration curve optimization, multi-axis linkage interference detection and simulation under extreme load conditions in advance. AI algorithms iterate to generate optimal motion control parameters. After verification, parameters can be one-click distributed to on-site servo systems through the industrial 5G private network for direct mass production deployment.This mode drastically cuts equipment trial-and-error costs and new product introduction cycles. It is especially suitable for high-precision and high-value process scenarios such as semiconductor precision inspection, laser micro-processing and high-end optical alignment.

In terms of intelligent management and control of equipment clusters, supported by the massive connection capability of 5G, twin monitoring and collaborative scheduling of linear motor module clusters across entire production lines and factories can be realized. The system conducts real-time analysis of cycle bottlenecks of individual modules, load balance of the whole line and equipment energy efficiency loss, and dynamically optimizes the motion timing of each station to improve the production balance rate of the whole production line.Meanwhile, the platform continuously accumulates equipment operation data, parameter archives, fault logs and maintenance records, and establishes full-lifecycle digital archives for each unit. It provides authentic operating condition data to support structural optimization, magnetic circuit iteration and process upgrading, and in turn drives continuous iteration on hardware and control algorithms of linear motor modules.

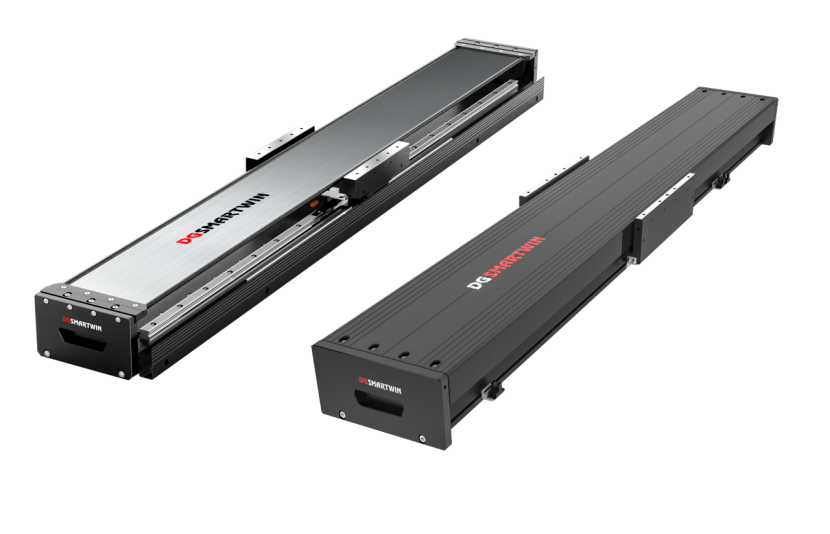

Leveraging a fully self-developed domestic direct-drive ecosystem, SMARTWIN Intelligent Equipment linear motor modules feature native compatibility with industrial 5G and digital twin industrial architectures. The products retain core hardware strengths including zero-backlash direct drive, high torque density, low cogging ripple and high rigidity for long strokes, while making up for deficiencies in intelligent regulation via digital technologies.Amid the trend of developing new quality productive forces in the industry, 5G + digital twin technology is far more than a simple data visualization tool. It serves as the core technical foundation enabling high-end direct-drive equipment to realize adaptive control, predictive maintenance, flexible production and cluster collaborative scheduling. The solution continuously advances domestic precision linear motion systems toward higher precision, superior reliability, full intelligence and manageable performance. It accelerates the localization and intelligent upgrading of high-end automation equipment.
