SMARTWIN DH05 Series: Core Precision Power for High-End Manufacturing
SMARTWIN DH05 Series: Core Precision Power for High-End Manufacturing
In the field of high-end manufacturing, the motor serves as the “heart” of equipment, directly determining production precision, efficiency and stability. The DH05 series modular torque motor launched by Dongguan SMARTWIN Intelligent Equipment Co., Ltd. stands out with its modular design, exceptional torque performance and precise control capability, making it the core driving force for high-end manufacturing upgrading. It provides efficient and reliable power solutions for automated equipment, precision machining and other high-end fields.
The core competitiveness of the DH05 series lies in its standardized modular architecture, optimized around “flexible adaptability”. With a clear ordering code system, it supports fast combination and configuration according to equipment load, installation space, control accuracy and other requirements, greatly shortening the selection cycle and reducing customization costs. Continuing the company’s miniaturization technical advantages, the series features a 138 mm frame size that can be embedded into compact spaces. Paired with standardized connectors and flexible cable routing solutions, it enables “plug-and-play” for single-machine replacement and mass production line upgrading, improving the flexibility and scalability of manufacturing processes.

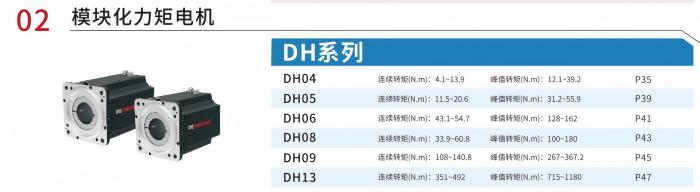

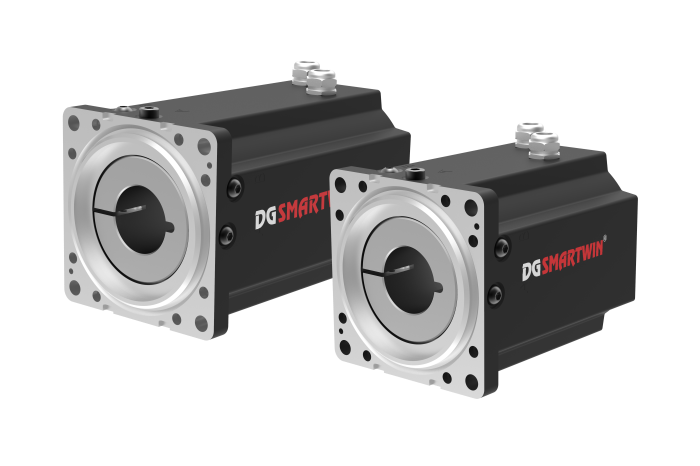

Through optimized electromagnetic design and material processing, the DH05 series delivers outstanding core performance. The series includes two models: DH051 and DH053, suitable for medium-low load and medium-high load scenarios respectively. Continuous torque ranges from 11.5 Nm to 20.6 Nm, with peak torque reaching 31.2 Nm to 55.9 Nm. Its characteristic of high output with low power consumption reduces thermal attenuation and ensures long-term stable operation.
Equipped with an absolute encoder, combined with a high torque constant and low moment of inertia design, the motor achieves precise regulation of speed and torque. The speed range covers 1500–3000 rpm, minimizing vibration and noise during operation, and supporting micron-level machining accuracy.
Multi-Scene Adaptability: Empowering the Full Spectrum of High-End Manufacturing
In precision machine tools, its precise control and stable torque guarantee machining accuracy, making it ideal for high-end component processing.
In automated assembly lines, its compact size and low power consumption fit space-constrained layouts, improving production efficiency and space utilization.
In robotics applications, low moment of inertia and high dynamic response enhance the smoothness of joint motion, perfectly matching precision grasping scenarios.
In semiconductor equipment, high stability and protective performance resist complex workshop environments, ensuring the continuity of processes such as wafer handling.
Conclusion
The DH05 series modular torque motor redefines power standards for high-end manufacturing with its modular design, superior performance and versatile adaptability, providing practical support for enterprises to reduce costs, improve efficiency and enhance precision.
The DH05 series realizes the value of “one product, multi-scene adaptation”. It not only fills the segment gap in medium and small-load modular direct drive, but also complements other product lines of SMARTWIN, demonstrating the technical strength of a national-level “Little Giant” enterprise specializing in sophisticated, unique, innovative and growing fields. It injects precise and reliable power into the intelligent upgrading of high-end manufacturing.
