Full Domestic Ecosystem Manufacturer: SMARTWIN Linear Motor Modules Accelerate General Automation Equipment Upgrade

Full Domestic Ecosystem Manufacturer: SMARTWIN Linear Motor Modules Accelerate General Automation Equipment Upgrade

General automation machinery is undergoing comprehensive upgrading. Conventional transmission modules can hardly meet new production modes featuring flexible mixed manufacturing, long-travel synchronized motion and micron-level precision positioning, making linear motor modules the preferred core component for equipment renovation. As a domestic enterprise specializing in the R&D and manufacturing of linear motor modules, SMARTWIN Intelligent Equipment has built a complete product portfolio of integrated linear modules. Combining core direct-drive technology, modular structural design and a full domestic motion control ecosystem, we deliver mature, reliable localized linear motion solutions for general automation equipment.

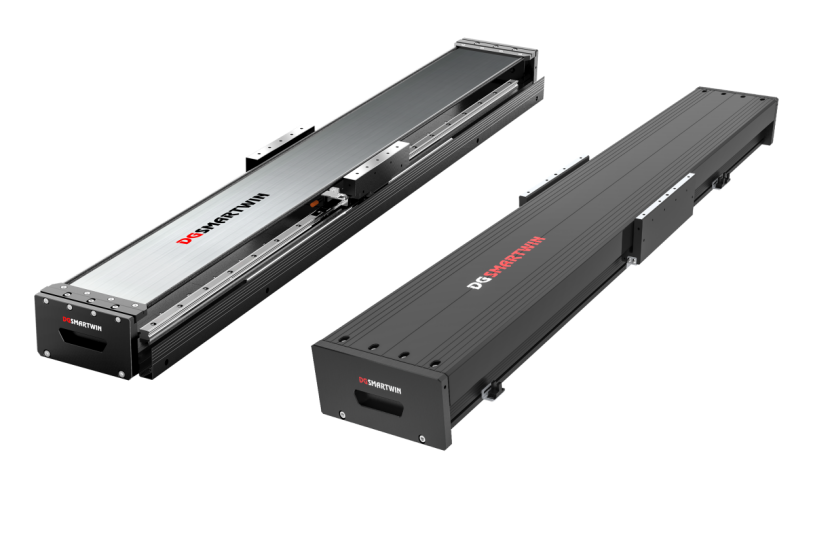

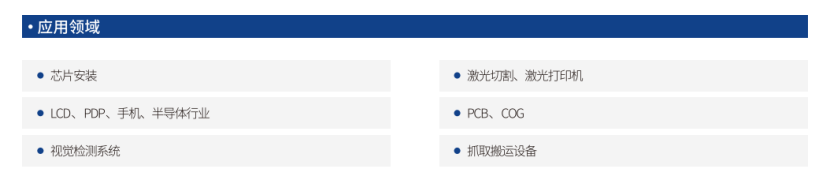

Different from scattered assembled linear motor solutions, SMARTWIN integrated linear motor modules highly integrate linear mover & stator, precision linear guide rails, protective sheet metal, lubrication systems and linear scale mounting references into standardized finished units. This effectively avoids common defects arising from self-assembly, such as parallelism deviation, high-speed resonance and inconsistent precision. Optimized magnetic circuit design suppresses cogging effect to ensure smooth operation across the full travel range. The rigid guide rail layout stabilizes high-speed long-stroke movement and minimizes deflection deformation, maintaining steady positioning accuracy over the entire stroke. The direct-drive architecture delivers ultra-high acceleration and deceleration performance, greatly shortening station switching cycles and boosting overall line throughout. It fits a wide range of general automated production lines including photovoltaic string welding, lithium battery inspection, PCB processing and packaging automation.

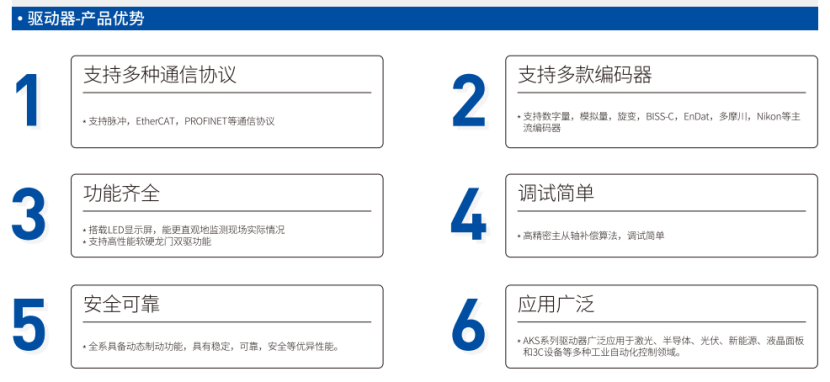

In terms of digital compatibility, the module can be equipped with absolute linear encoders featuring power-off position memory. No homing routine is required after equipment restart, drastically cutting changeover standby time for flexible production lines. The EtherCAT bus version supports multi-axis synchronous linkage to safety complex process demands such as multi-head synchronized handling and continuous machining. Paired with SMARTWIN AKS servo drives with built-in auto-tuning algorithms, dynamic parameter matching can be completed rapidly and lower on-site commissioning barriers. Adopting a low-noise, low-dust structural design, it adapts to long-term continuous production in workshops. The external centralized lubrication structure simplifies maintenance and significantly reduces line downtime & maintenance costs.

The complete module adopts fully domestically self-developed and matched components covering motors, guide rails, linear encoders and servo drives across the whole chain. It breaks free from supply restrictions of imported core parts, enabling controllable lead times and costs for bulk orders.Certified compliant with CE and RoHS standards, the product undergoes full-process industrial-grade quality control testing to adapt to working conditions of mainstream domestic automated production lines. SMARTWIN Intelligent Equipment delivers localized technical support to assist machinery manufacturers with mechanical integration and bus network commissioning, catering to both mass supply of standard models and small-batch non-standard customization requirements. As a domestically manufactured integrated linear motor module solution, it optimizes the overall cost structure while meeting all performance specifications. It accelerates the upgrade of transmission schemes for general automation equipment and fuels high-quality development of China’s general automation industry.
