DGSMARTWIN Iron-Core Linear Motor Series: Full-Chain Strength Empowers Automation Build A Domestic Direct Drive Benchmark

DGSMARTWIN Iron-Core Linear Motors: Empowering Automation with Full-Chain Strength, Forging a National Benchmark in Direct Drive.

Based on the stringent demands of current automated manufacturing, DGSMARTWIN iron-core linear motors address industry pain points precisely with core technological advantage, making them the preferred power solution for high-end manufacturing. As a leader in domestic direct-drive technology, DGSMARTWIN leverages full-chain independent R&D, large-scale production, cost-effective products and rapid after-sales support to maximize the performance and value of its iron-core linear motors. They not only meet the diverse needs of current automated production lines, but also help domestic equipment break through technical bottlenecks and achieve self-reliance in core components.

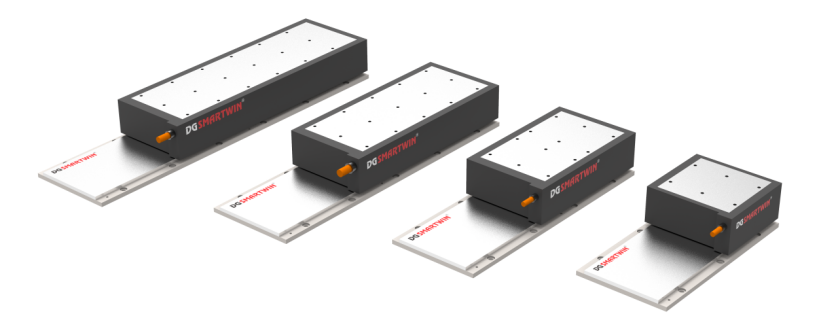

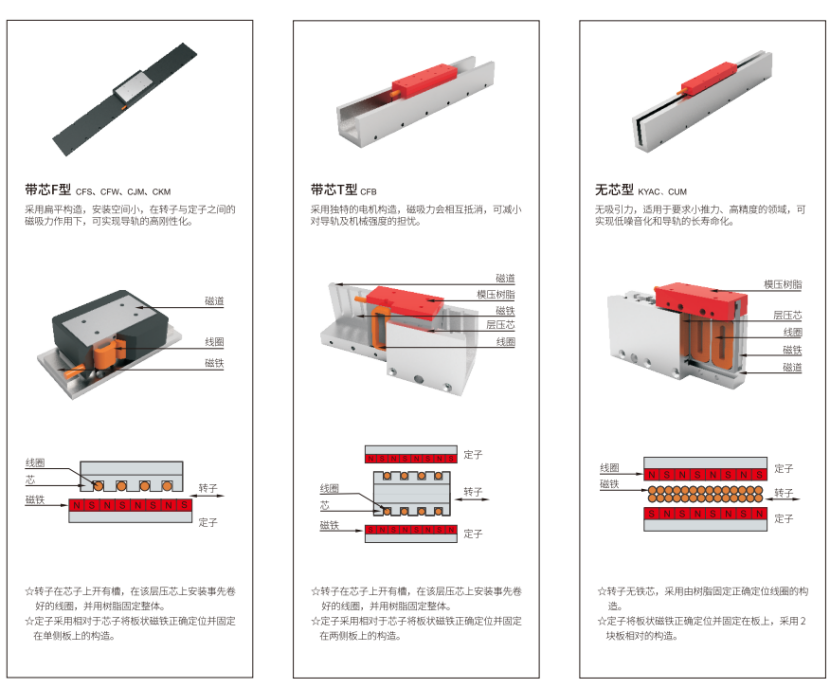

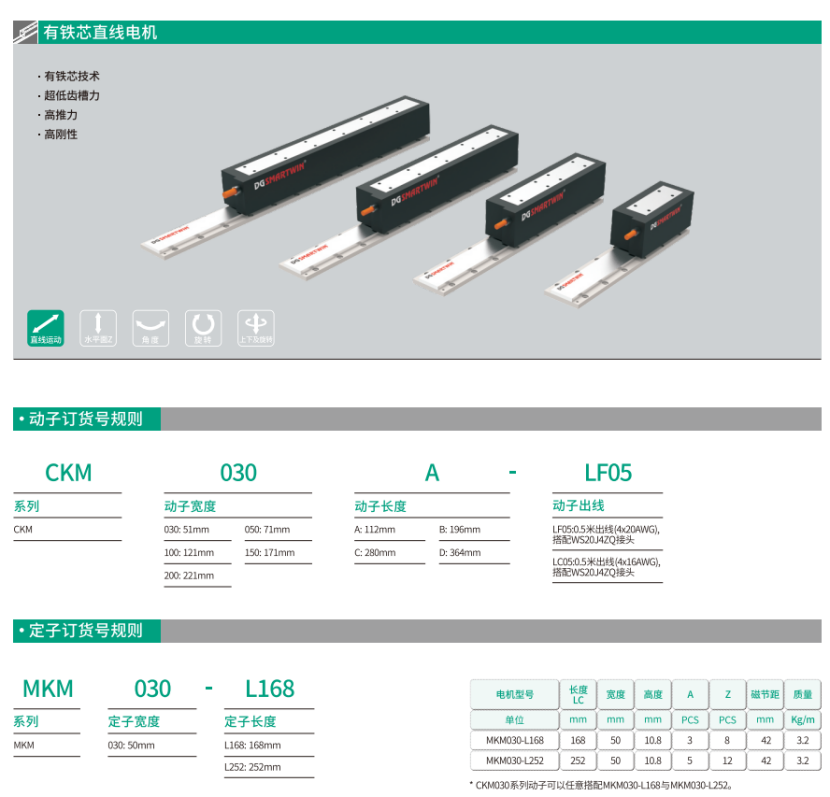

DGSMARTWIN iron-core linear motors adopt the classic structure of laminated iron cores with coil winding. Leveraging optimized magnetic circuit design, they maximize magnetic field utilization and achieve industry-leading thrust density. Among them, the CKM series delivers a maximum continuous thrust of 4827N and a peak thrust up to 12806 N, with exceptional rigidity, making them ideal for heavy-duty applications such as new energy battery electrode sheet handling and laser cutting of large workpieces. Through optimized magnetic field distribution and improved cogging structure, the motors feature ultra- low cogging force, effectively reducing thrust ripple and ensure smooth, stable low-speed operation. Meanwhile, the iron-core structure provides excellent heat dissipation performance. Combined with rational winding arrangement, it maintains stable temperature control even under long-term high-intensity operation, guaranteeing continuous and efficient production line performance. The flat, compact design, together with standardized mounting holes, allowing the stator to be freely spliced for unlimited stroke, adapting to various equipment layouts. This greatly simplifies mechanical design and assembly, facilitating the the integrated upgrading of automated equipment.

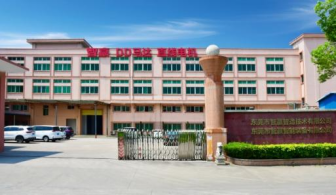

What enhances its market competitiveness further is that relying on localized large-scale production and full-chain independent R&D capabilities, SMARTWIN has enabled its iron-core linear motors to match the performance of top international mid-to-high-end brands while offering a more favorable price. This provides domestic equipment manufacturers with a cost-effective alternative to imported products. The company has built its own modern production base equipped with high-precision processing equipment and a full-process quality control system. From core lamination and coil winding to complete machine assembly and performance testing, every step is independently controlled. This not only ensures product consistency and reliability but also effectively reduces costs through mass production, making high-end direct-drive technology accessible.

Facing the future development trends of flexible, intelligent and integrated intelligent manufacturing, DGSMARTWIN iron-core linear motors boast strong adaptability and forward-looking capabilities backed by the company’s solid strength. DGSMARTWIN has established a full-chain technology closed loop covering “motor – drive – control”and holds more than 100 core patents. It can provide a full-specification product matrix and personalized customized services according to customer needs, quickly adapting to multi-variety, small-batch flexible production models. The modular design offers a wide selection of mover and stator specifications, catering to diverse load, speed and precision requirements, and supporting the highly integrated and lightweight upgrading of equipment.

As a leader in domestic direct-drive technology, DGSMARTWIN’s core strength lies not in its products, but also in its comprehensive full-process service system. Our company has established a 24-hour rapid-response after-sales mechanism with local technical teams across the country, providing one-stop service including on-site commissioning, troubleshooting, and technical training. From precise selection in the early stage, efficient integration in the medium term, to operation and maintenance optimization in the later stage, the whole process ensures stable equipment operation and greatly shortens problem resolution time for customers. With more than ten years of deep industry experience, DGSMARTWIN iron-core linear motors have been widely used in semiconductors, lithium batteries, photovaltaics, precision machine tools and other fields, recognized by numerous leading enterprise, and have become a core force for the independence and control of domestic direct-drive technology. At this critical stage of automated manufacturing upgrading and intelligent manufacturing implementation, DGSMARTWIN will continue to be driven by technological innovation, supported by large-scale production, and guaranteed by high-quality services. We will continuously iterate iron-core flt motor technology, inject strong momentum into China’s high-end manufacturing, help enterprises break through oversea technological monopolies, forge a new benchmark for domestic direct drive with solid strength, and lead the high-quality development of precision intelligent manufacturing in the future.
