DGSMARTWIN LMS99 Linear Motor Module--High Speed & Accuracy: Ideal for 3C Electronics, Inspection and Assembly

DGSMARTWIN LMS99 Linear Motor Module: High Speed & Accuracy, Ideal for 3C electronics, inspection and assembly.

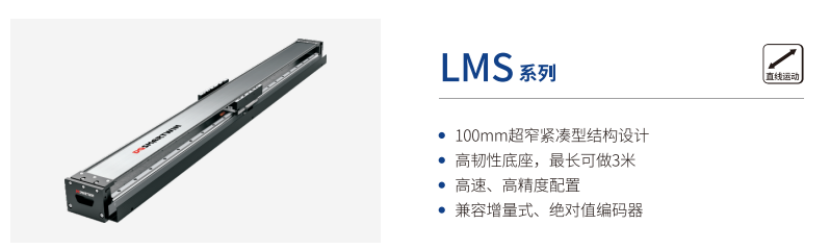

In cost and efficiency-sensitive scenarios such as 3C electronics, precision inspection and compact automated assembly, a stable and easily integrated linear module serves as the core driver for production line upgrading. The LMS99 series linear motor module launched by DGSMARTWIN adopts a semi-enclosed structure, accurately meeting the motion requirements of light and medium loads, and delivering a cost-effective integrated solution for general automation application.

The core advantage of the LMS99 series lies in its optimal adaptation to light and medium load scenarios. Adopting a semi-enclosed structure, the module balances lightweight design and high rigidity while meeting the protection requirements of standard clean workshops. Equipped with 15-2 high-precision linear guides, it effectively suppresses vibration and deformation during high-speed operation, ensuring long-term precision and stability. In term of core parameters, the LMS99 series features a maximum standard stroke of 2890mm and a top running speed of 5m/s, with continuous motor thrust ranging from 48N to 193N. It perfectly meets the motion demands of light-to medium load and medium-to long stroke applications, including 3C electronics component handing, visual inspection platforms, and small automated assembly. The series satisfies high-cycle production and maintains micron-level repeat positioning accuracy through precise thrust control.

In terms of engineering design, the LMS99 series fully considers the convenience of equipment integration. The module adopts an integrated aluminum alloy base, and the external mounting hole design simplifies the assembly process, enabling quick installation without complex tooling and greatly shortening the equipment commissioning cycle. At the same time, it is compatible with a variety of encoder solutions, which can be flexibly configured according to customer’s precision requirements and budgets, adapting to different levels of automated production lines, and truly realizing “selection on demand, cost reduction and efficiency improvement”. Compared with traditional ball screw modules, the linear motor’s non-mechanical contact transmission feature completely eliminates problems such as screw wear and backlash, greatly improving the module’s MTBF (Mean Time Between Failures), reducing maintenance costs, and bringing customers a full-life-cycle cost advantage.

From the perspective of application scenarios, the adaptability of the LMS99 series linear motor module covers multiple high-value fields: In the 3C electronics industry, it can be used in processes such as mobile phone screen lamination and chip packaging testing, ensuring product yield through high-speed and high-precision motion. In the precision inspection field, it can serve as the drive axis of visual inspection platforms to realize long-stroke and high repeat positioning accuracy inspection operations. In the automated assembly industry, it can be used for high-speed handling and assembly of small components, improving the level of production line automation. As a benchmark product developed by SMARTWIN for light and medium load scenarios, the LMS99 series takes "high cost performance, high reliability and easy integration" as its core, providing a one-stop solution for precision motion scenarios with light and medium loads.

Whether it is equipment integrators building standardized automated equipment or terminal factories upgrading production lines, the LMS99 series can become a reliable partner for the efficient operation of customers' production lines with its mature technology and stable performance.
