DGSMARTWIN CFW Iron-Core Linear Motor: Precision Power Adaptation Expert with Flat Structure

DGSMARTWIN CFW Iron-Core Linear Motor: Precision Power Adaptation Expert with Flat Structure

Amid the wave of precision manufacturing and automation upgrading, linear motors, as the core components of drive systems, are redefining the power boundaries of industrial equipment with their non-contact, high-response and long-service-life characteristics.

The DGSMARTWIN CFW series iron-core linear motor is a benchmark product in this field. Featuring a flat and compact structure design and strong, stable power output, it has become the "power adaptation expert" for high-precision equipment scenarios, providing efficient and precise solutions for industries including semiconductors, laser chamfering/cutting, and automated inspection.

CFW Series，The magnetic attraction between the forcer and the stator achieves high rigidity for the guide rail, ensuring stable operation without additional reinforcing structures.

In terms of power output:

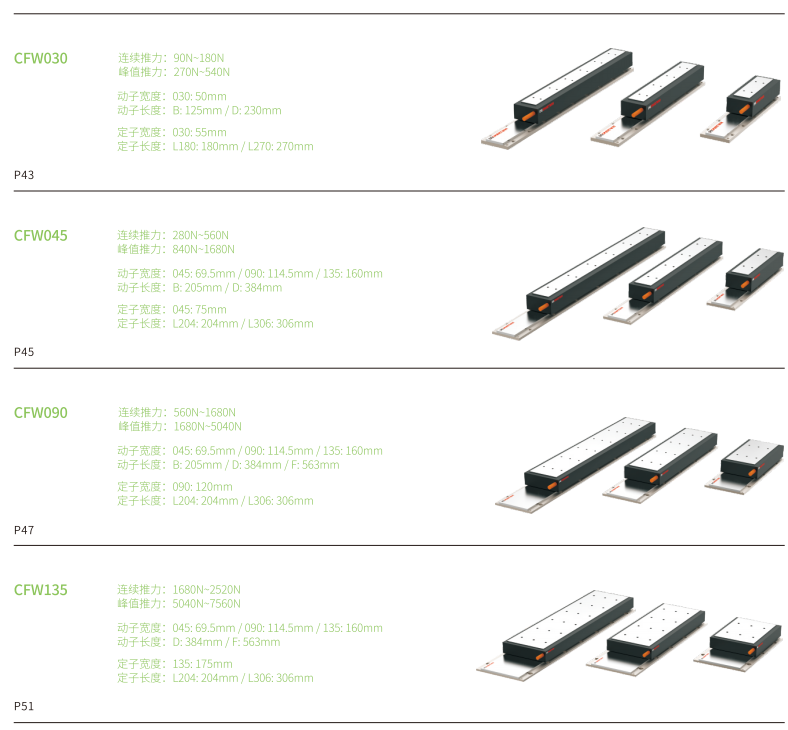

·  Continuous thrust of this series ranges from 0 N to 2520 N, with peak thrust from 270 N to 7560 N.

·  The stator adopts a modular design: stator length ranges from 180 mm to 306 mm. The magnetic pole pitch of CFW030 is 30 mm, while that of CFW045, CFW090 and CFW135 is 51 mm. They can be flexibly spliced according to travel requirements to meet the stability demands of precision operations.

DGSMARTWIN CFW Series Iron-Core Linear Motors offer far more than just stacked performance parameters.As a Precision Power Adaptation Expert, they deliver customized motion solutions tailored to pain points across diverse industries.The superior performance of the CFW Series has been proven in numerous industries with stringent precision requirements.

1. Semiconductor AOI Inspection

·  Application structure: Linear motor XY axis + DD motor R axis

·  Core value: Repeat positioning accuracy up to ±0.5 μm, positioning accuracy up to ±1 μm, compatible with both point-to-point and line-scan applications

2. Laser Cutting / Chamfering

·  Application structure: Granite platform XYY configuration, interpolated synchronous control

·  Core value: Repeatability ±1 μm, positioning accuracy ±2 μm, straightness ±3 μm, perpendicularity ±5 μm. Ensures contour accuracy and surface quality in laser processing, meeting the machining requirements of precision hardware and electronic components.

DGSMARTWIN CFW Series iron-core linear motors, with their outstanding performance, are becoming the "heart" of numerous high-end equipment.In the future, with the further advancement of intelligent manufacturing, DGSMARTWIN will continue to take technological innovation as the driving force, and provide more compact, powerful and precise motion solutions to empower China’s manufacturing industry to march toward a higher level.
