DGSMARTWIN CJM Iron-Core Linear Motor: A Precision Drive Solution for Medium–Heavy Load & Long-Stroke Automation

In medium-heavy load and long-stroke automation scenarios, sustained thrust output and stroke adaptability are the key challenges. Traditional iron-core linear motors often suffer from thrust attenuation and precision degradation over long strokes.

Addressing these demands, DGSMARTWIN CJM iron-core linear motors feature high thrust density and stable performance over long strokes, making them ideal precision drive solutions for new energy applications and large machine tool processing.

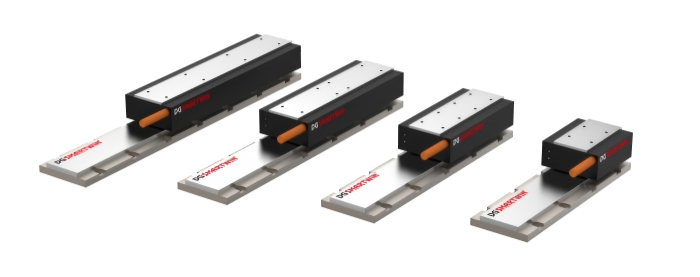

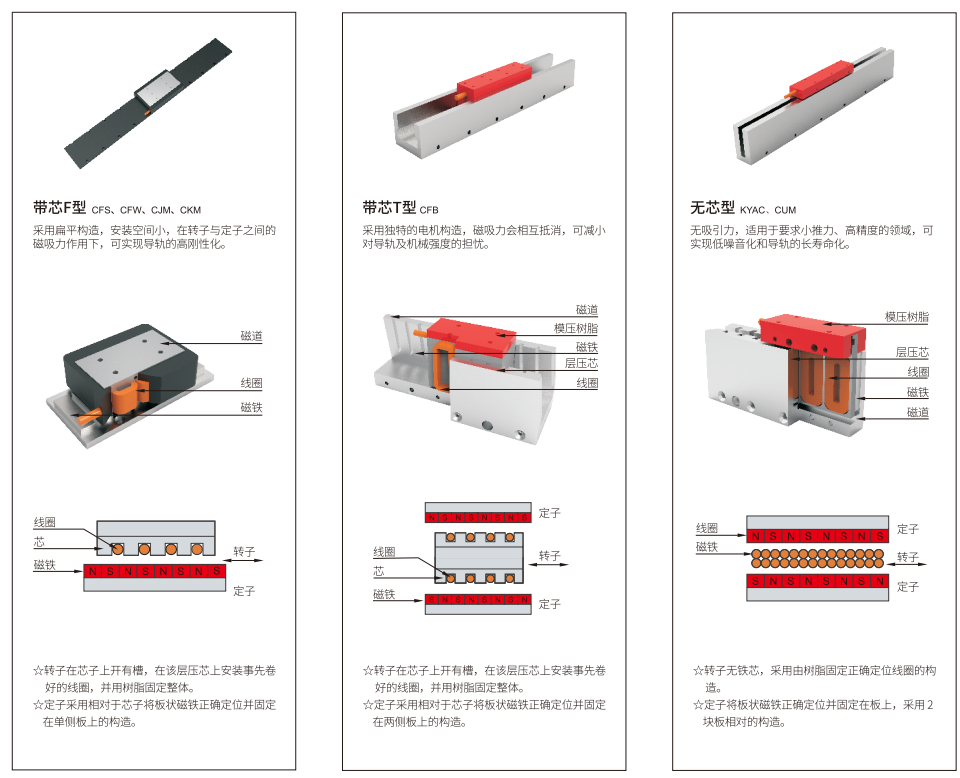

DGSMARTWIN CJM Series iron-core linear motors feature structural optimizations based on traditional iron-core motors, with a more compact and ultra-slim design.

·  The mover length ranges from 96 mm to 176 mm, adapting to various load requirements.

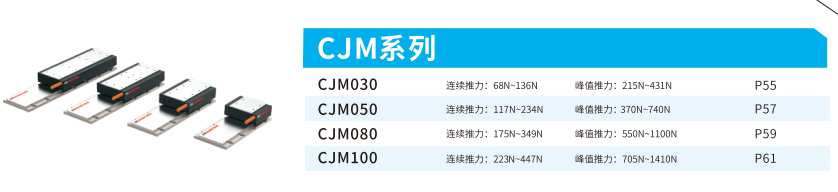

·  In terms of power output, the series offers a continuous thrust from 68 N to 447 N and a peak thrust from 215 N to 1410 N.The stator adopts a modular design with widths of 50 mm / 75 mm / 100 mm / 125 mm and a magnetic pole pitch of 20 mm, allowing flexible splicing based on stroke demands.

Core Features:Adopting iron-core technology, the motor features low cogging force, paired with an ultra-thin, ultra-short compact size.It enables high acceleration response, suitable for high-speed, high-precision equipment operation in limited spaces, and meets the requirements of rapid positioning and high-frequency motion for small precision equipment.

Core Advantages：Compared with similar iron-core linear motors, it achieves high acceleration performance in an ultra-compact size (ultra-thin & ultra-short). With low cogging force, it ensures smooth operation and stronger installation adaptability, precisely matching small-space, high-precision and high-speed working conditions.

It is ideal for compact-space & high-response applications such as 3C electronic small parts assembly, micro-component precision inspection, and semiconductor small workpiece handling, making it the preferred solution for small precision automation equipment.

Application Cases

3C Electronics：Micro connector assembly, small SMT mounters

Micro Components：MEMS sensor assembly, chip component inspection

Semiconductor：Small wafer handling, chip pin inspection

Powerful performance in a compact form;Industry benchmarks built on precision.DGSMARTWIN CJM Series Iron-Core Linear Motorsare more than a new-generation power solution —they are a reliable partner for high-end equipment upgrading.DGSMARTWIN remains committed to technological innovation,continuously creating value for customersand empowering China’s manufacturing industryto forge steadily ahead into the world’s high-precision and high-end sectors.
