Semiconductor and Precision Inspection Equipment: High-Accuracy Rotary Direct-Drive Enabled by Smartwin DD Motors

Semiconductor and Precision Inspection Equipment: High-Accuracy Rotary Direct-Drive Enabled by Smartwin DD Motors

1.Upgrade of Precision Equipment: Rotary Direct-Drive Becomes Critical Hardware for Inspection Stations

Semiconductor chip packaging, wafer inspection and optical precision-inspection equipment impose extremely high requirements on angular positioning, repeat positioning and dynamic response of rotary mechanisms. For conventional motor-plus-reducer solutions, gear clearance introduces angular errors. Errors keep accumulating after repeated reciprocating rotation, which easily leads to missed inspections and misjudgment of workpieces.

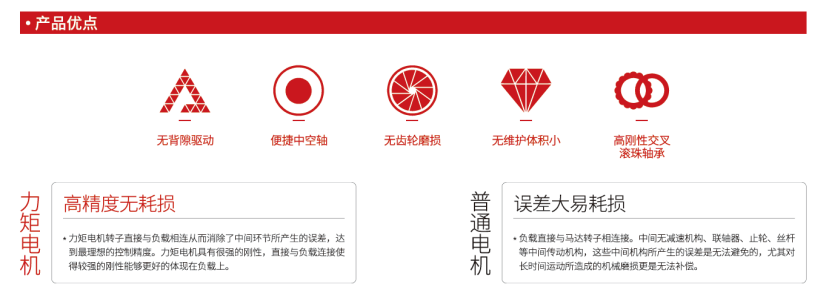

With the rapid development of domestic semiconductor and optical-inspection industries, equipment manufacturers have growing demand for domestically produced high-accuracy DD motors. Featuring direct-drive design with zero gear transmission backlash, DD motors deliver stable angular positioning. They are well-suited for precision rotary stations such as wafer rotary tables and optical scanning platforms, supporting stable output process for high-end inspection equipment.

2. High Response and Low Jitter to Meet Dynamic Processes of Precision Inspection

Dynamic AI vision follow-up inspection requires rotary mechanisms to deliver rapid start-stop performance and minimal jitter. Traditional transmission structures generate instantaneous impact and jitter caused by gear backlash during start and stop, seriously interfering with image acquisition accuracy.

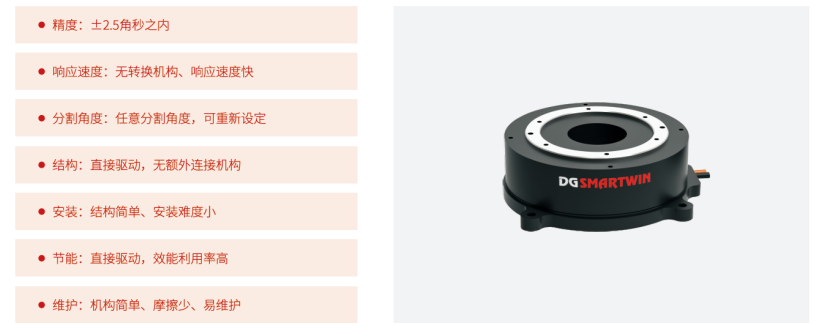

Adopting a pure direct`-drive structure, Smartwin DD motors feature ultra-fast torque response, negligible start-stop impact and strictly controlled operational jitter. Matched with high-resolution encoders, the system achieves high-precision angle feedback and effectively suppresses angular drift during rotation. It maintains consistent positioning accuracy during long-tour continuous inspection operations, ensuring reliable detection results for wafers and optical workpieces. Optimized for the complex electromagnetic environment of semiconductor workshops, the electrical system of DD motors adopts enhanced anti-interference design to eliminate disturbances from external electromagnetic signals.

3. Flexible Configuration Adapted to Compact-Design Trend of Precision Equipment

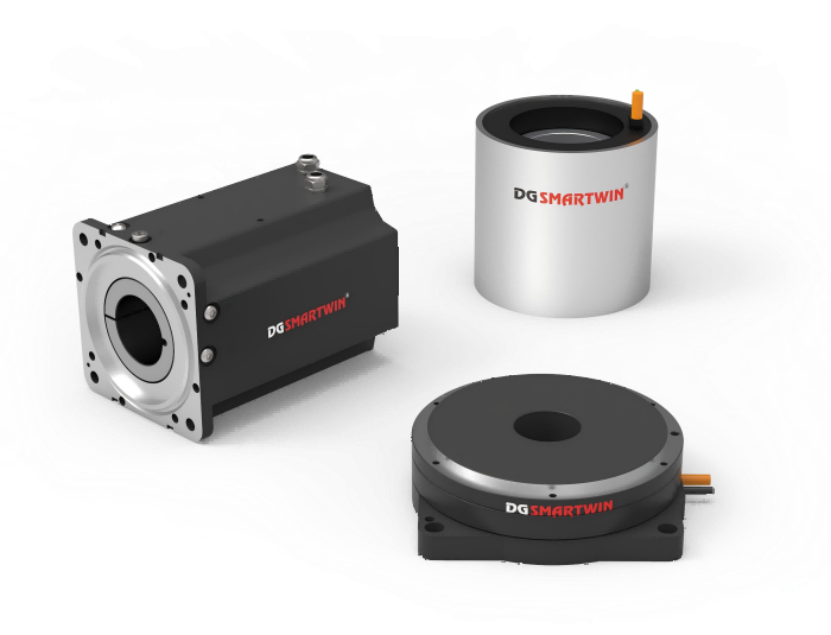

Modern-day semiconductor and optical inspection equipment is trending toward miniaturization and compactness, leaving limited installation space for rotary power components. Smartwin DD motors are available in multiple standard specifications, while supporting customization of outer diameter, thickness and torque parameters to fit confined inner spaces of equipment.

The motors are compatible with multiple encoders and support both absolute and incremental feedback schemes. Their communication protocols work with mainstream motion controllers. During equipment R&D phases, parameters can be matched according to overall machine design requirements, reducing structural modification workload in later stages and accelerating prototype development of precision equipment.

4. Domestic DD Motors to Break Import Dependence on Precision Direct-Drive Components

In the past, imported DD motors were widely adopted for rotary applications in semiconductor precision equipment, which brought pain points including high procurement costs, long lead times and lengthy spare-part delivery cycles. Component failures would directly hold back project progress.

Smartwin DD motors are independently developed and manufactured in-house. Pre-matched and calibrated with self-owned encoders at factory level, they deliver a domestic integrated solution covering both power drive and signal feedback. For domestic precision-equipment manufacturers, this solution helps optimize supply-chain structure while maintaining process performance indicators, and promotes the independent controllability of components for semiconductor inspection equipment.
