DGSMARTWIN CKM Iron-Core Linear Motor: A High-Performance Solution for Heavy-Duty Precision Power

DGSMARTWIN CKM Iron-Core Linear Motor: A Robust Solution for Heavy-Duty Precision Drive

Amid the trend where high-end manufacturing evolves toward high thrust, high rigidity and high precision, linear motors have long shifted from supporting components to the "heart" that determines core performance.

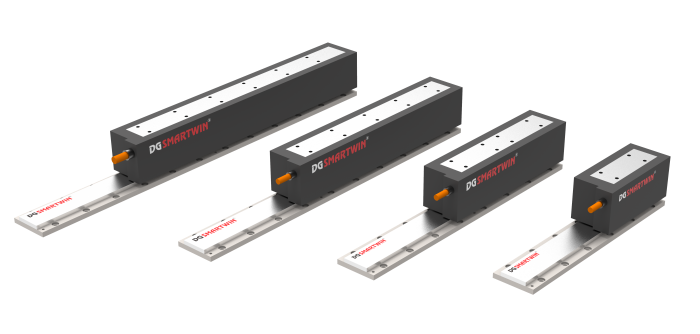

The DGSMARTWIN CKM series iron-core linear motor is an innovative product designed specifically for high-load and high-thrust applications.Featuring ultra-low cogging force, ultra-high peak thrust and a highly rigid structure, it breaks the performance limits of conventional iron-core linear motors, positioning itself as the Heavy-Duty Power Expert for new energy, precision machining, heavy-duty production lines and other demanding fields.

DGSMARTWIN CKM Series Iron-Core Linear Motor Key Breakthroughs

Built on mature iron-core technology, the CKM Series has achieved multiple key breakthroughs in design:

1. Ultra-Low Cogging Force: By optimizing the iron core structure and magnetic circuit design, it effectively reduces the resistance fluctuation caused by the cogging effect, ensuring the stability and positioning accuracy of the equipment during operation.

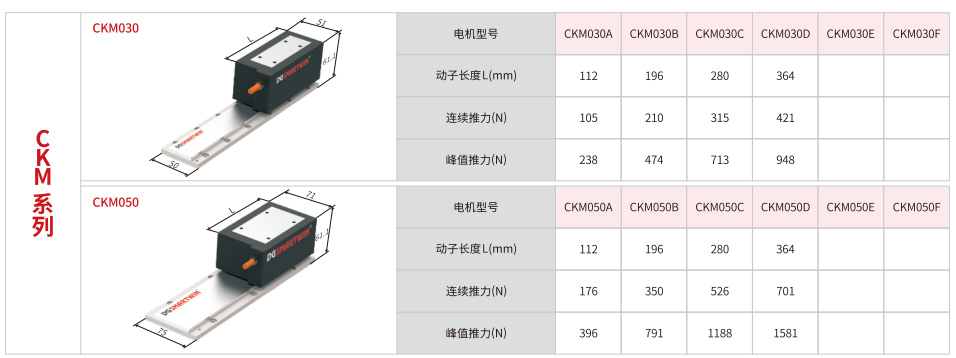

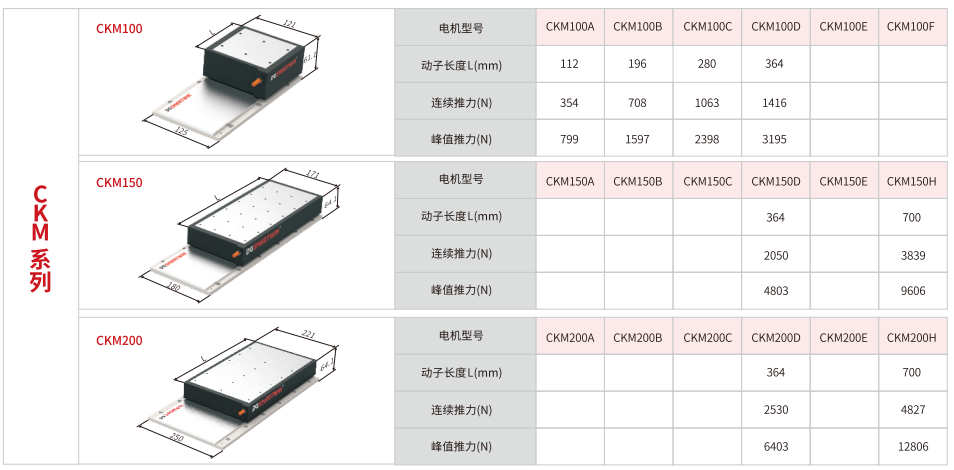

2. High Thrust Output: Covering the full model range from CKM030, CKM050, CKM100, CKM150 to CKM200, the continuous thrust ranges from 105 N to 4827 N, with a maximum peak thrust of 12806 N, which can easily meet the power demands under high-load working conditions.

3. High Rigidity Structure: The integrated design of the stator and mover, combined with the application of high-quality materials, endows the motor with excellent deformation resistance. Even under heavy-load acceleration and emergency stop conditions, it can still maintain stable motion accuracy.

4. Low Back EMF: Compared with conventional iron-core motors, the CKM Series has lower back electromotive force (EMF), which not only reduces the energy consumption of the drive system but also improves the stability of the motor during high-speed operation.

The performance characteristics of the CKM series make it the core power solution for high-load and high-precision scenarios. Typical applications include:New energy sector: Heavy-duty handling of battery pole pieces. It delivers high thrust while enabling precise positioning control of pole pieces, avoiding material damage.

Precision machining: Large-scale laser precision cutting. Its high-rigidity structure ensures no vibration of the cutting head during high-speed movement, improving cutting accuracy and surface quality.

Heavy-duty production line: Maglev linear motor for heavy-duty production lines. Its low cogging force ensures smoother operation and reduces maintenance costs.

Industrial platforms: Heavy-duty positioning platform drive, meeting the high-load and high-precision motion requirements in aerospace, automotive manufacturing and other fields.

Amid the trend of industrial equipment upgrading toward high load, high precision, and high dynamics, the WinSmart CKM series iron-core linear motors achieve a balance between high thrust and high rigidity through deeply optimized iron-core technology.As a performance upgrade over conventional iron-core motors, they serve as the core power guarantee for high-load precision equipment, providing efficient and reliable motion control solutions for new energy, precision machining, heavy-duty automation, and other industries.
