DGSMARTWIN BMS135 Linear Motor Module-Balance Thrust, Stroke and Precision:Redefine Medium-load Motion Performance

Balancing thrust, stroke and accuracy, the SMARTWIN BMS135 linear motor module redefines medium-load driving performance.

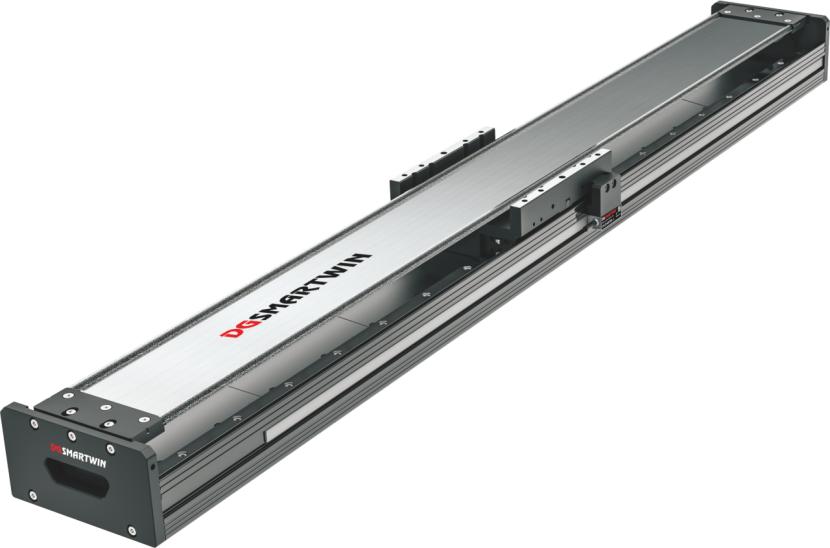

In automated production lines with medium load and long stroke, a linear module that balances thrust, travel and precision is critical to ensuring production cycle efficiency and product consistency.Built with a semi-enclosed high-rigidity structure, the DGSMARTWIN BMS135 series linear motor module integrates high thrust and long stroke advantages. It delivers a high-performance integrated solution for medium-load precision motion scenarios, serving as the core driving choice for lithium battery production, laser processing, general automation and other industries.

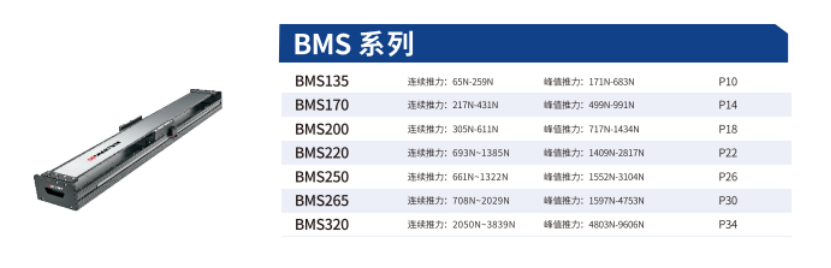

The BMS135 series is a core model of the DGSMARTWIN BMS product family, specially developed for medium-load applications, precisely filling the demand gap between light-medium load and heavy-load scenarios.Adopting a semi-enclosed structure and equipped with 2 to 4 high-rigidity linear guides, the module features an integrated thickened aluminum alloy base that greatly enhances deformation resistance. It withstands the impact of high-speed operation under medium loads and ensures long-term precision stability. In terms of core parameters, the BMS135 series supports a maximum standard stroke of 3870 mm and a maximum speed of 5 m/s, with continuous motor thrust ranging from 65 N to 259 N.Compared with the LMS99 series, it delivers a notable upgrade in both thrust and stroke, fully meeting the motion demands of medium-load and medium-to-long stroke applications.It perfectly satisfies the stringent requirements of lithium battery cell handling, laser marking, automated inspection and other working conditions.

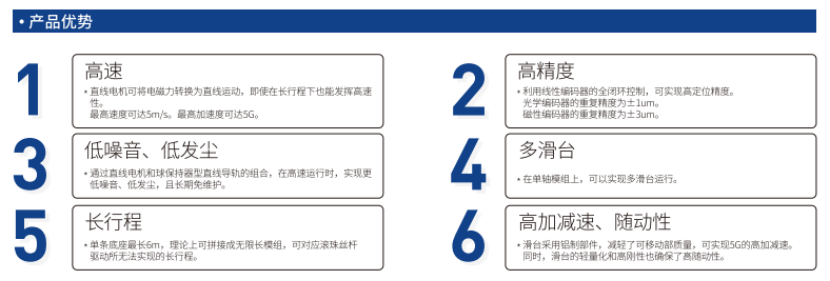

In terms of technical design, the BMS135 series embodies DGSMARTWIN ’s core technological accumulation in the field of linear motors. The contact-free linear motor transmission completely eliminates wear and backlash found in traditional transmission mechanisms, achieving micron-level repeat positioning accuracy to meet the extreme precision requirements of high-end manufacturing. Designed with standardized interfaces, the module is compatible with mainstream control systems and various encoder solutions. It can be rapidly integrated into diverse automated production lines, greatly reducing equipment integration difficulty. Meanwhile, the semi-enclosed structure delivers reliable protection while facilitating later maintenance and inspection, effectively lowering customer’s operation and maintenance costs.

In terms of application value, the BMS135 series delivers all-round performance upgrades for the medium-load manufacturing industry. It is widely applied in processes such as lithium battery pole piece processing and cell handling; precision mounting of 3C products, semiconductor wafer handling, chip inspection equipment, as well as PCB drilling and cutting.It also covers pharmaceutical sorting and packaging lines, medical testing equipment such as biochemical analyzers, and material transmission in sterile workshops.In addition, it serves visual inspection equipment, precision measuring instruments, intelligent warehouse box handling, and laser cutting and engraving machines. As the core model of the DGSMARTWIN BMS product line, the BMS135 series features high thrust, long stroke, high rigidity and high reliability, making it an ideal solution for medium-load precision motion scenarios.Whether for system integrators developing mid-to-high-end automated equipment or end factories upgrading production lines with intelligent transformation, the BMS135 series provides superior performance and stable quality to fully safeguard customers’ production operations.
