DGSMARTWIN LMS99 & BMS135 Linear Motor Module: Comparative Analysis for Accurate Selection Without Pitfalls

Avoid selection pitfalls with precise model selection! Comparative analysis of DGSMARTWIN LMS99 and BMS135 linear motor modules

Against the backdrop of rapid upgrading of automated equipment, linear motor modules have become core transmission components in 3C electronics, lithium batteries, laser processing, precision inspection and other industries, thanks to their advantages of high speed, high precision and low wear.Targeting diversified application scenarios, DGSMARTWIN has launched two major linear motor module series: LMS99 and BMS135. With clear product positioning and complementary strengths, they meet diverse operating conditions ranging from conventional light and medium-load applications to medium-load long-stroke working scenarios.

The LMS99 series focuses on light and medium loads with high cost performance, specially designed for 3C electronics, precision inspection, small automated assembly and similar scenarios.Featuring a semi-enclosed structure and equipped with 2 to 4 high-precision linear guides, it balances lightweight design and high rigidity while ensuring reliable protection.The series offers a maximum standard stroke of 2890 mm, a top speed of 5 m/s, and continuous thrust from 48 N to 193 N, fully capable of high-speed reciprocating motion under light loads.Combined with an integrated aluminum alloy base and external mounting holes, it enables easy assembly and commissioning, and is compatible with multiple encoder options.It delivers micron-level repeat positioning accuracy with effective cost control, making it an ideal choice for cost-sensitive standardized automation equipment.

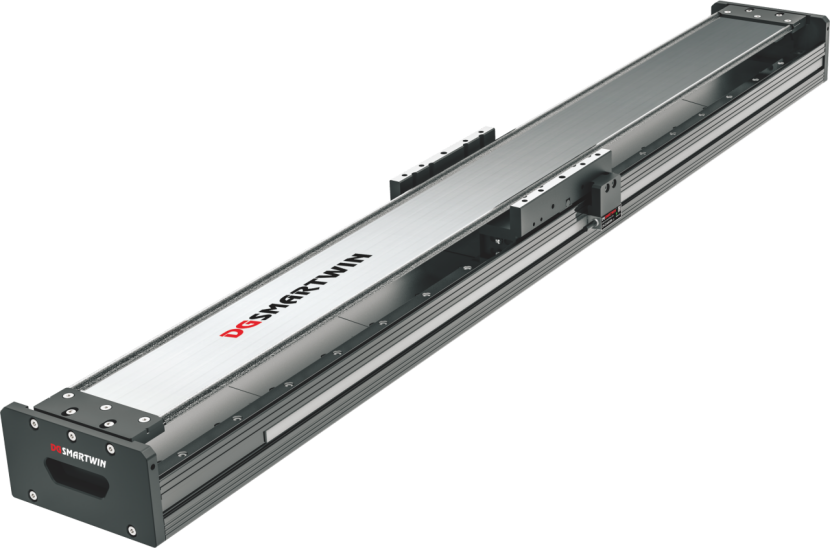

The BMS135 series focus on high-end scenarios with medium loads and long strokes, serving as the preferred solution for lithium battery production, laser processing and medium-sized automated production lines. Compared with the LMS99, it features comprehensive upgrades in structure and performance. Adopting an integrated thickened base, it delivers higher rigidity and stronger deformation resistance to withstand the impact generated by high-speed operation under medium loads. In terms of specifications, the maximum standard stroke of the BMS135 is increased to 3870mm, with continuous thrust ranging from 65N to 259N. It outperforms the LMS99 significantly in both thrust and stroke, while maintaining a maximum running speed of 5m/s. The contact-free transmission design eliminates wear and backlash, ensuring stable and durable precision during long-term operation.

Both modules adopt a semi-enclosed structure and linear motor drive, featuring fast response, high precision and low maintenance cost. They are compatible with mainstream control systems and suitable for integration with various automated equipment. Their core differences lie in load capacity and stroke range. The LMS99 focuses on lightweight design and cost efficiency, making it ideal for light-load and moderate-stroke scenarios. The BMS135 is engineered with high rigidity and high thrust to meet the stringent requirements of medium-load and long-stroke applications. In terms of application scenarios, the LMS99 is well suited for small-sized equipment such as mobile phone assembly, chip inspection and visual alignment. The BMS135 is widely used for battery cell handling, laser cutting, medium transfer mechanisms and other industrial equipment.

In summary, choosing the LMS99 for light and medium loads, standard strokes and cost-effectiveness, opting for the BMS135 for medium loads, long strokes and superior stability. The two major linear motor module series from DGSMARTWIN accurately cover mainstream automation demands. With mature technology and reliable quality, they deliver strong momentum for equipment upgrading and production line renovation.
