Home Ironless Linear Motor CUM CUM2
CUM2

CUM2

Features

  • High thrust density
  • Low temperature rise
  • No magnetic attraction
  • No cogging torque
  • Good dynamic curve temperature

Applicable Industries

Semiconductor Industry Display Panel Industry Lithium Battery New Energy Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CUM
Series
  • CUM
3
Armature Width
  • 3: 35mm
  •
B
Armature Length
  • B: 121mm
  • D: 241mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A,B,C,D etc.
TC
Temperature Sensor
  • TC with Temperature Sensor
  • No Marking, No Temperature Sensor
L05
Armature Lead
  • L05:0.5m lead
    with 16M-4K connector
  • LF05:0.5m lead(4x20AWG)
    with WS20J4ZQ connector
Stators order number rules
MUM
Series
  • MUM
2
Stator Width
  • 2: 21.2mm
L120
Armature Lead
  • L120: 119.7mm
  • L180: 179.7mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MUM2-L120 119.7 21.2 38.1 1 2 30 3.9
MUM2-L180 179.7 21.2 38.1 2 3 30 3.9
Parameter configuration
Product Model CUM2A CUM2B CUM2C CUM2D
Armature Length(mm) 91 151
Continuous Thrust(N) 25.5 51
Peak Thrust(N) 127.6 255.2

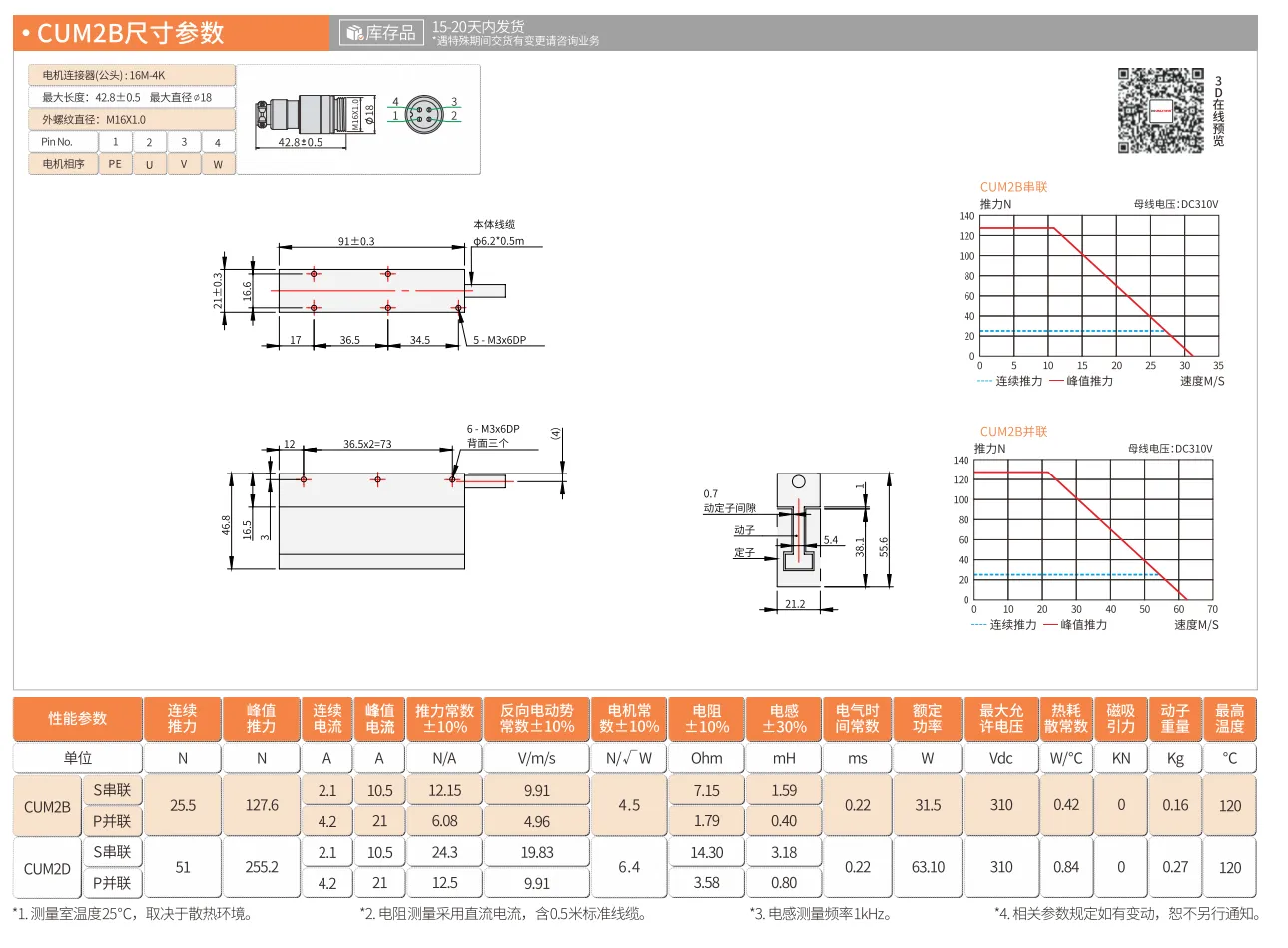

CUM2B

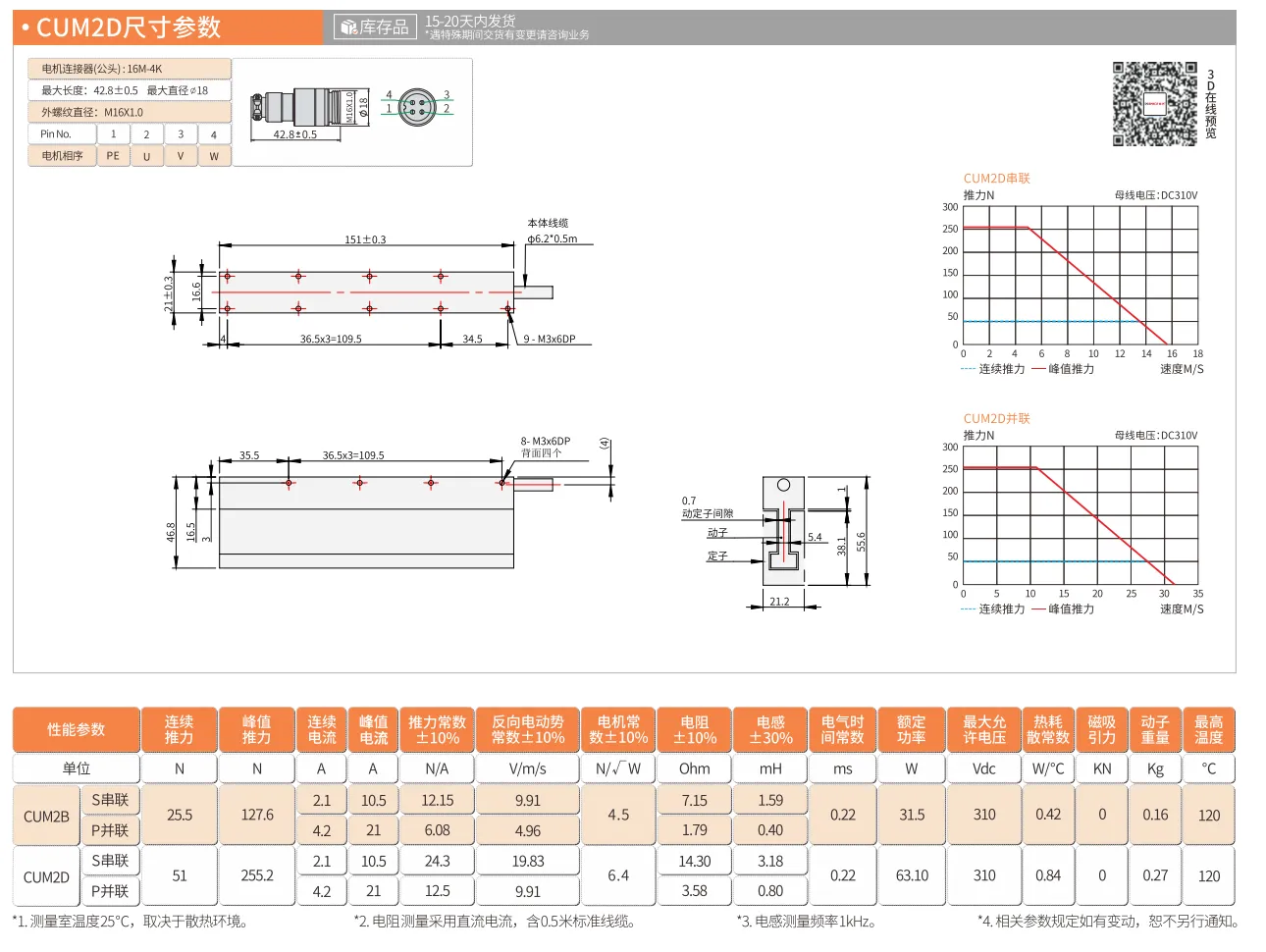

CUM2D
CUM2B
CUM2D
