CUM5

CUM5

Features

  • High Thrust Density
  • Low Temperature Rise
  • No Magnetic Pull
  • No Cogging Torque
  • Good Dynamic Curve Temperature

Applicable Industries

Semiconductor Industry Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CUM
Series
  • CUM
5
Armature Width
  • 5: 38.2mm
  •
B
Armature Length
  • B: 121mm
  • D: 241mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A、B、C、D etc.
TC
Temperature Sensor
  • TC with Temperature Sensor
  • No Marking No Temperature Sensor
L05
Stator Lead-out
  • L05:0.5m lead-out(4x20AWG)，
    compatible with 16M-4K connector
  • LF05:0.5m lead-out(4x20AWG)，
    compatible with WS20J4ZQ connector
Stators order number rules
MUM
Series
  • MUM
5
Stator Width
  • 5: 38.7mm
L120
Stator Length
  • L120: 119.5mm
  • L180: 179.5mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MUM5-L120 119.5 38.7 76.2 1 2 60 15.2
MUM5-L180 179.5 38.7 76.2 2 3 60 15.2
Parameter configuration
Product Model CUM5A CUM5B CUM5C CUM5D
Armature Length(mm) 121 241
Continuous Thrust(N) 119.8 239.5
Peak Thrust(N) 676.9 1353.7

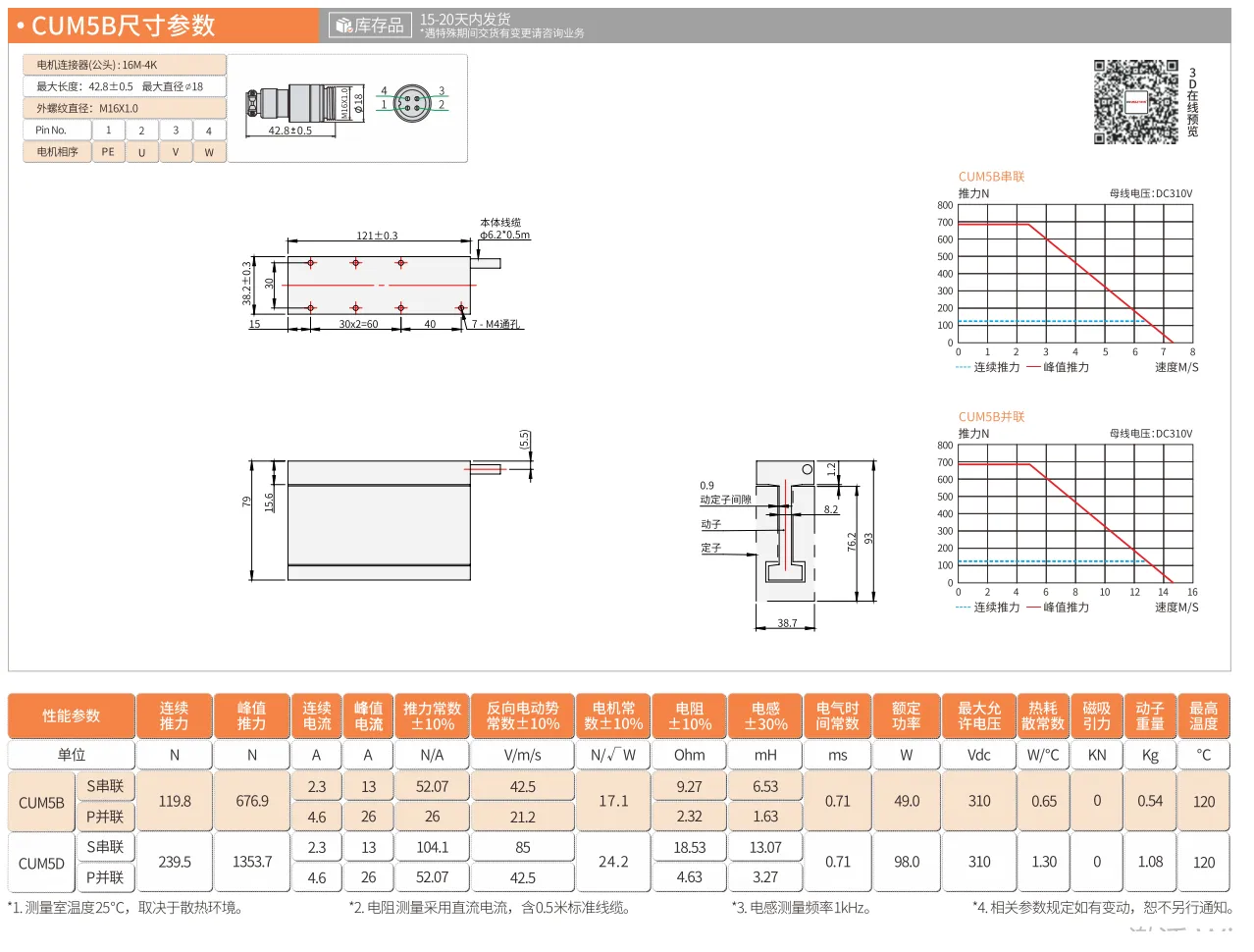

CUM5B

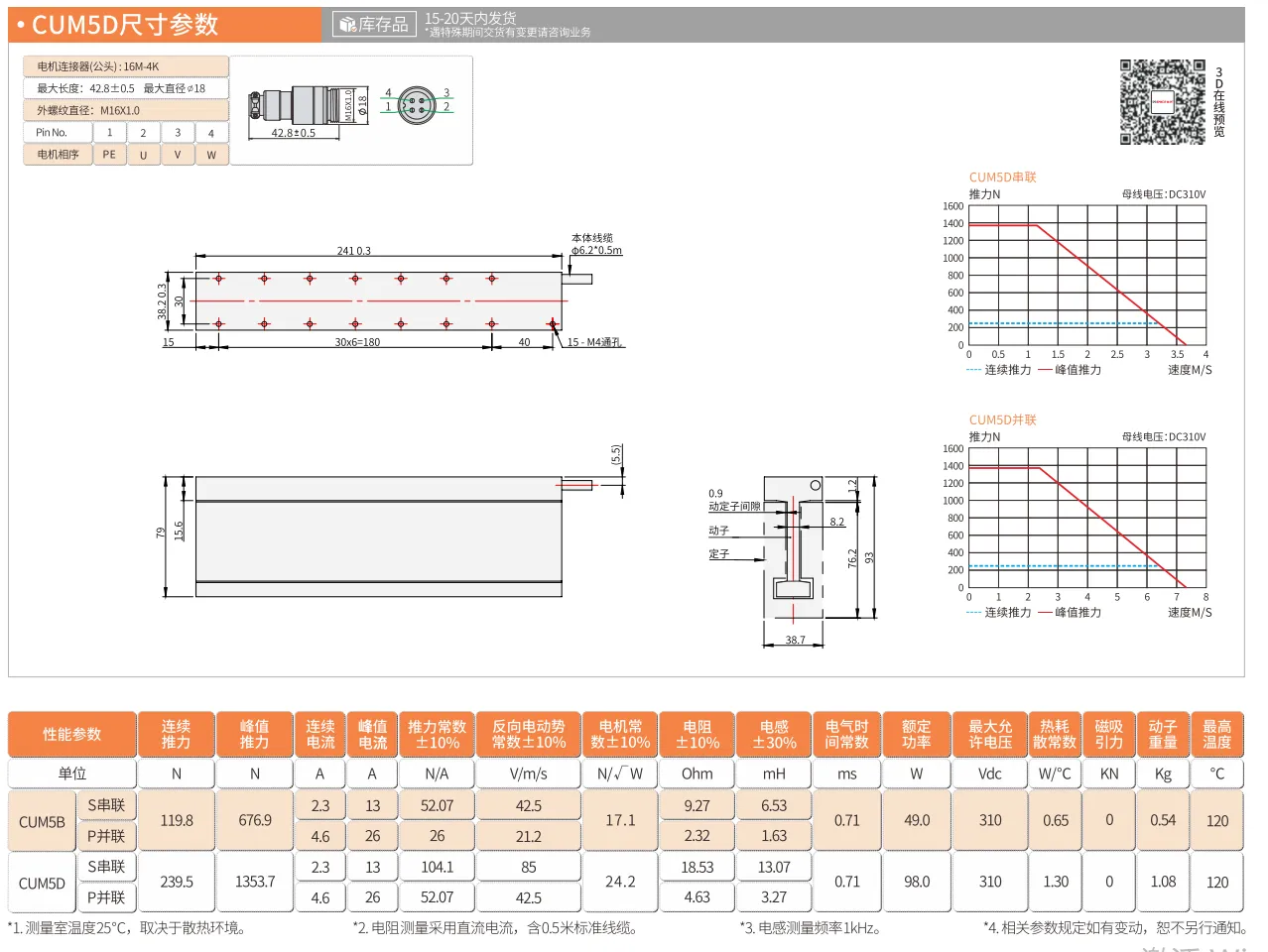

CUM5D
CUM5B
CUM5D
