CA26Absolute magnetic grid encoder

CA26Absolute magnetic grid encoder

Features

  • High-performance soft magnetic material
  • Absolute position detection
  • Equipped with an LED status indicator light
  • easily disassembled and assembled

Applicable Industries

Display Panel Industry SMT Industry Precision Testing Industry Dispensing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Readhead ordering rules
CA26
Series
  • CA: Absolute magnetic grid ruler
B
Communication protocol
  • B:BISS-C
X
Resolution
  • X: 1.0μm
05
Cable length
  • 05:0.5m
A
Connector
  • A: 9-pin D-type
    Connector

Magnetic Grid Scale Ordering Rules
CA26
Series
  • CA26: Absolute magnetic grid ruler
L500
Length
  • L500:500mm
Parameter configuration
Reading head Communication protocol Voltage and current The fastest response speed Operating temperature Magnetic Grid type Positional accuracy Repeatability accuracy RDetect the effective length Coefficient of thermal expansio
CA Series BISS-C

5V±10%，250mA(No-load)

 5m/s 0℃至+65°C linear

±5μm/m(25°C after position compensation)，
±2.5μm (Ideal assembly relationship)
 8m 11±0.5μm/m/℃
CA26 Dimension diagram

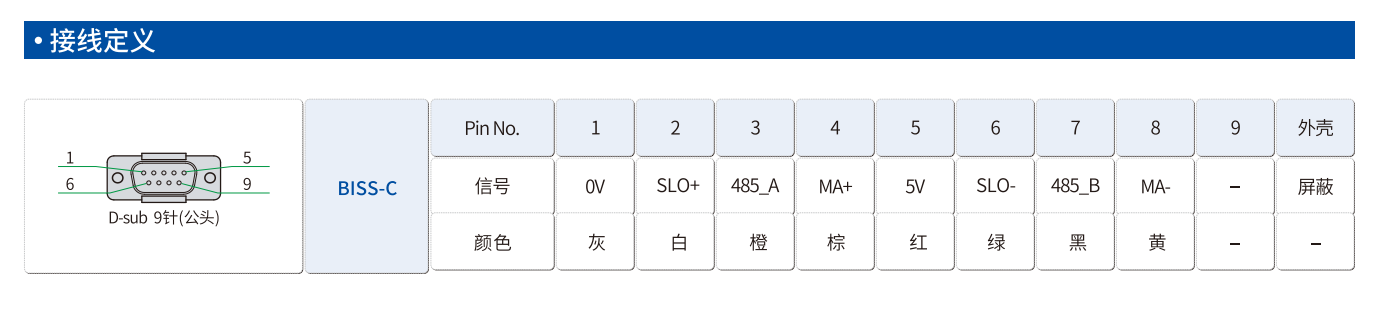

CA26 Wiring definition
CA26 Dimension diagram
CA26 Wiring definition
