Home Ironless Linear Motor CUM CUM3
CUM3

CUM3

Features

  • High thrust density
  • Low temperature rise
  • No magnetic pull
  • No cogging torque
  • Good dynamic curve temperature

Applicable Industries

Semiconductor Industry Display Panel Industry Solar PV Industry Precision Laser Processing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CUM
Series
  • CUM
3
Armature Width
  • 3: 35mm
  •
B
Armature Length
  • B: 121mm
  • D: 241mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
TC
Temperature Sensor
  • TC with Temperature Sensor
  • No Marking, No Temperature Sensor
L05
Armature Lead
  • L05:0.5m lead
    with 16M-4K connector
  • LF05:0.5m lead(4x20AWG)
    with WS20J4ZQ connector
Stators order number rules
MUM
Series
  • MUM
3
Armature Width
  • 3: 35.7mm
L120
Armature Length
  • L120: 119.5mm
  • L180: 179.5mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MUM3-L120 119.5 35.7 50.8 1 2 60 9.1
MUM3-L180 179.5 35.7 50.8 2 3 60 9.1
Parameter configuration
Product Model CUM3A CUM3B CUM3C CUM3D
Armature Length(mm) 121 241
Continuous Thrust(N) 64.2 128.3
Peak Thrust(N) 279 558

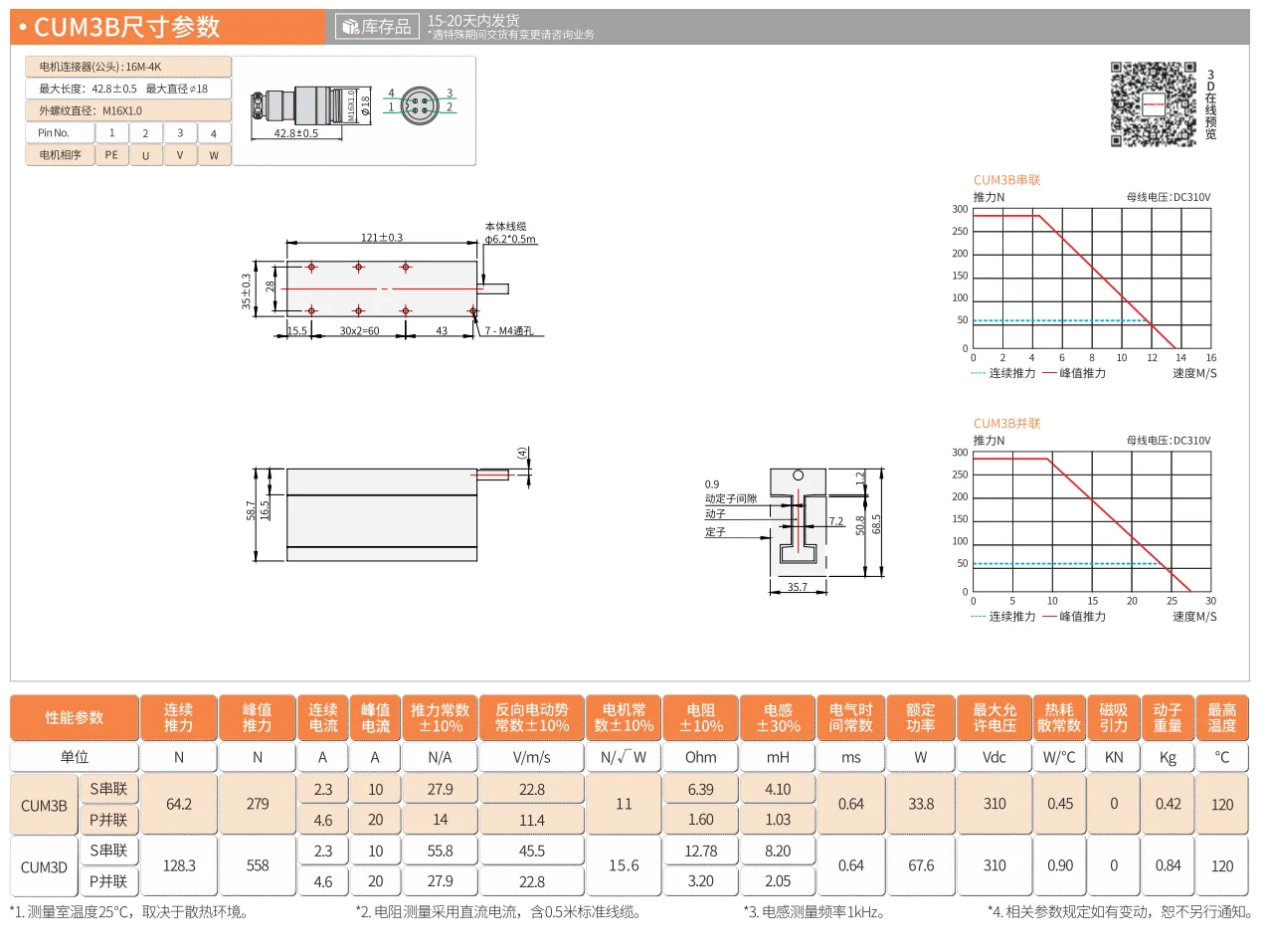

CUM3B

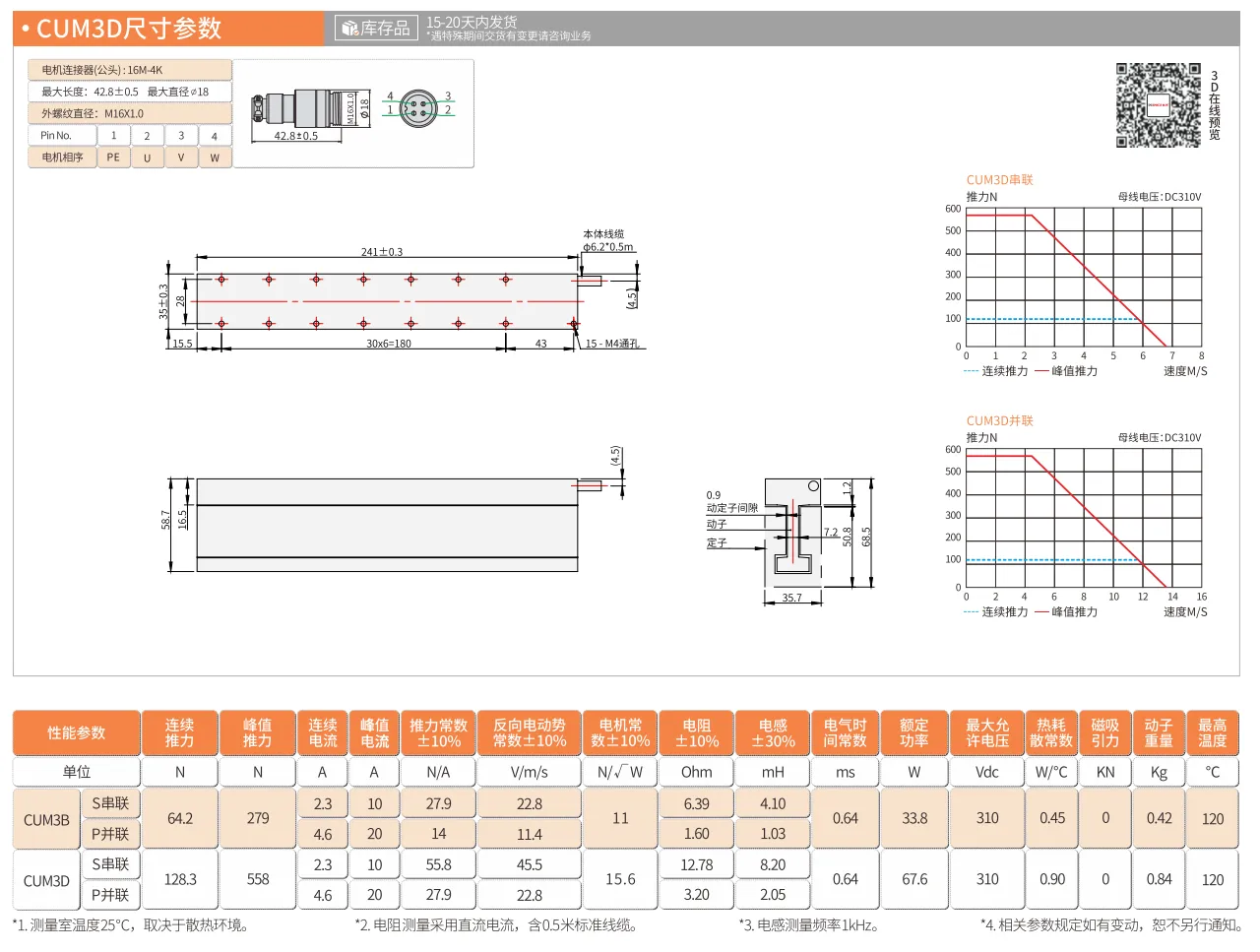

CUM3D
CUM3B
CUM3D
