CUM7

CUM7

Features

  • High Thrust Density
  • Low Temperature Rise
  • No Magnetic Pull
  • No Cogging Torque
  • Good Dynamic Curve Temperature

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CUM
Series
  • CUM
7
Armature Width
  • 7: 49mm
  •
B
Armature Length
  • B: 169mm
  • D: 337mm
A
Standard winding
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
TC
Temperature Sensor
  • TC with Temperature Sensor
  • No Marking, No Temperature Sensor
L05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
  • LF05:0.5m lead(4x20AWG)，
    with WS20J4ZQ connector
Stators order number rules
MUM
Series
  • MUM
7
Stator Width
  • 7: 50mm
L168
Stator Length
  • L168: 167.5mm
  • L252: 251.5mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MUM7-L168 167.5 50 100 1 2 84 24.9
MUM7-L252 251.5 50 100 2 3 84 24.9
Parameter configuration
Product Model CUM7A CUM7B CUM7C CUM7D
Armature Length(mm) 169 337
Continuous Thrust(N) 205.5 411
Peak Thrust(N) 1479.6 2959.2

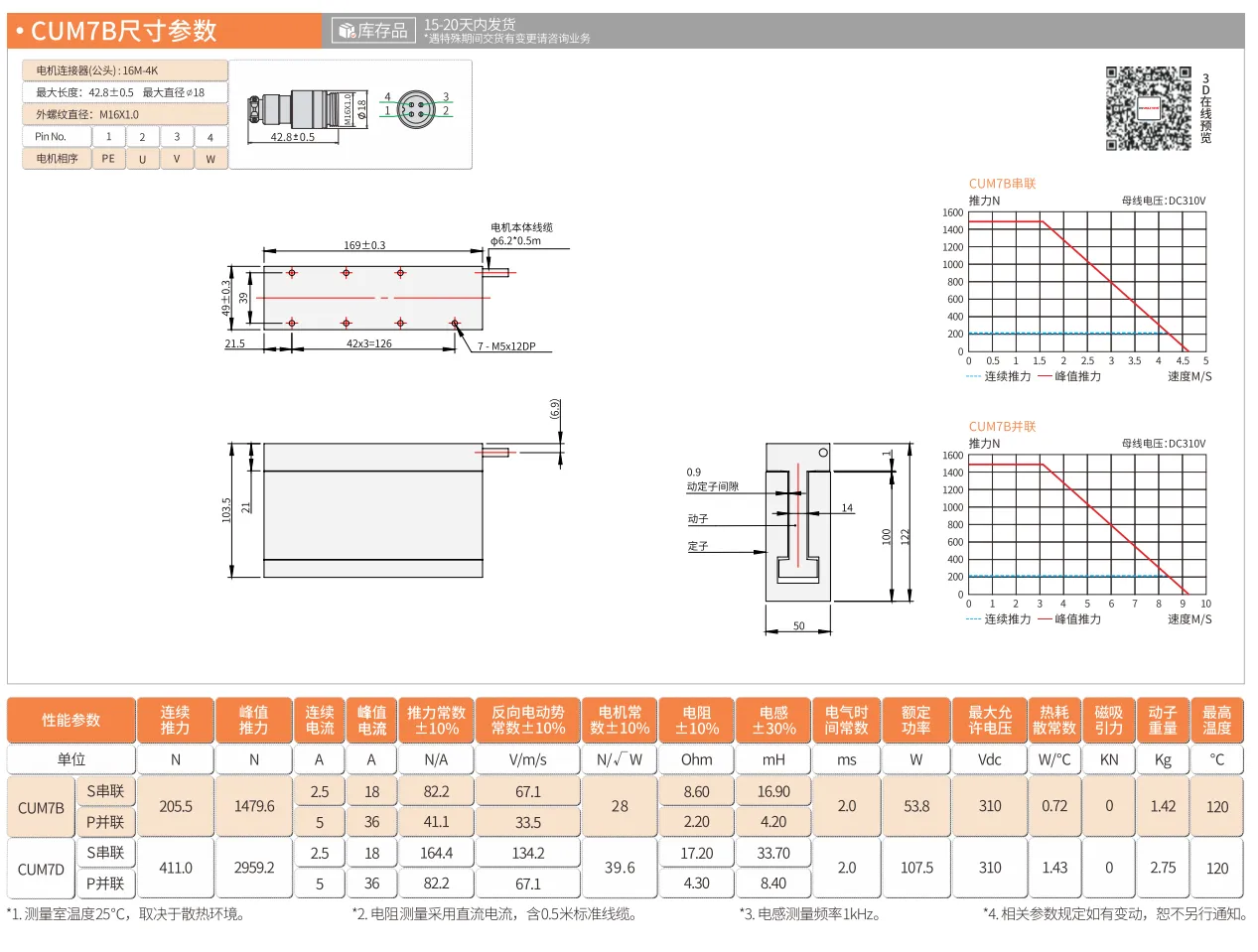

CUM7B

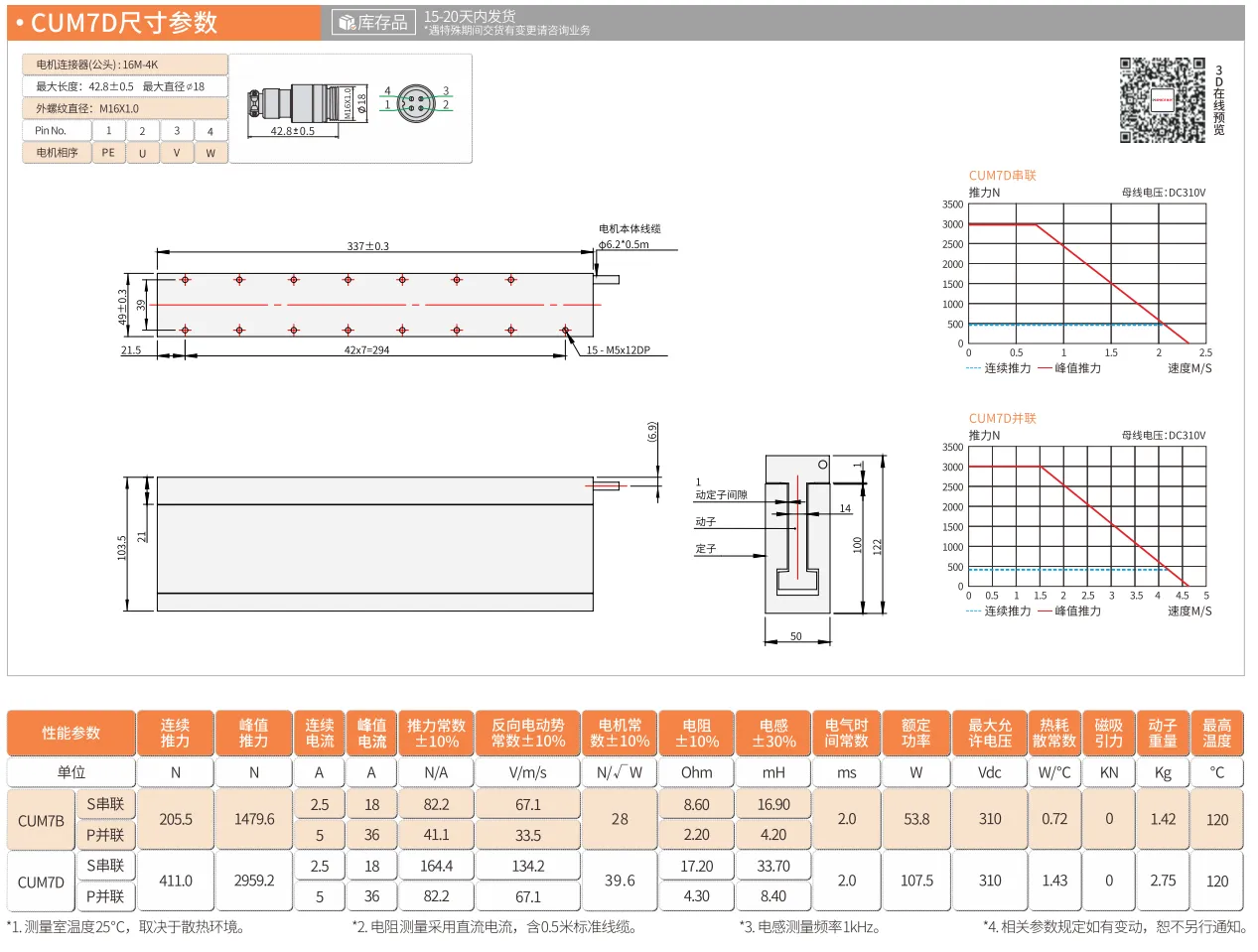

CUM7D
CUM7B
CUM7D
