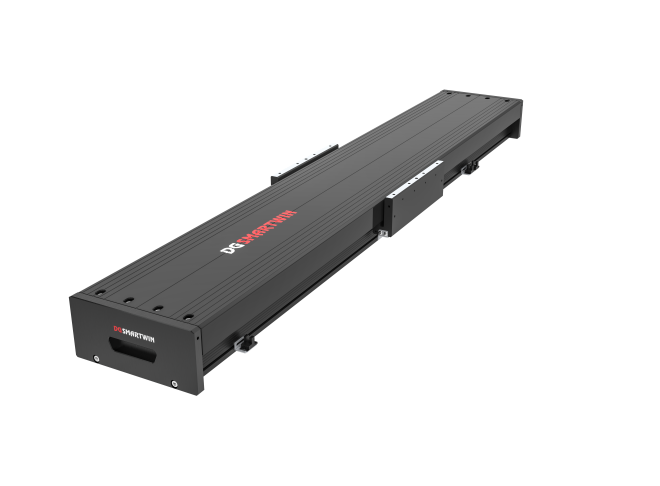

DGSMARTWIN BMW170 Series: Precise Power Solutions from Integrated Linear Motor Module Manufacturer

In the field of industrial automation and high-end manufacturing, linear motor modules are the core components for achieving high-speed and high-precision motion control. The BMW170 Series linear motor modules launched by dgsmartwin have become the ideal choice for many precision scenarios due to their fully enclosed structure and excellent performance.

The core parameters of this series cover the entire demand range of small and medium-sized loads, with professional and accurate technical specifications: in terms of stroke adaptation, it is divided into core sub-models such as CFS075B (170mm), CFS075C (235mm), and CFS075D (300mm) according to the slide table length, which accurately matches the linear movement stroke requirements of different equipment; in terms of power output, it is equipped with a high thrust density iron-core linear motor, with continuous thrust ranging from 217N to 431N and peak thrust up to 499N to 991N. Combined with the self-developed grating encoder by dgsmartwin, it perfectly balances power and precision. The core selling points focus on integration and adaptability, adopting an integrated design of "motor-rail-encoder-driver", which eliminates complex assembly processes. The standardized layout of mounting holes supports multi-directional rapid integration; at the same time, it is compatible with pulse commands and bus protocols, enabling seamless connection with mainstream control systems and shortening the commissioning cycle.

With the characteristics of high speed, high precision and high protection, the BMW170 Series has been widely used in many fields:

Semiconductor Industry: Realize micron-level positioning and rapid transfer in wafer inspection and chip packaging equipment.

Electronic Manufacturing: Suitable for PCB board inspection and 3C product assembly, ensuring motion stability under high beat.

Laser Processing: Meet the dual requirements of high-speed scanning and precise positioning in laser cutting and welding equipment.

Automated Inspection: Provide a reliable motion platform for visual inspection and coordinate measuring instruments, improving inspection efficiency and data accuracy.

The core competitiveness of the BMW170 Series stems from the in-depth insight into the needs of integrated scenarios and the precise implementation of technical selling points. Compared with traditional split-type linear drive solutions, this series eliminates assembly gaps between components through an integrated design, which not only improves operational stability, but also significantly reduces the integration difficulty and cost for equipment manufacturers; in terms of performance tuning, it integrates dgsmartwin's independent core technologies, and the equipped high-precision encoder and adaptive drive algorithm ensure precise control under complex working conditions. Its performance is comparable to that of international first-tier brands, while it has more advantages in cost. The gradient coverage of multiple stroke sub-models in the whole series allows users to select models accurately according to actual needs, avoiding power or stroke redundancy.

As a benchmark product of dgsmartwin Intelligent Manufacturing, the BMW170 Series linear motor modules are supported by core technologies and take flexible configuration as the advantage, providing a motion solution with both performance and reliability for industrial automation equipment. In the wave of intelligent manufacturing upgrading, it is not only a key component for equipment upgrading, but also an important partner for enterprises to improve production efficiency and break through technical bottlenecks.
