Why Do Linear Motors Overheat During Frequent Acceleration and Deceleration

A linear motor may perform well during a short test but become excessively hot after running the same movements continuously. This often happens in precision positioning stages, inspection equipment, and automated handling systems where rapid acceleration, deceleration, and short cycle times are part of normal operation.

The problem is not simply how fast the motor moves. Repeated changes in motion demand substantial thrust, which increases winding current and heat generation. When the operating cycle produces more heat than the motor can dissipate, its temperature rises. Finding the cause requires looking beyond maximum thrust and examining how the motor performs throughout the actual production cycle.

Why Does Frequent Acceleration and Deceleration Cause Linear Motor Overheating?

During a positioning cycle, the motor must accelerate the moving assembly, control its travel, and then apply force to slow it down. These changing demands place a different electrical load on the motor than steady movement.

1.Acceleration Increases Force and Current Demand

The relationship between moving mass, acceleration, and inertial force is straightforward:

Force (N) = Moving Mass (kg) × Acceleration (m/s²)

For a 10 kg moving assembly, an acceleration of 5 m/s² requires 50 N of inertial force. Doubling the acceleration increases this requirement to 100 N, before accounting for friction or other external loads.

Producing greater thrust generally requires more motor current. Deceleration can create a similar electrical demand because the motor must generate force in the opposite direction to reduce speed. Although braking may return mechanical energy to the drive, current flowing through the windings still produces resistive losses.

2.Repeated High Current Generates More Heat

The main source of winding heat is electrical resistance. The basic relationship is:

Copper Loss (W) = Current² (A²) × Winding Resistance (Ω)

At the same winding resistance, doubling current increases copper loss approximately fourfold.

A short burst of current may have little effect on the motor's overall temperature. The situation changes when acceleration and braking occur repeatedly with limited time between movements. Heat accumulates within the motor, and its temperature rises until heat generation and dissipation reach equilibrium.

If that equilibrium temperature exceeds the permitted operating limit, the motor may trigger thermal protection or experience reduced performance.

How Do RMS Current and Duty Cycle Affect Linear Motor Temperature?

A motor's peak thrust rating indicates whether it can produce the force required for a demanding movement. It does not establish whether the same movement can be repeated continuously.

For repetitive applications, the more important question is how much current the motor carries over the complete cycle.

1.Why Peak Force Alone Is Not Enough

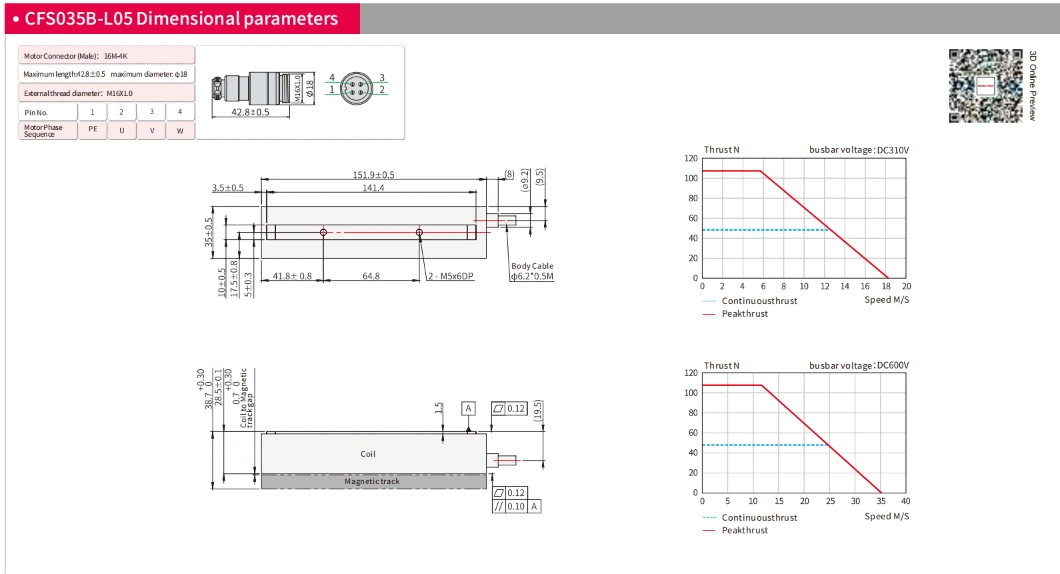

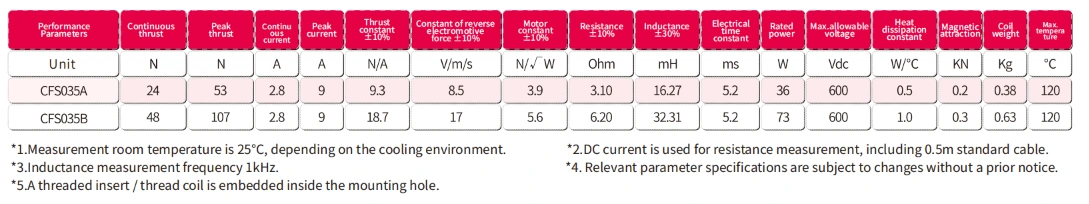

Peak force is available for a limited duration, while continuous force describes what the motor can sustain under specified thermal conditions.

A positioning axis may operate below its peak force limit during every movement but still overheat after continuous operation. The reason is that repeated high-current intervals can produce an RMS current greater than the motor's continuous rating.

RMS current accounts for both current magnitude and the time spent at each operating level.

For a cycle divided into several intervals:

RMS Current = Square Root of [Sum of (Current² × Time) / Total Cycle Time]

This simplified expression is useful for understanding thermal loading. Actual evaluation should use consistent current definitions and the motor manufacturer's applicable ratings.

2.How the Motion Cycle Changes Thermal Load

Current demand varies throughout a typical positioning cycle.

However, the relationship is not determined by cycle time alone. A shorter movement with lower acceleration may produce less thermal stress than a longer movement requiring aggressive acceleration. The complete motion profile must therefore be considered when comparing operating conditions.

How to Diagnose Linear Motor Overheating During Repeated Motion

Overheating that appears after a change in production speed may have a different cause from overheating that develops gradually in a machine that previously operated normally. Comparing when the problem occurs with the motor's actual operating data is often more useful than immediately adjusting the cooling system.

Start with the motion profile. Check whether the moving mass, acceleration, travel distance, and cycle frequency still match the original design. Then review current feedback across several complete cycles, including periods when the axis is stationary.

If the motion profile has not changed but current demand has increased, inspect the mechanical system. Higher guide friction, misalignment, cable drag, or an added load can increase the force required for the same movement. Repeated servo corrections may also create unnecessary current while the axis is holding position.

When electrical and mechanical conditions appear normal, examine how heat leaves the motor. Mounting contact, surrounding temperature, and any specified cooling arrangement can affect the temperature reached during continuous operation.

The following observations can help narrow down the cause.

Motor temperature should be measured under representative production conditions. A brief unloaded test may not reproduce the thermal behavior of a fully loaded machine operating at its normal cycle rate.

Also, the motor's external surface temperature does not necessarily represent the winding temperature. Where available, winding temperature sensors and drive diagnostics provide more relevant information for assessing thermal protection limits.

How Can You Reduce Linear Motor Overheating?

Once the source of excess heat has been identified, changes can be made without unnecessarily compromising machine throughput. The most effective adjustment depends on whether the problem originates in the motion profile, mechanical system, or thermal design.

1.Refine the Motion Profile and Reduce Mechanical Resistance

When acceleration and deceleration generate most of the current demand, reducing unnecessarily aggressive acceleration is worth evaluating. A revised motion profile may lower RMS current while maintaining acceptable cycle time.

For short-stroke equipment, adjusting the balance between acceleration, travel, and settling time can sometimes provide better results than simply reducing maximum velocity. Jerk-limited profiles may improve motion smoothness, but their thermal effect should still be checked using actual current data.

Excess mechanical resistance should be corrected separately. Improving guide alignment, reducing unnecessary moving mass, or eliminating cable drag can lower thrust demand without sacrificing speed.

2.Improve Heat Dissipation or Review Motor Sizing

A motor operating within its intended current range may still become too hot if its actual cooling conditions differ from those assumed during selection.

For motors that rely on heat transfer through the mounting structure, inadequate thermal contact can limit continuous performance. Other designs may require specified airflow or liquid cooling to maintain their rated capability.

If the thermal path is satisfactory and the required motion cycle cannot be relaxed, the motor's continuous force capability should be reviewed.

Selecting a motor only because its peak thrust exceeds the acceleration requirement can lead to problems in high-frequency applications. Continuous force, winding characteristics, and the available cooling arrangement must also be compatible with the operating cycle.

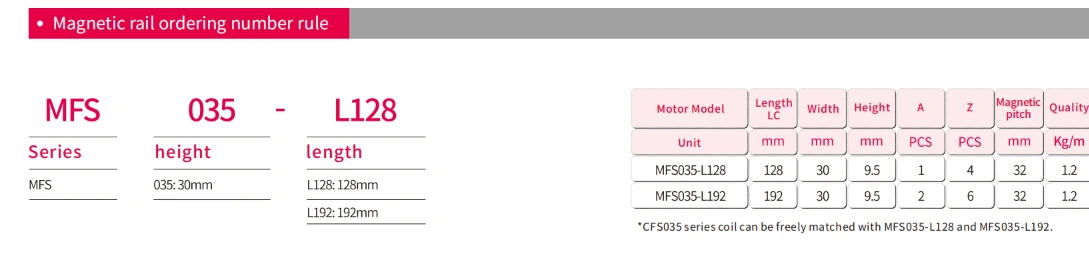

For high-frequency positioning applications, Smartwin can help evaluate linear motor requirements using the moving mass, stroke, acceleration, cycle time, and installation conditions. This allows the motor configuration to be considered in relation to the actual operating demands rather than maximum thrust alone.

FAQs About Linear Motor Overheating

Can a linear motor overheat without exceeding its peak current rating?

Yes. Peak current is a short-duration limit. A motor can remain within that limit during individual movements while its RMS current exceeds the continuous rating during repetitive operation.

Can a linear motor overheat while holding position?

Yes. Holding a vertical load or resisting an external force may require continuous current. Unstable position control can also produce repeated corrective currents, increasing winding heat even when the axis is stationary.

Does lowering maximum speed always reduce motor temperature?

Not necessarily. Maximum speed does not directly indicate thermal load. Acceleration, movement frequency, external forces, and the time spent at different current levels often have a greater influence. A revised profile should be assessed using RMS current rather than speed alone.

How can you tell whether overheating is related to servo tuning?

Examine current feedback and position error, particularly when the axis is stationary. Persistent oscillation or repeated corrective movements can indicate tuning-related current demand. However, similar symptoms may also arise from mechanical vibration or external loads, so the complete system should be checked before changing controller settings.

Conclusion

Frequent acceleration and deceleration can increase linear motor temperature because the motor repeatedly draws current to generate dynamic thrust. Whether this becomes an overheating problem depends on the actual RMS load, operating cycle, and available thermal capacity.

By examining current feedback, mechanical resistance, and cooling conditions, engineers can identify the source of excessive heat and determine whether motion adjustments or a different motor configuration are necessary.

Evaluating a linear motor for repetitive high-speed motion? Contact Smartwin with your moving mass, stroke, acceleration, cycle time, and operating requirements to discuss an appropriate motor configuration.
