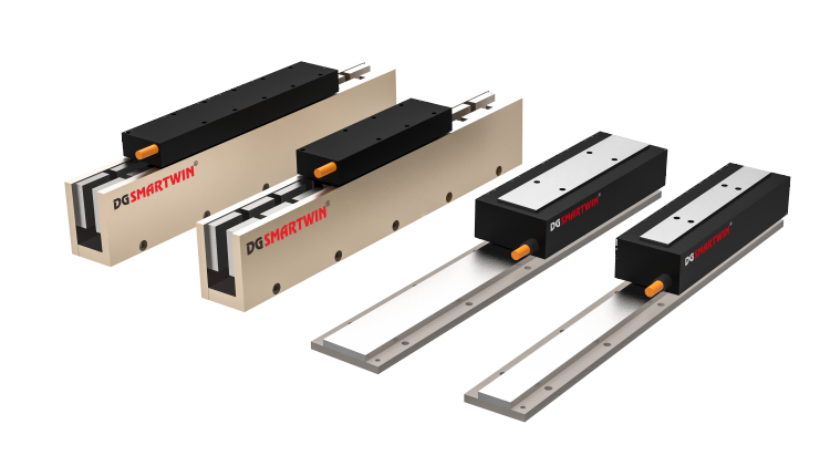

SMARTWIN Dual-Sided Iron-Core Linear Motor: Adopting non-vertical suction design, it unlocks a new paradigm of high-thrust and high-speed motion.

SMARTWIN Dual-Sided Iron-Core Linear Motor: Adopting non-vertical suction design, it unlocks a new paradigm of high-thrust and high-speed motion.

As high-end manufacturing moves toward higher tact speed and higher precision, heavy-duty linear drive systems are facing unprecedented performance constraints. They are required to deliver greater thrust within a limited envelope, while suppressing the inevitable attractive force and cogging vibration that have long plagued conventional single-sided iron-core motors. The inherent physical tradeoff — higher thrust accompanied by stronger vertical attraction — has long become a bottleneck restricting equipment stability and guide rail service life.

Smartwin’s dual-sided iron-core linear motor completely breaks this dilemma with a symmetrical magnetic circuit structure. Relying on the magnetic self-cancellation mechanism of dual-sided iron cores, it achieves zero vertical suction under all operating conditions, while greatly improving magnetic flux utilization. It delivers higher thrust in the same installation space, maintains excellent low-speed smoothness and high-speed dynamic response, and brings a truly uncompromising new paradigm of linear drive for heavy-duty automation applications.

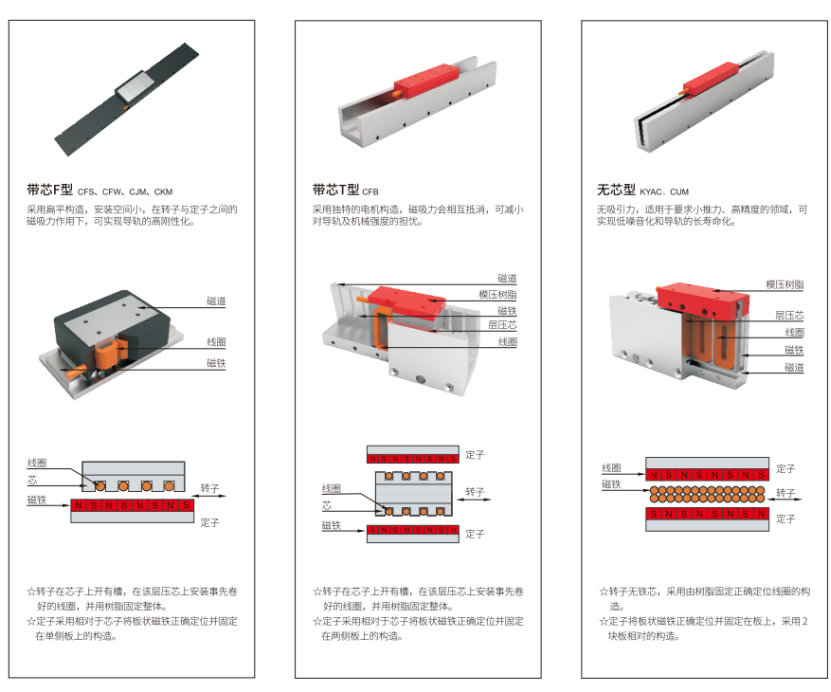

The core advantages of SMARTWIN dual-sided iron-core linear motor stem from its innovative symmetrical structure. Unlike traditional single-sided designs that bear unilateral force, this series adopts a symmetrical arrangement of dual-sided iron cores. The vertical attractive forces generated by the magnetic circuits on both sides cancel each other out, truly achieving operation with zero vertical attraction. The guide rail only bears the dead weight of the load, resulting in a significant reduction in wear and jitter, while positioning deviation and motion smoothness issues are fundamentally resolved.

Meanwhile, the symmetrical magnetic circuit optimizes magnetic flux utilization efficiency. Under the same volume, its thrust density is higher than that of single-sided motors, perfectly meeting the high thrust demands of heavy-load application scenarios. In addition, with optimized cogging force suppression technology, the motor maintains jitter-free and stable operation even at high speeds. Combined with the non-contact transmission structure, it completely eliminates mechanical wear and backlash problems existing in lead screw and belt transmission. It achieves micron-level repetitive positioning accuracy with stable and reliable precision during long-term operation.

From the perspective of engineering application value, SMARTWIN dual-sided iron-core linear motors deliver all-round performance improvements for equipment integrators and end customers.

In the lithium battery industry, they are applicable to processes such as cell handling and pole piece processing, boosting production line cycle efficiency and consistency through high thrust and high speed. In the semiconductor industry, they serve as heavy-load drive axes for large wafer handling and packaging equipment, ensuring long-term stable operation. In the field of laser processing, they provide a high dynamic response drive system for large-scale laser cutting and welding equipment, greatly improving processing efficiency and quality. In general automation scenarios, they can be integrated into heavy-duty assembly lines, logistics handling and other applications to meet high-load and long-travel requirements.

Furthermore, featuring a compact structure and flexible mounting options, the motors can be easily integrated into miniaturized or compact equipment layouts.

Boasting core characteristics of zero vertical attraction, high thrust, high speed and high stability, SMARTWIN dual-sided iron-core linear motors stand as the ideal drive solution for high-end heavy-duty automation scenarios. Whether for equipment manufacturers developing heavy-duty automation machinery or end factories upgrading production lines with intelligent transformation, this series delivers ultimate performance and consistent quality, providing solid reliability to meet customers’ production demands.
