Underlying Motion Cornerstone for AI-Driven Smart Manufacturing: Smartwin Intelligent Equipment BMS-Series Linear Motor Modules

Underlying Motion Cornerstone for AI-Driven Smart Manufacturing: Smartwin Intelligent Equipment BMS Series Linear Motor Modules

Many manufacturing plants have deployed AI visual inspection and flexible assembly equipment. Plenty of equipment R&D engineers focus heavily on visualalgorithm commissioning, yet overlook the fundamental linear motion modules.

Underlying Slides: Easily-Overlooked Key Components in Popularized Smart Factories

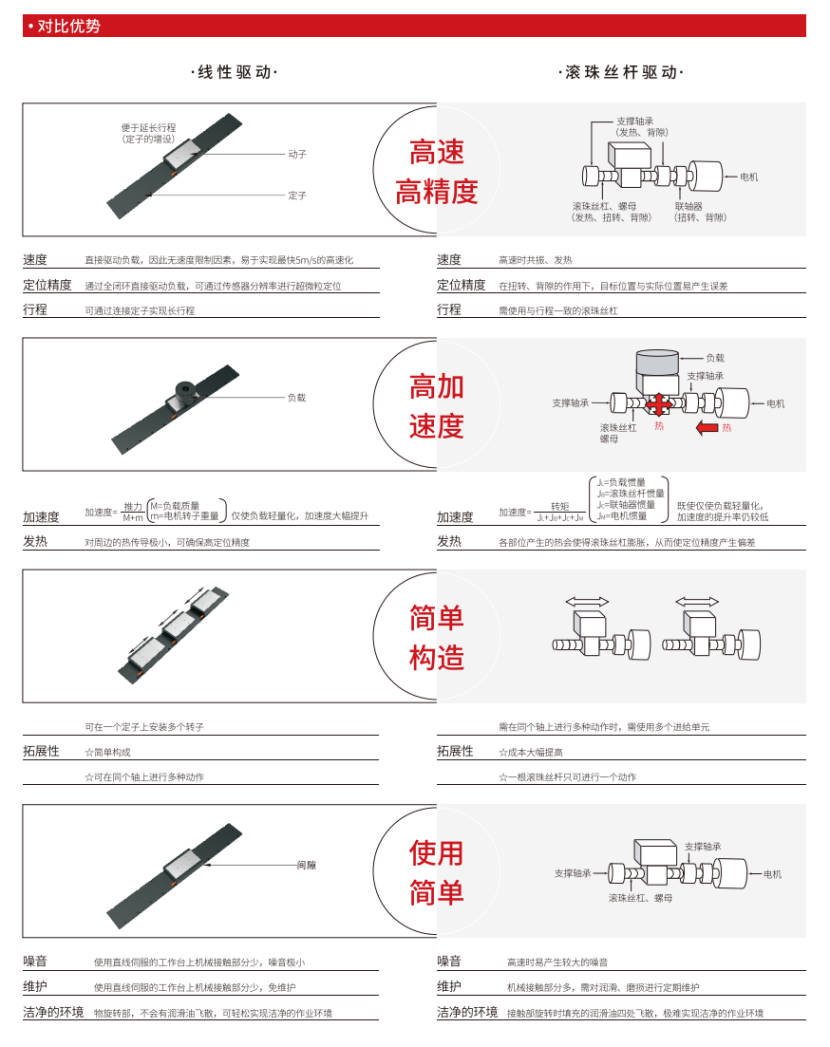

Conventional ball-screw driven modules feature mechanical backlash and slow start-stop response. When the AI system issues commands for dynamic follow-up snapshot capture and frequent station switching, slides fail to keep pace with algorithm rhythm. Positioning deviations will lead to missed workpiece inspection and processing defects, causing unnecessary losses to production lines. As an established player in the direct-drive industry, Smartwin Intelligent Equipment has carried out extensive field visits to numerous smart factories and implemented targeted optimizations for BMS-LMS linear motor modules. Adopting direct-drive motor structure without intermediate transmission parts such as belts and ball screws, the product is free from transmission backlash. It can rapidly respond to commands from control systems and adapt to complex operations including AI visual tracking and fast multi-station switching.

Hardware Structure Adapted to Complex Workshop Environments, Enabling Predictive Maintenance for Deployed Equipment

Smart factories rely not only on algorithms to complete production tasks, but also on collecting equipment operation data to identify potential faults in advance. Grinding dust and volatile electrolyte mist are inevitable in production workshops. The semi-enclosed housing protects guide rails and movers from contaminant erosion, ensuring stable positioning parameters even after long-term module operation. Generating low dust during operation, the module can be directly installed in dust-free AI inspection stations.The external grease port facilitates maintenance-cycle recording by operators. Combined with vibration, travel and temperature data fed back by the built-in encoder, the factory AI management system can analyze the trend of guide-rail wear and schedule maintenance proactively. Emergency repairs after equipment breakdown are avoided, thus preventing unexpected production-line shutdowns. Featuring a maximum speed of 5 m/s and abundant options for thrust and travel specifications, the BMS module fits applications ranging from compact scanning platforms to large-scale flexible worktables.

Compatible with Industrial Communication Protocols to Meet Frequent Product-Change Requirements of Flexible Production Lines

Nowadays, factories are widely undergoing 5G-IoT transformation, and data interconnection among devices has become an essential requirement. The technical team of Smartwin Intelligent Equipment has commissioned communication protocols for module drivers to support mainstream industrial buses available on the market, enabling real-time upload of operating information including load, position and temperature. Production operators can tune module acceleration and deceleration parameters based on the collected data to mitigate vibration caused by high-speed start-stop cycles.For frequent product change-over on flexible production lines, the BMS linear motor module requires no modification of mechanical components. New motion sequences can be adapted simply by adjusting travel and acceleration parameters within the control system. For years, Smartwin Intelligent Equipment has focused on developing core components such as linear motor modules. Hardware is refined based on real-world application scenarios of domestic factories, delivering highlyreliable domestic motion components for factories undergoing intelligent transformation.
