SMARTWIN CKM100 Series: The Reliable Power Workhorse for Heavy-Duty Precision Scenarios

SMARTWIN CKM100 Series: The Reliable Power Workhorse for Heavy-Duty Precision Scenarios

     In high-thrust, heavy-load scenarios, achieving both robust power to support heavy loads and micron-level precision for trajectory control           has long been a tough challenge in precision manufacturing equipment selection—conventional heavy-duty motors are prone to instability,         while precision motors cannot withstand heavy loads. The CKM Series iron-core linear motors, which excel at high-load precision operation,         are the key to breaking this dilemma. As the flagship model of the series, the CKM100 stands out as the core power workhorse for heavy-           duty precision applications.

Core Advantages

· Dual Excellence in Power and Stability: Adopts iron-core technology combined with high-rigidity structural optimization to ensure structural stability during high-thrust output and prevent deformation during operation.

· High-Precision Control: Features ultra-low cogging force design to reduce operational fluctuations. Coupled with lower back-EMF characteristics, it achieves micron-level motion precision, breaking the industry stereotype that "heavy loads inevitably compromise precision".

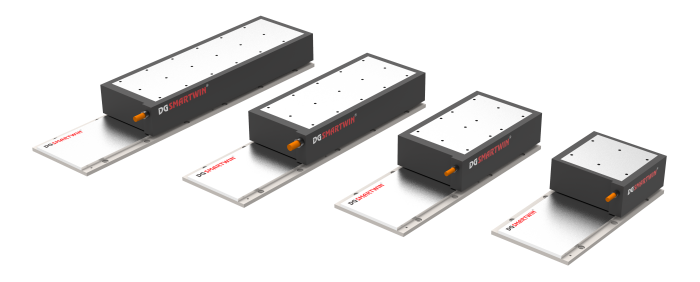

· Low Maintenance Costs: The direct-drive structure eliminates mechanical gaps and wear risks, extending equipment maintenance intervals. Rapid Model Selection and Adaptation: Different mover lengths correspond to different thrust ranges, precisely matching the frame space and power requirements of heavy-duty equipment. No customization is needed, which shortens the equipment R&D cycle.

· Broad Application Scope: Especially suitable for high-end manufacturing fields such as semiconductor wafer inspection, heavy-duty gantry machining centers, laser cutting machines, and precision welding equipment.

From a design perspective, the CKM100 is a product of in-depth insight and implementation of the "heavy-duty precision" requirements. As the flagship model of the CKM Series, its specifications are precisely tailored to the frame space and power needs of heavy-duty equipment. Different mover lengths correspond to distinct thrust ranges, enabling users to quickly select models without customization and significantly shortening the equipment R&D cycle. The high rigidity of the iron-core structure, combined with the low operational fluctuation from ultra-low cogging force, achieves a perfect balance between power and precision. Additionally, the lower back-EMF design ensures precise control even during high-speed, heavy-load operation. Compared with traditional ball screw drive solutions, the direct-drive structure of the CKM100 eliminates mechanical gaps and wear risks, not only achieving micron-level positioning precision but also reducing long-term maintenance costs. In contrast to conventional iron-core motors, it delivers a leap-forward improvement in precision and stability. As an innovator in the motion control field, SMARTWIN's profound expertise in linear motor technology is perfectly embodied in the CKM100 Series.

This motor not only represents SMARTWIN's technological breakthrough in high-thrust linear motors, but also demonstrates its customer-centric corporate philosophy of continuous innovation. Every step, from electromagnetic design and material selection to precision machining, reflects SMARTWIN's unremitting pursuit of quality.
