SMARTWIN CFS065 Series: The High-efficiency Power Choice for Mid-range Precision Applications

In the field of intelligent manufacturing, the demand for high-precision and high-speed motion control is growing day by day. Linear motors have become the core components of numerous high-end equipment due to their advantages of simple structure, precise positioning and rapid response. The CFS065 series iron-core linear motors launched by SMARTWIN Intelligent Manufacturing are outstanding representatives in this field.

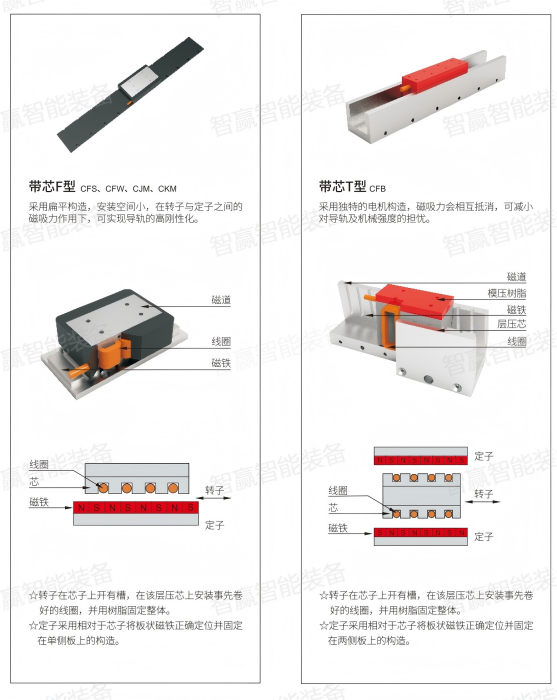

The CFS065 series linear motors adopt iron-core technology, embedding coils into the iron core to generate greater thrust. This design endows the motors with high acceleration performance, enabling rapid start-stop and greatly improving the operational efficiency of equipment. Meanwhile, its low cogging force design effectively reduces vibration and noise during operation, ensuring motion stability and positioning accuracy, which makes it especially suitable for applications with stringent precision requirements. In addition, as a cost-effective product, the CFS065 series not only guarantees high performance but also achieves favorable cost efficiency, providing a cost-effective solution for the automation upgrading of more industries.

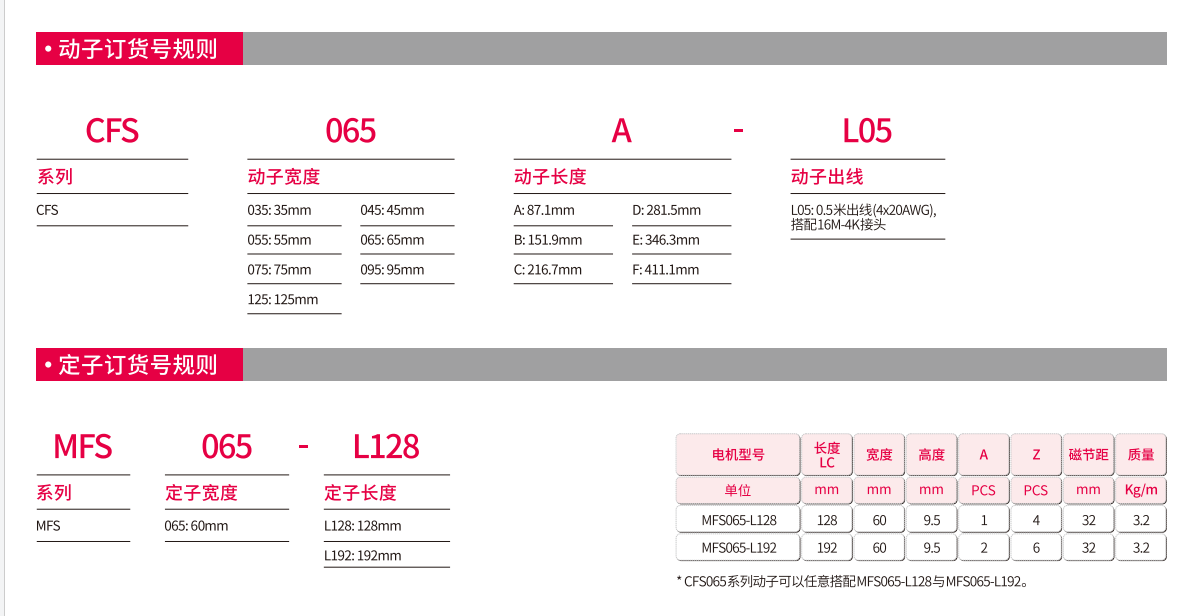

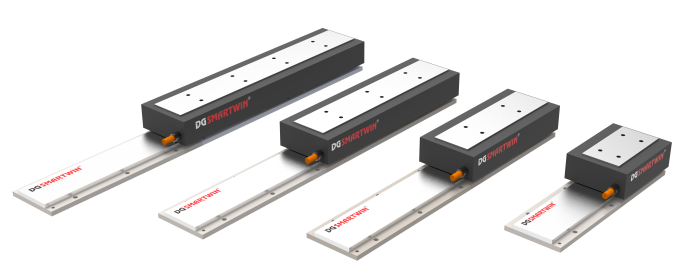

In terms of parameters, to meet the diverse needs of different equipment, the CFS065 series offers a wide range of configuration options. It features a fixed width of 65mm, which is a golden size, and its length covers the full range from 87.1mm to 411.1mm. The continuous thrust accurately falls within the range of 96N to 193N, with the peak thrust reaching 226N to 452N, perfectly matching the load requirements of mid-range precision equipment. Moreover, relying on standardized modular design and integrated injection molding technology, the product consistency is significantly improved, and the production efficiency is 70% higher than that of peers, building competitiveness in both performance and supply chain efficiency.

With its excellent performance and flexible configuration, the CFS065 series linear motors can be widely applied in the following fields:

· Semiconductor manufacturing: Achieving micron-level and even nanometer-level precise positioning in lithography machines and wafer inspection equipment

· Electronic assembly: Providing stable and reliable power for high-speed pick-and-place machines and insertion machines

· Precision testing: Ensuring measurement accuracy in coordinate measuring machines and image measuring instruments

· Laser processing: Meeting the high requirements for dynamic response and positioning accuracy of laser cutting and welding equipment

· From the perspective of product design logic, the CFS065 series is a concrete embodiment of SMARTWIN's concept of "Scenario-based

Precision Empowerment". With completely independent R&D of core technologies, it breaks the monopoly of foreign brands in the mid-range precision linear motor field. While matching the performance of international first-tier products, it also has more controllable delivery time and better cost advantages. For manufacturing enterprises pursuing "high precision, high efficiency and high cost-effectiveness", the CFS065 is not only a power component, but also a core support for promoting the upgrading of mid-range precision equipment.
