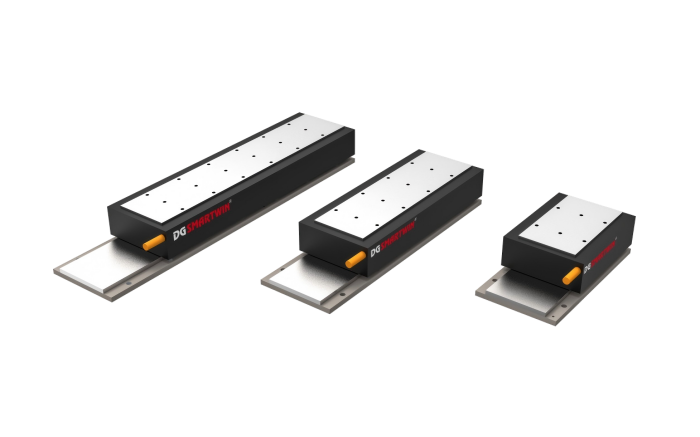

DGSMARTWIN CMW075 Series: High Thrust Density Direct Drive Solution for Medium-High Load Precision Scenarios

In scenarios with strict requirements for thrust and speed, such as automated production lines and heavy-duty handling, a linear motor with both high thrust density and high dynamic response is often the core guarantee for stable equipment operation. The CMW075 Series iron-core linear motors launched by dgsmartwin are high-efficiency solutions tailored for such industrial needs.

Relying on mature iron-core technology, the CMW075 Series has achieved three major breakthroughs in performance:

Super Strong Thrust Output: Through optimized iron core and winding design, it can provide continuous and stable large thrust, easily drive heavy loads, and meet the needs of scenarios such as high-speed stamping and heavy-duty material handling.

Ultra-High Acceleration Response: The compact structural design brings excellent dynamic performance, enabling extremely fast acceleration and deceleration, and significantly improving the production cycle and efficiency of equipment.

Compact and Lightweight Design: While maintaining high thrust density, the motor body is more compact, saving equipment installation space and making the overall layout more flexible.

The parameters of this series are professionally calibrated with clear gradients, fully covering the demands of medium-high load scenarios: in terms of structure, the mover width ranges from 60mm to 120mm, the standard mover outlet is equipped with L05 (0.5m) option, the matching stator model format is MMW075-L96, and the standardized mounting hole layout adapts to the compact layout of equipment; the power and electrical parameters are accurately controllable, the continuous thrust covers 142-283N, the corresponding peak thrust is 441-883N, and combined with optimized phase resistance and phase inductance parameters, the electromagnetic conversion efficiency is excellent. Compared with traditional iron-core motors, it achieves a dual breakthrough of "high thrust and high precision".

Relying on parameter advantages and core selling points, the CMW075 Series has achieved value implementation in diverse medium-high load precision scenarios, adapting to the needs of harsh working conditions. In the field of medium-load handling in 3C electronics, its compact mover length and strong continuous thrust can drive medium-sized workpiece handling modules to run at high speed, and the low cogging force feature ensures the position stability of workpieces during transfer; in the new energy battery manufacturing link, its large thrust advantage can stably drive pole piece cutting and heavy-duty transfer mechanisms, easily meeting the heavy-load needs after pole piece stacking, and the high-rigidity structure effectively offsets the vibration caused by high-speed start and stop, ensuring the flatness of pole piece cutting edges and no deviation during transfer. In the laser processing platform drive scenario, this series is combined with a high-precision grating encoder, which can realize uniform feeding and precise positioning of the laser cutting head, adapting to the core drive needs of medium-sized laser cutting machines.

With its strong thrust and stable performance, the dgsmartwin CMW075 Series iron-core linear motors have become the power core of medium-heavy automated equipment. It is not only an efficient tool to break through production capacity bottlenecks, but also a solid partner for enterprises to build core competitiveness in the wave of intelligent manufacturing.
