As the core light-load model of the independently developed CFS series by dgsmartwin, the CFS035 Series accurately inherits the series' technical genes, with "light-load adaptation, high cost performance, and precise controllability" as its core, becoming the preferred solution for light-load and high-speed scenarios.

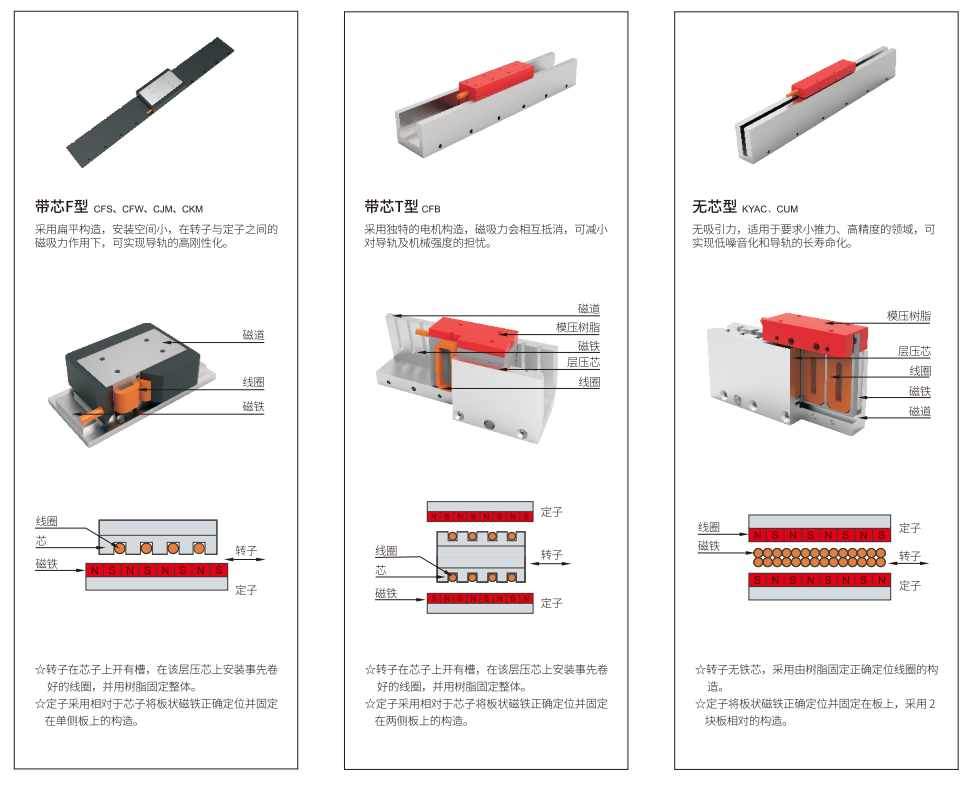

The CFS035 Series inherits the mature advantages of iron-core technology, while focusing more on economy and practicality in design:

High Thrust Density, Suitable for General Scenarios: Through optimized iron core and winding structure, it can provide stable continuous thrust in a compact size, easily coping with conventional industrial scenarios such as material handling and positioning sorting, and meeting the power needs of most production lines.

Low Cogging Force, Stable Operation: Adopting a special cogging optimization design, it effectively reduces thrust fluctuation, ensures stability during medium and low-speed operation, and avoids material deviation or equipment wear caused by vibration.

Economical Design, Cost Control: On the premise of ensuring core performance, it greatly reduces the overall machine cost through standardized components and simplified process design, providing a cost-effective choice for projects with limited budgets.

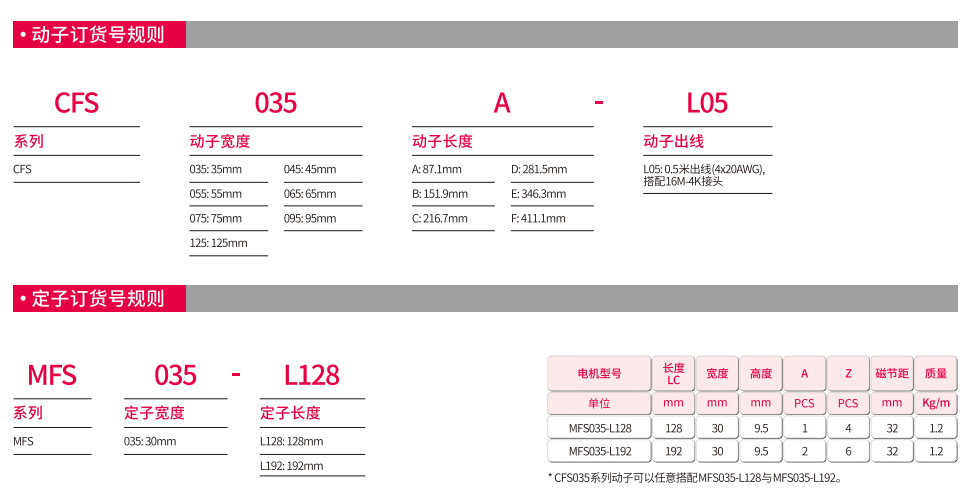

The parameters of this series strictly conform to the overall specification framework of the CFS series, and the detailed calibration is more suitable for light-load needs: in terms of size, the width ranges from 35mm to 125mm, the mover length is divided into six gradients from A to F, covering the range of 87.1mm to 411.1mm, the matching stator model is MFS035-L128, the standard mover outlet is equipped with L05 (0.5m) option, and the compact structure can be embedded into the frame of small equipment; the power and performance parameters have clear gradients, the continuous thrust ranges from 24N (CFS035A) to 145N (CFS035F), the corresponding peak thrust is 53N to 321N, and the low cogging force output is achieved through optimized magnetic circuit design, with the thrust fluctuation controlled at an excellent level in the industry.

With its excellent performance and multiple advantages, this series of motors is highly respected in new energy, 3C automation, semiconductor and other fields, becoming the industry's preferred solution! In the new energy battery field, it is suitable for the small-scale transportation and detection links of battery cells and pole pieces, can stably drive light-load tooling, and the high thrust density feature realizes efficient transmission in a compact space; in the 3C electronics field, CFS035A, with its compact mover length and continuous thrust, is suitable for high-speed handling mechanisms of small connectors and micro-components, the low cogging force feature ensures the position accuracy of components during transfer, and the consistency brought by integral injection molding can meet the strict requirements of mass production; in semiconductor inspection scenarios, this series is combined with a high-precision grating encoder, which can drive small inspection platforms to complete precise positioning, and the stable thrust output and high-speed response capability ensure the micron-level positioning accuracy of inspection probes; in addition, in scenarios such as precise feeding of small automated production lines and auxiliary drive of precision instruments, its standardized interface can quickly connect to the control system, significantly improving integration efficiency, and the high cost performance advantage is more suitable for large-scale applications.

The CFS035 Series not only inherits the reliable quality and technical accumulation of the CFS series, but also breaks the industry misunderstanding that "high precision must mean high cost" with its light-load exclusive parameters and high cost performance advantages, becoming a highly adaptable power solution for promoting the automation upgrade of small and medium-sized manufacturing enterprises, demonstrating dgsmartwin's full-scenario layout capability in the direct drive motor field.
