SMARTWIN CFW030 Series: The High-Speed, Stable Power Core for Compact Precision Equipment

In the drive system design of small-sized precision equipment, the conflict between compact space layout and high-speed stable control often places engineers in a dilemma. They need to fit the motor into narrow frames while ensuring low-speed fluctuation and precise motion tracking during high-speed operation. The launch of SMARTWIN CFW030 series iron-core linear motors perfectly resolves this challenge with its compact size and high performance features.

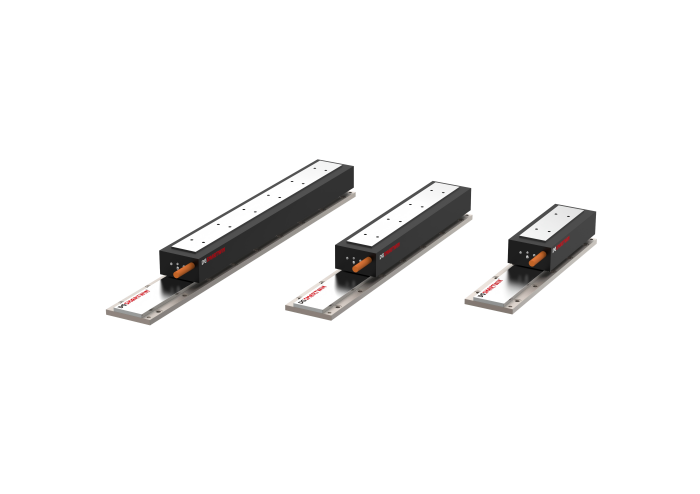

The core competitiveness of the CFW030 series lies in its innovative iron-core technical design. By winding coils on laminated iron cores, this structure greatly improves magnetic field utilization, achieving high thrust density within a compact volume. With a mover width of only 50mm and a length range from 125mm to 230mm, the series can flexibly adapt to different stroke requirements. Meanwhile, the CFW030 series has achieved a breakthrough in ultra-low cogging force. This feature effectively reduces speed fluctuation during operation and ensures motion stability, which is undoubtedly a crucial advantage for application scenarios with stringent motion precision requirements.

In terms of performance, the CFW030 series demonstrates excellent balance capability. It features high acceleration and high speed to meet the needs of high-frequency and high-efficiency operations. The heat dissipation design is another highlight of the series. Its back-integrated high-efficiency radiator ensures stable performance even during long-term, high-load operation. This characteristic makes the CFW030 series particularly outstanding in fields with extremely high thermal stability requirements, such as laser processing and semiconductor manufacturing.

The CFW030 series boasts a wide range of applications, covering almost all industries that require precision motion control:

1. In the new energy sector, the series motors are suitable for key processes such as pole piece cutting and lamination. Their high thrust and low-ripple characteristics guarantee processing precision and efficiency. In addition, the fast response capability and precise trajectory control of the CFW030 series facilitate high-precision cutting of complex workpieces in laser processing equipment.

2. In the semiconductor AOI inspection process, the high-speed adaptability of the series enables the inspection platform to complete chip appearance scanning at a higher beat. Meanwhile, the stable thrust output avoids vibration interference, ensuring the recognition accuracy of micron-level defects.

3. For small precision units that need to upgrade imported equipment, the CFW030 series adopts a 1:1 size-compatible design with international brands. It can directly replace original components without frame modification, which not only shortens the upgrade cycle but also reduces the drive system cost by about 35%. In addition, the advantage of controllable delivery time avoids the supply chain risks associated with imported components.

The launch of the CFW030 series iron-core linear motors not only reflects SMARTWIN's profound accumulation in technological R&D, but also provides strong support for the development of intelligent manufacturing. As the level of industrial automation continues to advance, high-performance, high-precision and high-reliability linear motors like the CFW030 will surely play a key role in more fields and drive the entire industry to move towards a higher level.
