SMARTWIN CJM030 Series: The High-Efficiency Power Core for Compact Precision Automation

SMARTWIN CJM030 Series: The High-Efficiency Power Core for Compact Precision Automation

In the field of compact precision automation, the dual demands of space constraints and high precision with high responsiveness have always been the core challenges in equipment power selection. The launch of the SMARTWIN CJM030 Series iron-core linear motors precisely delivers an efficient solution to this problem. By striking an optimal balance between miniaturization and high performance, it has become the preferred power solution for niche application scenarios.

With iron-core technology at its heart, this product redefines the standards for precision and efficiency in linear motion. Its compact structural design perfectly integrates robust power into a small footprint, making it an ideal choice for applications with limited space yet stringent performance requirements.

Core Advantages

Precision Control & High Responsiveness

· Low Cogging Force Design: Enables ultra-smooth motion with exceptional stability even during low-speed operation.

· Rapid Response Capability: Supports high acceleration and high dynamic response, easily facilitating the control of complex motion trajectories.

High Thrust Density & Efficient Performance

· Iron-Core Technology: Achieves extremely high thrust density within a limited volume, with a thrust range of 68N to 136N.

· High Peak Thrust: Boasts a peak thrust of up to 431N, ensuring stable operation under various load conditions.

High Compatibility & Flexible Installation

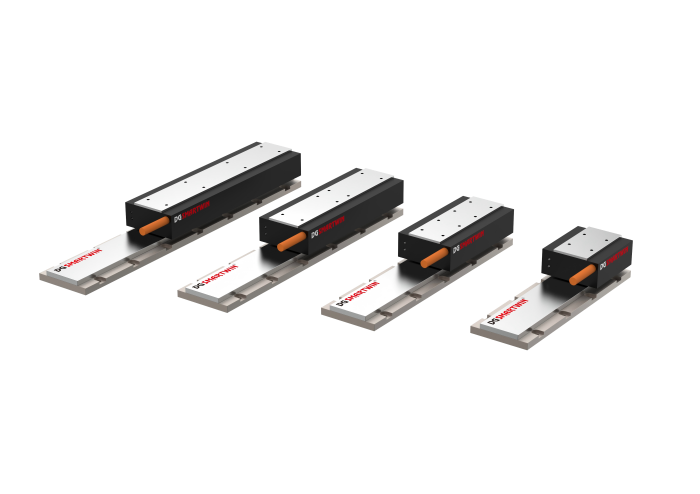

· Diversified Dimensions: Offers four mover widths (50mm, 75mm, 100mm, 125mm) and two stator lengths (96mm, 176mm) for the linear motors.

· Flexible Mounting Options: Supports horizontal, vertical, side-mount and other installation methods to meet the needs of different application scenarios.

The CJM030 Series linear motors have a wide range of applications across multiple precision manufacturing sectors:

1. Semiconductor Manufacturing: Enables high-precision positioning in wafer inspection, packaging and other equipment.

2. Electronic Assembly: Provides stable motion control for high-speed pick-and-place machines and dispensers.

3. Precision Testing: Applied in coordinate measuring machines and optical testing equipment to ensure measurement accuracy.

4. Automated Production: Improves production efficiency in industrial robots and automated assembly lines.

The launch of the CJM030 Series iron-core linear motors marks another major breakthrough in linear drive technology. With its outstanding performance, compact design and wide applicability, it sets a new benchmark in the field of precision motion control. Compared with traditional ball screw drive solutions, the direct-drive structure of the CJM030 Series eliminates mechanical gaps and wear risks. It not only improves positioning accuracy by an order of magnitude, but also reduces long-term maintenance costs and extends equipment service life. For enterprises specializing in compact precision automation, the CJM030 Series is more than just a power component—it is a core enabler for enhancing equipment performance and optimizing production efficiency.
