SMARTWIN CKM030 Series: The Power Solution for Heavy-Duty Precision Scenarios

SMARTWIN CKM030 Series: The Power Solution for Heavy-Duty Precision Scenarios

In precision manufacturing scenarios requiring high thrust and heavy-load capacity, achieving both robust power to support heavy loads and micron-level precision for trajectory control has long been a dilemma for many equipment engineers—conventional heavy-duty motors tend to lose stability, while precision motors cannot bear high loads. The SMARTWIN CKM030 Series iron-core linear motors perfectly address this challenge with their dual advantages of heavy-load capacity and high precision, emerging as an ideal solution to this long-standing problem.

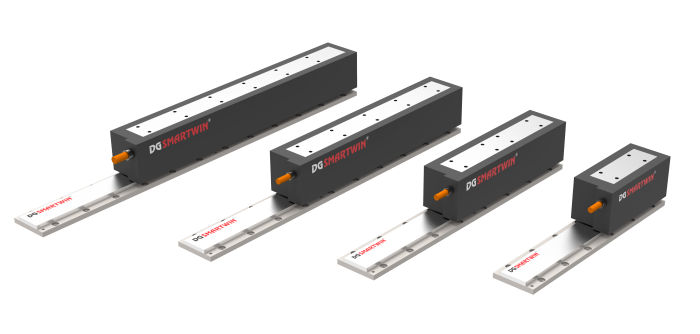

As one of the core models in the CKM Series, it is built on a proven iron-core technical architecture, combined with an ultra-low cogging force design and high-rigidity structural optimization, ensuring both powerful performance and stable precision. Meanwhile, it features high thrust density and a high-rigidity structure; its integrated mechanical design guarantees structural stability during high-thrust output, effectively suppressing vibration and deformation during operation.

Its precise performance makes the CKM030 Series a reliable power workhorse in heavy-duty precision scenarios.

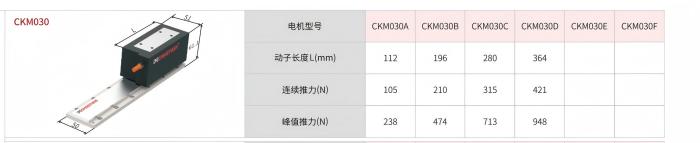

In the handling process of new energy battery pole pieces, its continuous thrust ranging from 105N to 421N can stably lift large-size pole pieces. The high-rigidity structure prevents deformation during handling, and when combined with the smooth operation enabled by low cogging force, it directly reduces material waste in subsequent lamination processes. In large-scale laser precision cutting equipment, its high rigidity and low back-EMF characteristics allow the laser head to cut thick plates at higher speeds, while the trajectory precision remains unaffected by load fluctuations, ensuring superior cutting edge quality. In heavy-duty positioning platform applications, its wide range of dimensions can adapt to different platform frames; the standardized mounting interfaces allow for seamless integration without extensive modifications, and the high peak thrust ensures fast response speeds for platform start-stop operations under load.

The CKM030 Series is a tailored solution for heavy-duty precision requirements. Its full coverage of dimensions and thrust ranges enables flexible adaptation to load variations across multiple sectors such as new energy, laser processing, and heavy-duty automation, allowing for quick model selection without the need for customized development. The high rigidity of its iron-core structure, coupled with the low operational fluctuation from ultra-low cogging force, breaks the industry stereotype that "heavy loads inevitably lead to instability", achieving a perfect balance between power and precision. Additionally, its low back-EMF design ensures precise control even during high-speed operation. Compared with conventional iron-core motors, its precision is improved by an order of magnitude; in contrast to traditional ball screw drive systems, its direct-drive structure eliminates mechanical backlash and wear risks, not only achieving micron-level positioning precision but also doubling the mean time between failures (MTBF) of equipment. For enterprises engaged in heavy-duty precision manufacturing, the CKM030 Series is more than just a motor—it serves as a core power fulcrum that drives dual upgrades in production line efficiency and product yield.
