Amid the trend of equipment miniaturization and integration, how to achieve high-performance motion control within limited space has become a major challenge for engineers. The CJM080 Series iron-core linear motors from SMARTWIN Intelligent Manufacturing perfectly address this issue with their compact design and outstanding performance.

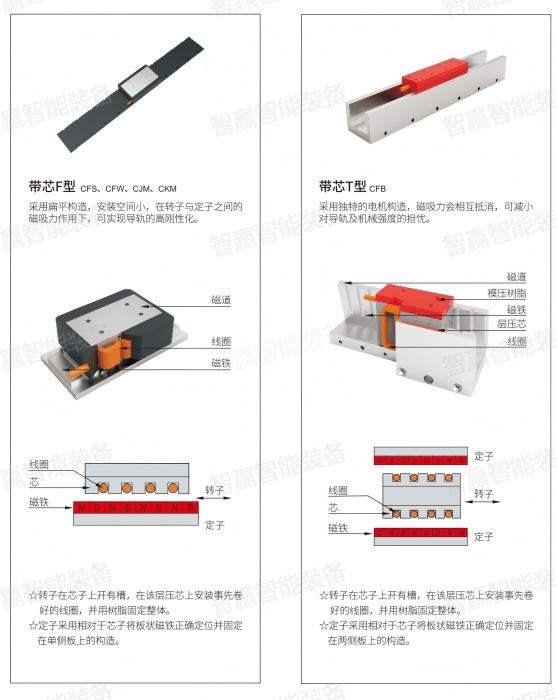

Based on mature iron-core technology, the CJM080 Series linear motors deliver excellent low cogging force and high acceleration within a compact body. Low cogging force ensures smooth motor operation, minimizing vibration and noise, thus providing reliable guarantee for precision operations. The high acceleration feature enables it to complete acceleration and deceleration instantaneously, making it particularly suitable for applications with limited space and frequent start-stop requirements. Its compact design allows easy integration into miniaturized equipment, effectively saving valuable installation space.

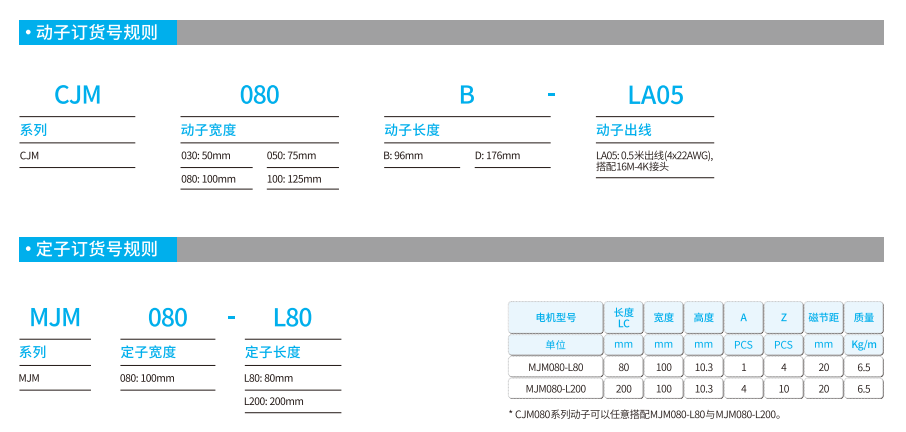

In terms of parameters, it precisely covers the core specification range of the series. The mover width is fixed at the optimally adaptable 100mm, with the length spanning a precise range of 96-176mm. The continuous thrust is stably maintained at 175-349N, and the peak thrust can reach 550-1100N. This not only meets the demands of medium-load applications but also fits the space constraints of small-sized equipment. Compared with similar products, this model not only retains the three core advantages of compact size, stable operation and easy installation, but also achieves a leap-forward improvement in power density through structural optimization, making it the backbone power choice for small-scale precision equipment.

With its compact size and powerful performance, the CJM080 Series linear motors are particularly suitable for the following applications:

· 3C Electronics: Micro-connector assembly, small SMT chip mounters

· Semiconductors: Small wafer handling, chip pin inspection

· Micro-components: MEMS sensor assembly, surface mount component inspection

From the perspective of product design logic, the CJM080 Series is an in-depth segmentation and precise response to the demands of small-scale precision automation. Its standardized modular design and lightweight body not only simplify the installation process but also reduce the overall energy consumption of the equipment. Compared with traditional ball screw drive solutions, the direct-drive structure of the CJM080 completely eliminates mechanical backlash and wear risks while significantly improving positioning accuracy. In comparison with other models in the same series, its parameter range is more closely aligned with the power needs of mainstream small-scale precision equipment, avoiding the dilemma of "power redundancy" or "insufficient power". For enterprises specializing in the field of small-scale precision automation, the CJM080 Series is more than just a power component; it is a core support for enhancing equipment competitiveness and optimizing production efficiency.
