Application of SMARTWIN CFS Series Iron-Core Linear Motors in Laser Precision Machining

As a core process in high-end manufacturing, the precision, efficiency, and yield of laser precision machining hinge critically on the dynamic response, positioning accuracy, and running smoothness of the motion axes. These requirements become even more stringent in scenarios such as cutting hard and brittle materials (sapphire, wafers, ceramics) and laser etching of ITO silver paste.

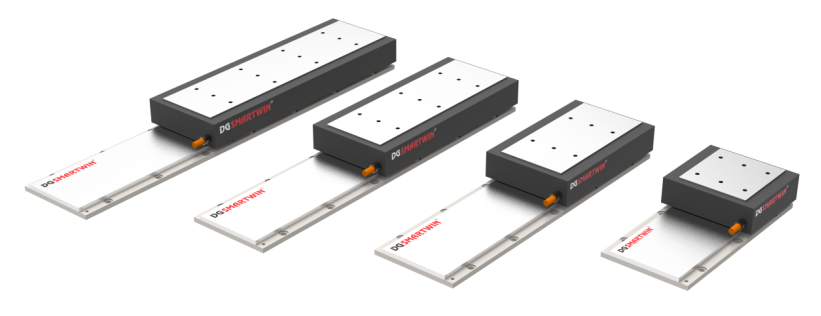

The CFS series iron-core linear motors developed by Dongguan SMARTWIN Intelligent Equipment Co., Ltd. are engineered specifically to address the core demands of laser processing. Through targeted technical optimizations, they achieve an optimal balance of low cogging force, high thrust density, superior acceleration performance, and cost-effectiveness. Breaking the traditional trade-off between performance and cost for linear motors, they have become a key enabler for domestic laser equipment to upgrade technology and overcome bottlenecks in core components, delivering a professional, practical direct-drive motion control solution for high-end laser manufacturing.

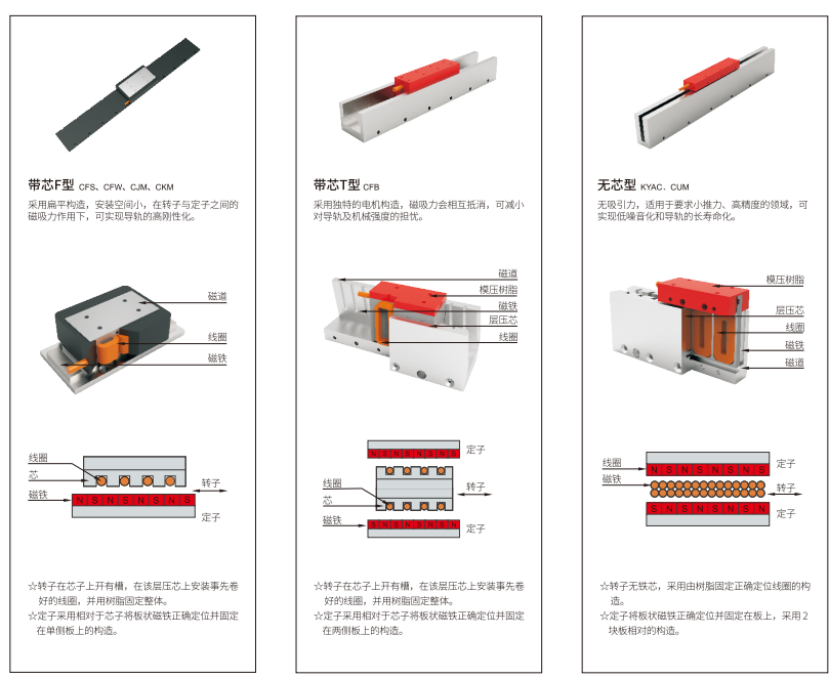

All core strengths of the CFS series iron-core linear motors are developed targeting actual pain points in laser processing. By optimizing core slot structure, magnetic circuit arrangement and winding technology, it effectively suppresses the cogging effect of conventional iron-core motors and keeps thrust ripple at an extremely low level. It fundamentally eliminates edge chipping, micro-cracks and deteriorated surface roughness caused by speed fluctuation during machining, ensuring intact edges and mirror-grade surface finish when processing hard and brittle materials.

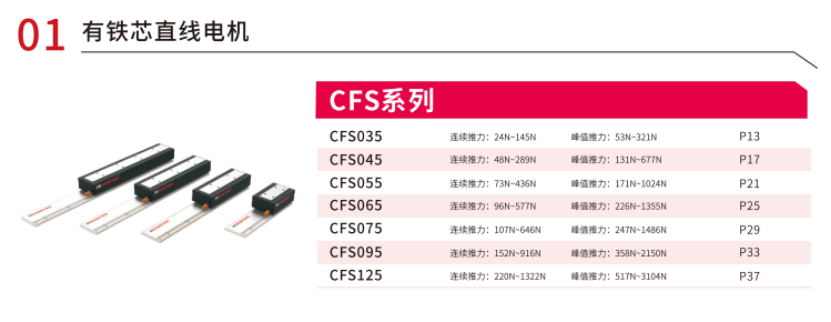

Benefiting from high magnetic flux utilization of iron-core structure, the motors feature outstanding thrust density. Its continuous thrust ranges from 24N to 1322N and peak thrust from 53N to 3104N across full models, matching load demands of laser processing equipment of various specifications. Excellent acceleration performance greatly cuts non-processing time in frequent start-stop and rapid interpolation operations, boosting overall equipment efficiency to meet high-volume and high-takt production requirements.

Furthermore, structural optimization and mass production realize cost control without compromising core performance. Its complete product lineup covers diverse application scenarios from miniature precision etching machines to large wafer cutting machines, offering laser equipment manufacturers a cost-effective direct-drive upgrading solution.

As a leading domestic manufacturer in the field of direct-drive motion control, SMARTWIN Intelligent Equipment not only supplies high-performance core components for the laser industry via CFS series iron-core linear motors, but also establishes a full-range service system including pre-selection, customized development and commissioning optimization.

We can provide targeted model selection matching and customized design support according to customers’ equipment load, stroke, dynamic indicators and process requirements. In combination with the control structure of laser processing equipment, we complete parameter optimization and algorithm adaptation, helping clients swiftly finish equipment performance debugging and achieve mass production launch.

At present, domestic laser equipment is shifting its competitive edge from cost advantage to technological advantage, and independent control over core motion components has become a key breakthrough point. The popularization and application of SMARTWIN CFS series iron-core linear motors represent not only important achievements in domestic direct-drive technological innovation, but also practical efforts to drive the upgrading of high-end laser manufacturing industry. Going forward, SMARTWIN will continue to deepen R&D in direct-drive technology and launch more well-adapted products, helping domestic laser equipment strengthen core competitiveness in the global high-end manufacturing market.
