Dual-track Layout of Magnetic-Electric and Optical Technologies: Smartwin Intelligent Equipment Encoders Meet Feedback Requirements of High-End Transmission Components

Dual-track Layout of Magnetic-Electric and Optical Technologies: Smartwin Intelligent Equipment Encoders Meet Feedback Requirements of High-End Transmission Components

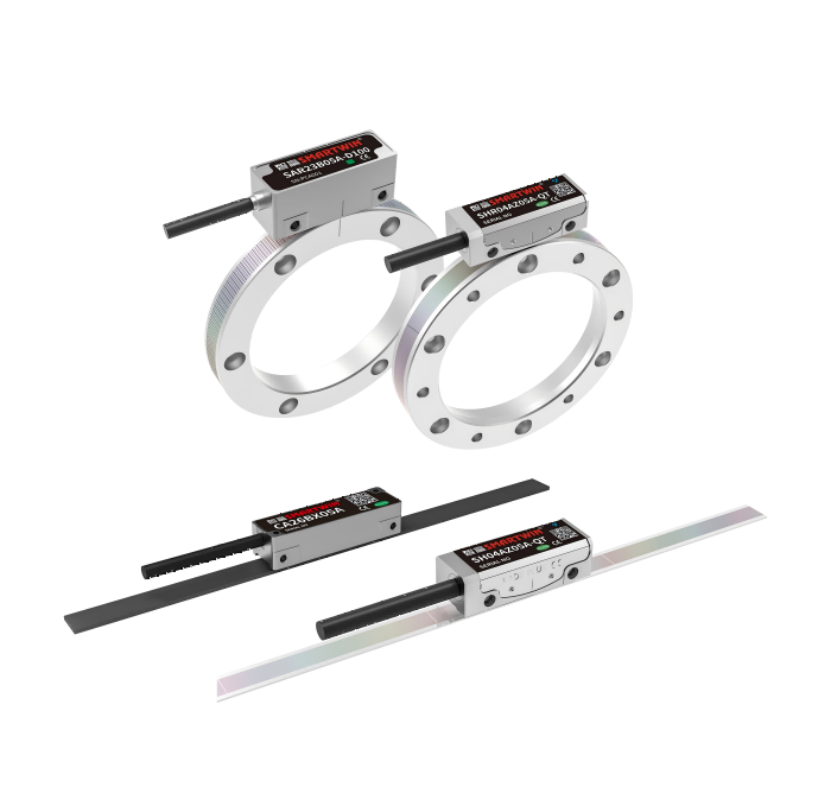

Position-feedback encoders serve as the sensing core within the entire motion-control system. The resolution capability, anti-interference performance and environment adaptability of encoders play a decisive role in whether linear motors, torque motors and precision slides can achieve micrometer-level positioning accuracy. With the rapid rise of China’ s high-end automation equipment industry, downstream sectors including semiconductor equipment, precision medical instruments, optical inspection platforms and servo transmission mechanisms show continuously growing demand for localized encoders. As a domestic component manufacturer, Smartwin Intelligent Equipment has in-depth expertise in position-sensing feedback. It pursues simultaneous development of two major technical routes: optical encoders and magnetic encoders, and delivers tailored sensing solutions for diverse working conditions.

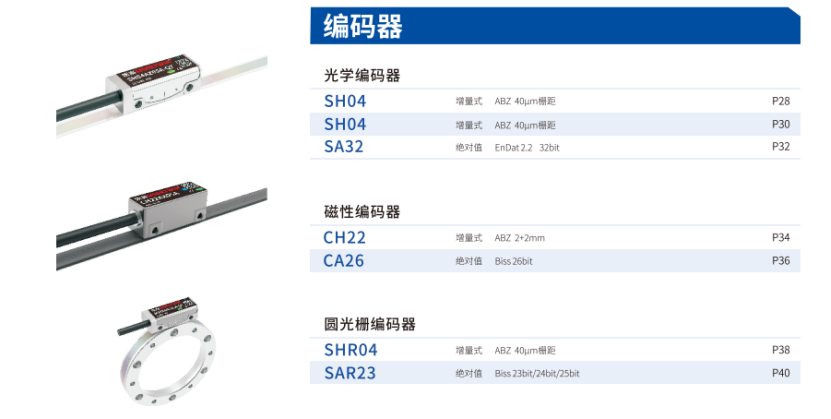

Optical encoders deliver ultra-high-resolution readings thanks to the fineness of grating scribes, making them suitable for linear motor modules and precision rotary platforms in clean-room environments. Smartwin optical-series encoders adopt imported grating substrates and optimize the optical path for signal reception. Multi-order interpolation algorithms process raw grating signals to realize micrometer-level position interpretation. For high-speed rotation and high-speed linear feed conditions, the products feature anti-jitter signal processing to avoid position count jumping at high speeds. The enclosed housing structure blocks dust and moisture, enabling adaption to general industrial workshop environments. Magnetic encoders read displacement via magnetic scales and magnetic-sensing chips. Compared with optical encoders, they boast superior environmental resistance against dust, cutting fluid, vibration and shock, are well-suited for harsh working conditions such as heavy-duty linear modules, industrial torque motors, outdoor equipment and metal-cutting machine tools. Smartwin Intelligent Equipment optimizes the signal demodulation algorithm for overcome the accuracy limitations of conventional magnetic encoders. Multiple magnetic encoder products now achieve micrometer-level repeat positioning performance, combining the advantages of low cost, long service life and maintenance-free operation.

In terms of product matching, Smartwin encoders are factory-calibrated for the full set of transmission components including its own linear motor modules and frameless torque motors. Motors, movers and feedback components are matched and commissioned before delivery. After purchasing the complete transmission lit, customers can proceed directly with installation and commissioning, eliminating tedious procedures of encoders adaption and signal tuning.

Meanwhile, the products support multiple communication output formats, including mainstream protocols such as BiSS-C and EnDat, and are compatible with mainstream motion controllers at home and abroad.

Customization also constitutes one of the core competencies of Smartwin Intelligent Equipment. Custom development is available according to customers’ requirements for installation space, outer-dimensional size, hollow shaft, protection rating and temperature-resistance range. Numerous high-end equipment manufacturers are currently confronted with challenges such as long lead-times, high costs and slow after-sales response for imported encoders, making domestic substitution an irresistible industry trend. Smartwin adheres to independent R&D of sensing algorithms and keeps tackling technical challenges including high-speed interpolation, electromagnetic anti-interference and low-temperature drift competition. It equips domestic precision transmission components with reliable "sensing eyes" and facilitates independent controllability of the high-end equipment industrial chain.
