Smartwin DD Motors Solve the Accuracy Degradation Challenge of Automated Rotary Stations

Smartwin DD Motors Solve the Accuracy Degradation Challenge of Automated Rotary Stations

1. Shortcomings of Traditional Rotary Transmission Structures Become Prominent, Ushering in an Industry Upgrade Opportunity for Direct-Drive Solutions

In high-end automated equipment for lithium batteries, semiconductors, precision inspection, and photovoltaics, the operational performance of rotary stations directly determines the overall equipment yield and production line uptime. At present, a large number of devices still adopt the traditional solution of servo motors matched with reducers. Though cost-effective and technically mature, this solution exposes amplified inherent defects in scenarios requiring high precision, high cycle efficiency, and long-term continuous production. Gear meshing inevitably generates backlash. Repeated forward and reverse operation aggravates mechanical wear and accumulates angular errors, leading to positioning deviation and declining repeatability after long-term equipment operation. To maintain process standards, devices require frequent shutdowns for calibration and gear replacement, which increases operation and maintenance costs and interrupts continuous production workflows.

As smart manufacturing raises higher requirements for equipment stability, consistency, and maintenance-free performance, traditional transmission solutions can no longer keep pace with the iteration of high-end equipment. Zero-backlash and low-wear DD direct-drive motors have emerged as a prime upgrade choice for rotary station applications. Beyond theoretical torque and speed parameters, practical performance in mass production scenarios is substantially influenced by load inertia matching and environmental adaptability to workshop conditions.

2. Zero-Backlash Direct-Drive Body Design for Long-Term Stable Angular Positioning

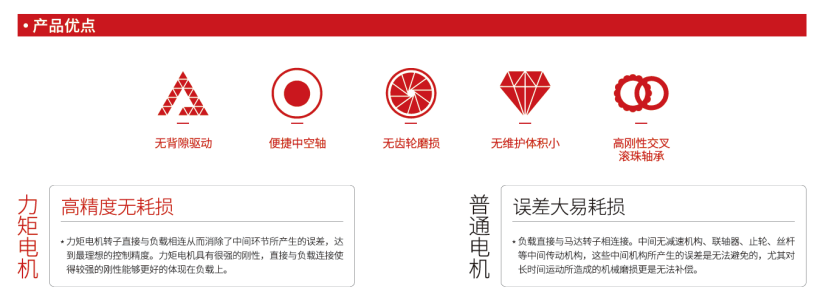

Smartwin DD motors adopt a pure direct-drive architecture that eliminates all intermediate transmission components including reducers, belts and gears. The motor output flange connects directly to the load, physically removing transmission backlash. Unlike conventional transmission mechanisms, it is free from issues caused by gear wear, backlash rebound and lubricant aging. Whether for high-frequency reciprocating rotation or long-duration position holding, angular positioning consistency can be maintained over the long term without accuracy degradation with operating time.

Benefiting from in-house optimized magnetic circuit design, the motor features higher torque density and fast response with minimal start-stop shock and excellent jitter suppression. It is well suited for precision processes such as multi-angle vision inspection, wafer alignment, cell rotary testing and silicon wafer sorting. In working conditions with strict requirements for imaging quality and angular consistency, it effectively prevents false detection and missed inspection induced by rotational jitter, substantially improving equipment inspection accuracy and finished product yield. Many equipment failures do not stem from substandard motor hardware, but from mismatched inertia between load and motor. During the pre-project solution consultation phase, Smartwin assists engineers with inertia calculation to reduce on-site commissioning risks at the source.

3. Adapted to Complex Domestic Workshop Conditions to Effectively Reduce Equipment Operation and Maintenance Burden

Industrial sites in China feature widely varying working conditions. Lithium battery workshops are filled with dust and corrosive mist; semiconductor workshops suffer heavy electromagnetic interference and temperature fluctuations; photovoltaic production lines require 24-hour continuous full-load operation. All these impose stringent tests on the environmental adaptability of motion components. Many imported DD motors are developed for clean laboratory environments. When deployed in domestic factories, they are prone to thermal drift, unstable signals and shortened service life.

Smartwin optimizes product structure and electrical performance based on real local industrial scenarios, enhancing anti-interference, dustproof and temperature resistance capabilities for long-term stable operation under complex working conditions. The direct-drive structure contains very few wearing parts. Periodic consumable replacement and frequent zero-point calibration are unnecessary, which effectively cuts the frequency of equipment shutdown for maintenance. It perfectly meets the high uptime production requirements of the new energy and semiconductor industries.

4. Project-Based Customization Capability Aligns with the Miniaturization and Integration Trend of Equipment

Automated equipment is generally evolving toward compactness, light weight and integration, leaving limited internal installation space. Standard motors can hardly satisfy special requirements such as irregular structures, confined spaces and hollow routing. As an original R&D and manufacturing supplier, Smartwin boasts a full DD motor product portfolio and supports project-specific customization of bore diameter, thickness, torque, mounting interface and protection rating.

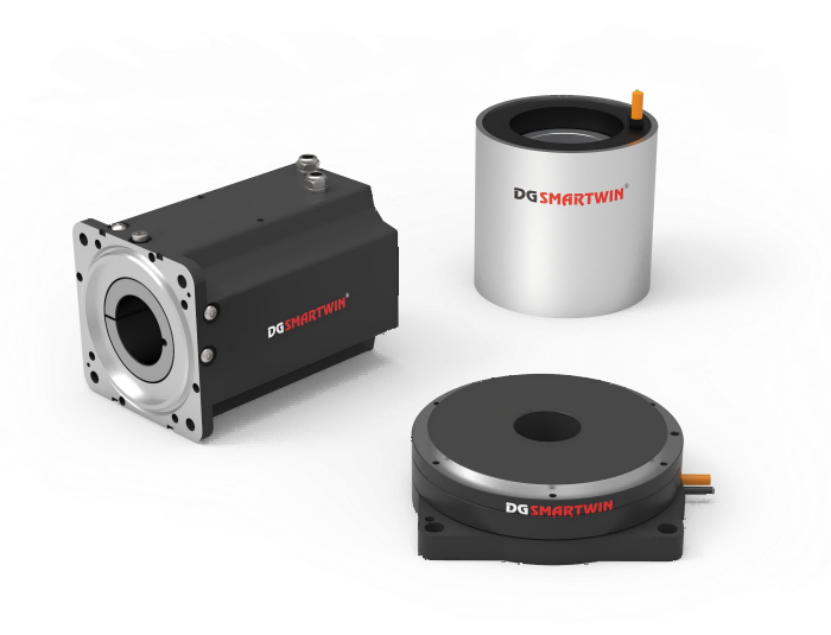

Hollow DD motors allow optical paths, wiring harnesses and air pipelines to pass through the central bore, simplifying the overall mechanical layout for a more compact equipment design. Incremental or absolute encoders are available as options. Compatible with mainstream industrial buses, the motors can seamlessly connect with widely used motion control systems, helping equipment manufacturers shorten prototype commissioning and complete machine development cycles.

5. Domestic Independent R&D Substitution to Break the Import Monopoly of High-End Direct-Drive Components

The high-precision DD motor market has long been dominated by overseas brands, featuring high procurement costs, long lead times and slow after-sales response. In the event of equipment failure, long waiting periods for spare parts directly delay project schedules and production line output.

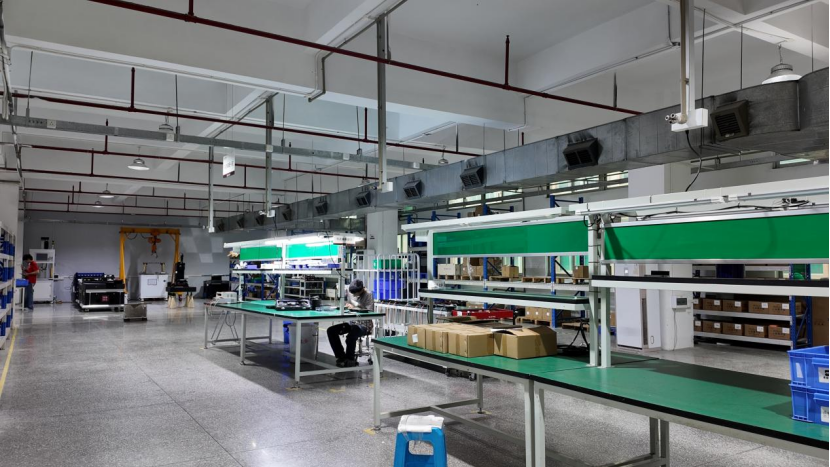

Smartwin achieves full in-house R&D, manufacturing, calibration and system matching of DD motors. Its products match imported counterparts in performance while offering pricing and lead times better suited to the practical needs of domestic equipment enterprises. We provide full-cycle local services ranging from standard models and customized solutions to technical consultation and on-site after-sales support. This helps automation equipment manufacturers optimize supply chains, reduce total machine costs, reduce reliance on imported components, and advance the localization of high-end rotary direct-drive parts.
