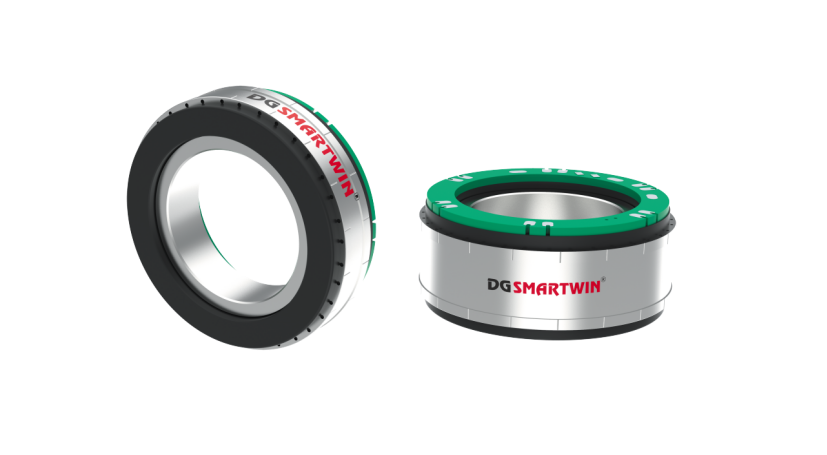

DGSMARTWIN DBM Series: Forge A New Benchmark for Direct-Drive Rotation

Which is the best frameless DD motor manufacturer? DGSMARTWIN DBM Series sets a new benchmark for direct drive rotation.

Against the backdrop of technology deeply empowering the manufacturing industry and the comprehensive upgrade of high-end equipment toward ultra-precision, high-speed and intelligent development, the accuracy bottlenecks and efficiency shortcoming of traditional intermediate transmission mechanisms such as gears and belts have become core obstacles restricting the performance improvement of precision-driven testing, intelligent production lines and high-end equipment. Frameless DD motors (direct drive torque motors), with their core advantages including zero transmission backlash, high torque density and high dynamic response, have become core power components for achieving precise control and high-speed flexible production in manufacturing scenarios. Which is the best frameless DD motor manufacturing? The DBM series frameless torque motors launched by DGSMARTWIN, with advanced technology, full-scenario adaptability and high reliability, have become the preferred solution for domestic substitution of high-end equipment, injecting strong momentum into the upgrading of empowered intelligent manufacturing.

Leveraging DGSMARTWIN’s more than ten years of technical accumulation in the direct drive field, the DBM series frameless DD motors feature five core performance advantages to precisely address industry pain points.

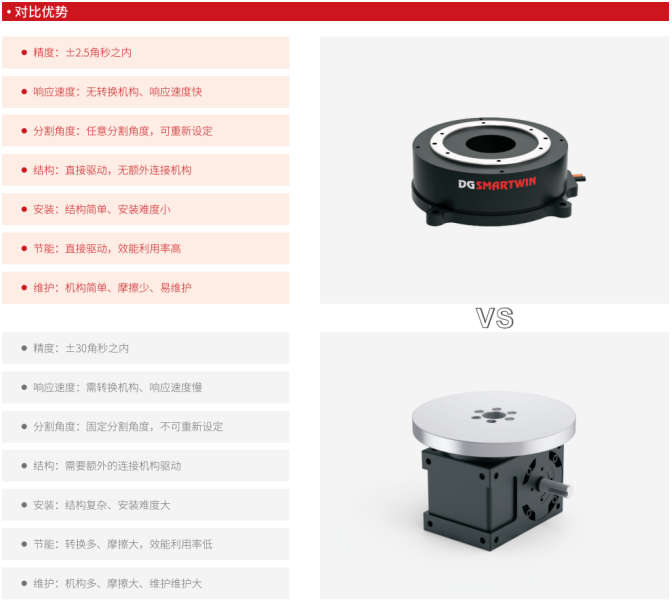

First, they adopt a low cogging force design. By optimizing the magnetic circuit structure and winding arrangement, cogging torque is fundamentally minimized, enabling ultra-smooth low-speed operation. This completely eliminated jitter and backlash inherent in traditional transmissions, making them ideal for vision inspection, ultra-precision machining and other high-precision applications.

Second, they deliver high torque density, providing powerful torque within a compact footprint. The continuous torque covers a wide range from 0.3N.m to 153 N.m, with peak torque reaching up to 438N.m. They easily handle heavy-duty rotation and high-speed start-stop conditions, providing key support for the development of miniaturized and integrated intelligent equipment.

Third, they exhibit low speed ripple, exceptional high-speed and high-acceleration performance. The optimized electromagnetic structure enables fast response and frequent start-stops, meeting dynamic performance requirements in flexible automated production lines, precision rotary stages and other scenarios. Significantly improving production efficiency.

Fourth, they feature a standard high-voltage insulation design compatible with various industrial drive systems. Equipped with an integrated thermistor, they allow real-time temperature monitoring, ensuring safe and reliable operation and greatly extending service life.

Fifth, the frameless, split-type structure is compact and can be directly integrated into the customer’s mechanical system without additional transmission components. This greatly simplifies equipment design, reduces complexity and maintenance costs, and suits precision inspection equipment with limited installation space.

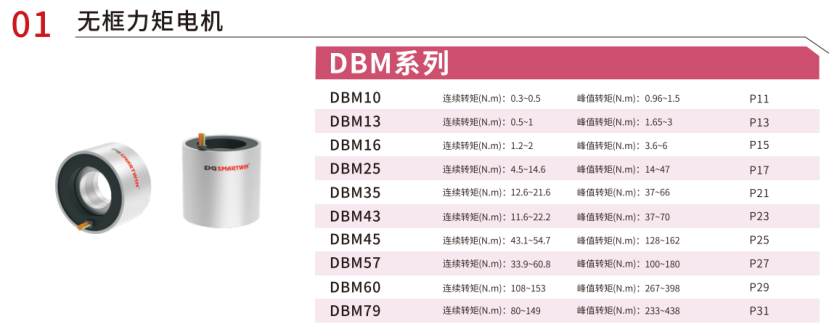

To meet the application requirements of various industries and load conditions, the DBM series offers a complete product matrix covering the full torque range. With 10 standard models from DBM10 to DBM79, and outer diameters ranging from 50mm to 259.7mm, it can be flexibly adapted to full-scenario applications, from micro precision inspection equipment to large heavy-duty rotary stages. Customized design is also supported, allowing tailored development based on customers’ installation dimensions, torque requirements, protection ratings and other specifications, truly realizing on-demand matching and precise empowerment. At present, DBM series frameless DD motors have been widely used in many high-end manufacturing fields, including semiconductor water inspection, precision machine tool rotary stages, medical imaging equipment, automated sorting lines, and 3C electronic precision assembly, providing core power support for manufacturing upgrading across industries.

As a national high-tech enterprise specializing in direct-drive motion control, DGSMARTWIN has achieved full-process independent R&D and mass production of the DBM series. From magnet design and winding technology to complete machine testing, all core links are independently controllable. The products have passed stringent reliability verification, ensuring long-term stable operation under high-load conditions. In addition, DGSMARTWIN has established a comprehensive full-process service system, providing customers with one-stop services including selection consultation, customized development, and after-sales maintenance. This helps domestic high-end equipment manufactures break the technological monopoly of overseas brands and achieve independence and controllability of core components, injecting core momentum into the high-quality development of China’s high-end manufacturing.
