Smartwin CFW030 and CFW045 Series Iron-Cored Linear Motors: Precision Direct-Drive Solutions Tailored for Diverse Applications

Amid the wave of upgrading automation equipment toward higher speed, higher precision and higher reliability, linear motors, as core drive components, directly determine the operational efficiency and machining accuracy of the equipment. Independently developed by Dongguan Smartwin Intelligent Equipment Co., Ltd., the CFW030 and CFW045 series iron-cored linear motors leverage the core advantages of iron-cored technology and modular design philosophy to become the preferred direct-drive solutions for 3C electronics, semiconductor, precision manufacturing and other fields, precisely matching the dynamic requirements of different application scenarios.

I. Core Features: Technology Empowerment, Performance Benchmark

(1) CFW030 Series: Compact, High-Efficiency and Precision-Controllable

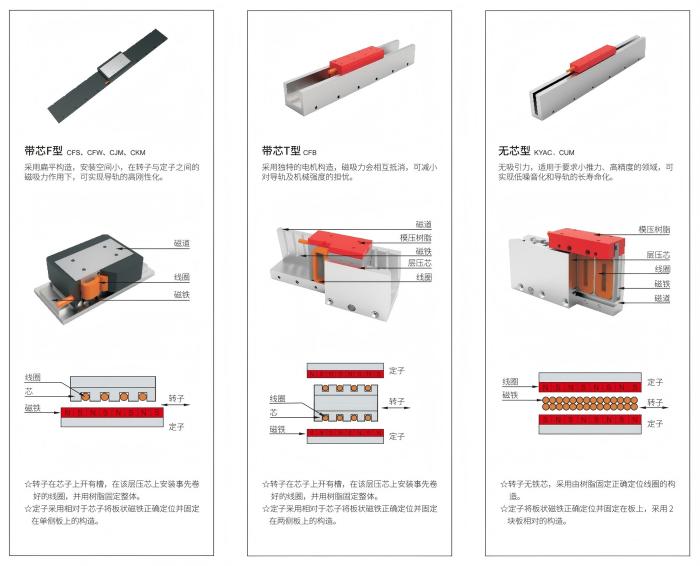

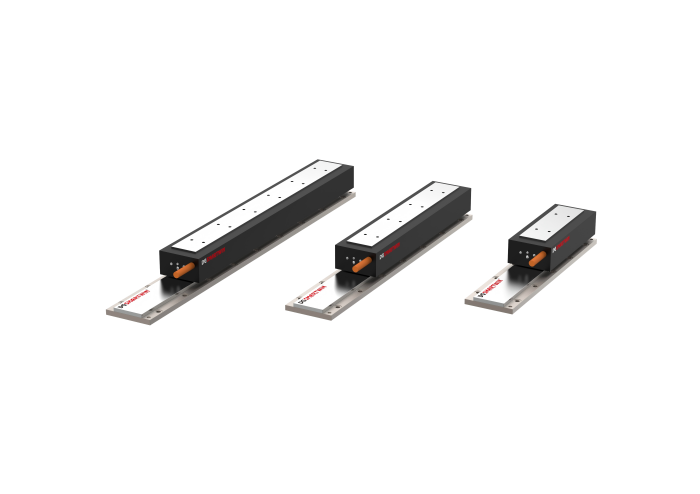

As a representative of miniaturized iron-cored linear motors, the CFW030 series focuses on small-space and high-precision application scenarios with prominent core features. Adopting advanced iron-cored technology, it achieves high thrust density while realizing an ultra-low cogging force design, which effectively reduces speed fluctuations during operation and ensures the stability and tracking precision of equipment operation. The product features a highly compact design with a mover length ranging from 125mm to 230mm and a width of only 50mm, enabling flexible adaptation to the installation requirements of precision equipment with limited space. It also boasts high acceleration and high-speed performance. Combined with the optimized electromagnetic structure design, it features low back electromotive force and fast response, supporting high-frequency rapid positioning movements.

(2) CFW045 Series: High-Strength, Stable and Versatile

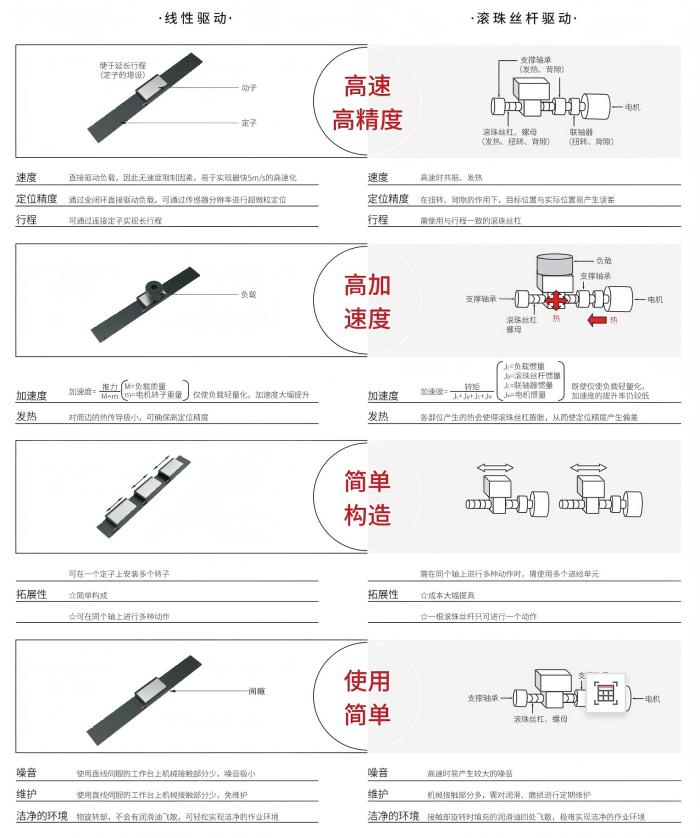

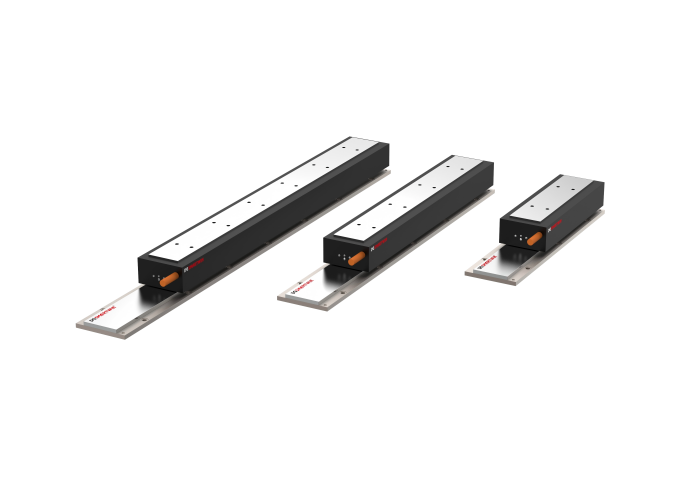

Designed for medium-load and high-demand scenarios, the CFW045 series achieves performance upgrades while inheriting the core advantages of iron-cored technology. It also has the characteristics of ultra-low cogging force, small tracking error during operation and excellent positioning accuracy, meeting the stringent requirements for motion stability in precision machining. The mover length range is extended to 205mm-384mm, and the width range covers 69.5mm-160mm, with stronger structural rigidity to withstand greater load impacts. Compared with the CFW030 series, it delivers significantly improved thrust output while maintaining high acceleration performance, balancing power output and operational precision to adapt to diverse medium and heavy-load application scenarios.

II. Core Advantages: Distinctive Competitive Strength

(1) CFW030 Series: Small yet Sophisticated, Efficiency-Driven

The integration of standardized and modular design with one-piece injection molding technology greatly improves product consistency, with production efficiency leading the industry by 70%, effectively ensuring supply stability.The ultra-compact size design enables high-efficiency power output in a miniaturized body, featuring strong installation adaptability to perfectly match the spatial layout requirements of micro precision equipment.It combines low cogging force and high response speed with high repeat positioning accuracy, meeting the high-frequency precision motion requirements of scenarios such as micro-component processing and micro-assembly.With reasonable cost control, it offers higher cost performance and shorter delivery times compared with similar imported products under the premise of equivalent performance.

(2) CFW045 Series: High-Strength yet Stable, Compatible and Upgradeable

III. Key Parameters: Precision Matching of Dynamic Requirements

(1) Core Parameters of CFW030 Series

In terms of stator dimensions, the CFW030 series offers optional stator lengths of 180mm (L180) and 270mm (L270), with a mass of 3.4kg/m and a magnetic pitch of 30mm, adapting to different stroke requirements.

(2) Core Parameters of CFW045 Series

Optional stator lengths include 204mm (L204) and 306mm (L306), with a stator width of 75mm and a pitch tailored to equipment installation requirements.

IV. Application Scenario Solutions: Precision Empowerment for Industry Upgrading

With comprehensive advantages such as ultra-low cogging force, high acceleration, high positioning accuracy and strong adaptability, the CFW series iron-cored linear motors are widely used in multiple precision manufacturing and automation fields, providing integrated direct-drive solutions for scenarios with different load, space and precision requirements:

• Semiconductor Field: Adapted for semiconductor AOI inspection equipment, it adopts an application structure of "linear motor XY + DD motor R axis". Featuring high speed and high response, it achieves a repeat positioning accuracy of ±0.5μm and a positioning accuracy of ±1μm, compatible with point-to-point and line scan applications for precise identification of micro-defects on chips.

• Laser Processing Field: Suitable for laser cutting and laser chamfering equipment with a marble platform XYY structure and interpolation linkage control. It delivers a repeat accuracy of ±1μm, positioning accuracy of ±2μm, straightness of ±3μm and perpendicularity of ±5μm, enabling high-precision interpolation motion to meet precision machining needs.

• Precision Manufacturing and Inspection Field: Covering scenarios with strict requirements for operational tracking error and speed fluctuation, such as micro-component processing and precision instrument drive. Relying on the characteristic of low back electromotive force, it is also suitable for the dynamic requirements of high-speed operation equipment.

•
