DGSMARTWIN DH05 Series: Core Power for Precision Empowerment of High-End Manufacturing

DGSMARTWIN DH05 Series: Core Power for Precision Empowerment of High-End Manufacturing

In the field of high-end manufacturing, motors are the "heart" of equipment, directly determining production precision, efficiency and stability. The DH05 Series modular torque motor launched by Dongguan dgsmartwin Intelligent Equipment Co., Ltd., with its modular design, excellent torque performance and precise control capability, has become the core power for the upgrading of high-end manufacturing, providing efficient and reliable power solutions for automation equipment, precision machining and other fields.

The core competitiveness of the DH05 Series lies in its standardized modular architecture, which is optimized around "flexible adaptation". The order number rule is clear, and it can be quickly combined and configured according to the needs of equipment load, installation space, control precision, etc., greatly shortening the selection cycle and customization cost. This series inherits the advantage of miniaturization technology; the 138mm frame size can be embedded in compact spaces. Equipped with standardized connectors and flexible outgoing line solutions, it achieves "plug-and-play" for single-machine replacement and batch production line upgrading, improving the flexibility and expandability of the manufacturing process.

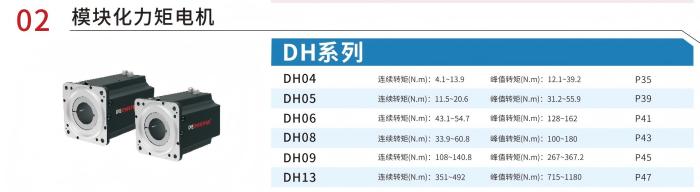

Through the optimization of electromagnetic design and material technology, the DH05 Series has outstanding core performance. The series includes two models: DH051 and DH053, which are suitable for medium-low and medium-high load scenarios respectively. The continuous torque ranges from 11.5Nm to 20.6Nm, and the peak torque can reach 31.2Nm to 55.9Nm. The low-power and high-output characteristics reduce heat attenuation and ensure long-term stable operation. The motor is equipped with an absolute encoder, combined with high torque constant and low moment of inertia design, to achieve precise regulation of speed and torque. The speed ranges from 1500rpm to 3000rpm, reducing operation vibration and noise, and supporting micron-level machining precision.

Multi-Scenario Adaptation: Empowering the Entire Field of High-End Manufacturing

Relying on its core advantages, the DH05 Series is widely applicable to multiple scenarios in high-end manufacturing. In the field of precision machine tools, precise control and stable torque ensure machining precision, adapting to high-end component processing; in automated assembly lines, the compact size and low power consumption adapt to spatial layout, improving production line efficiency and space utilization; in the robot field, low moment of inertia and high dynamic response enhance the stability of joint movement, adapting to precision grabbing scenarios; in semiconductor equipment, high stability and protection performance resist the complex environment of the workshop, ensuring the continuity of processes such as wafer transmission.

Conclusion

With its modular design, excellent performance and multi-scenario adaptability, the DH05 Series modular torque motor redefines the power standard for high-end manufacturing, providing practical support for enterprises to reduce costs, increase efficiency and improve precision. The DH05 achieves "one product, multi-scenario adaptation", which not only fills the segmented gap of modular direct drive for small and medium loads, but also complements other series of products of dgsmartwin, demonstrating the technical strength of the national-level specialized, refined, characteristic and innovative "Little Giant" enterprise, and injecting precise power into the intelligent upgrading of high-end manufacturing.
