DGSMARTWIN Encoder Full-Scenario Selection Guide: Precisely Match the Needs of Automated Control

SMARTWIN Encoder Full-Scenario Selection Guide, Precisely Matching Automation Control Requirements

In the selection of automation equipment, the choice of encoder directly determines the control accuracy, operational stability and overall cost. Equipment for different industries, working conditions and control demands varies greatly in requirements for encoder type, precision, communication protocol and pollution resistance.

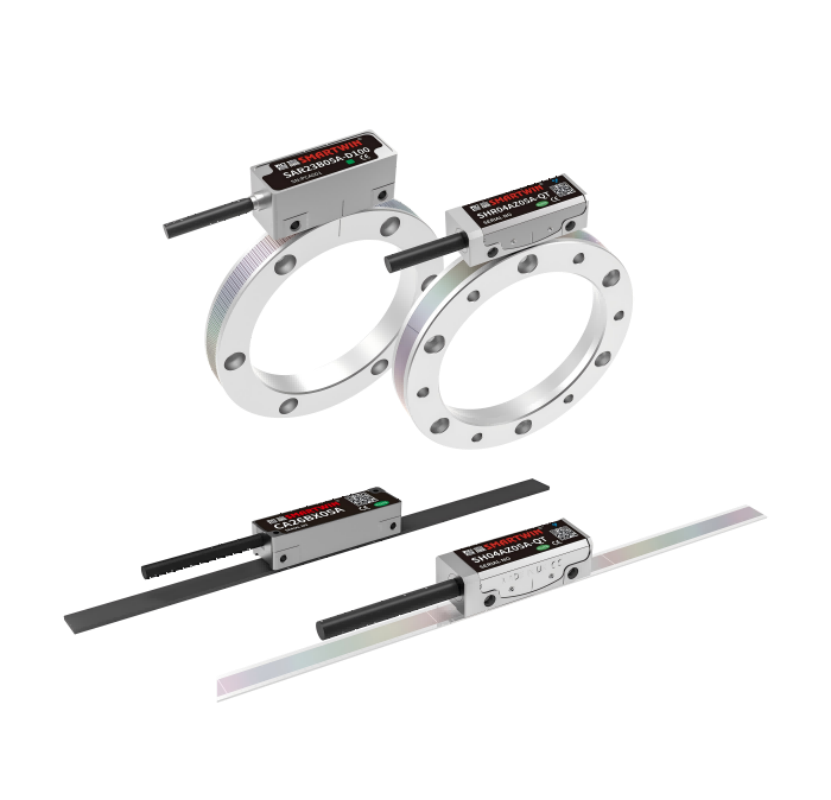

SMARTWIN has built a comprehensive encoder product matrix covering incremental and absolute types, optical and magnetic grating solutions, as well as linear and rotary encoders. It provides one-stop selection solutions for scenarios ranging from general applications to high-end precision fields.

This article sorts out the selection logic of SMARTWIN encoders from three dimensions: product classification, core specifications and applicable scenarios. It helps customers accurately match application demands and achieve the optimal balance between performance and cost.

Incremental encoders (SH, CH, SHR series) realize position feedback through counting pulses with cost-effective performance, and are suitable for scenarios without special position memory requirements, such as 3C automated assembly and general inspection equipment.

Absolute encoders (SA, CA, SAR series) directly output absolute position data without homing operation. The position data is retained even after power-off, making them ideal for applications demanding high startup efficiency and positioning accuracy, including semiconductor equipment, lithium battery production lines, and line-end medical devices.

First of all, in terms of encoder types, incremental and absolute encoders feature respective advantages to meet differentiated control requirements.

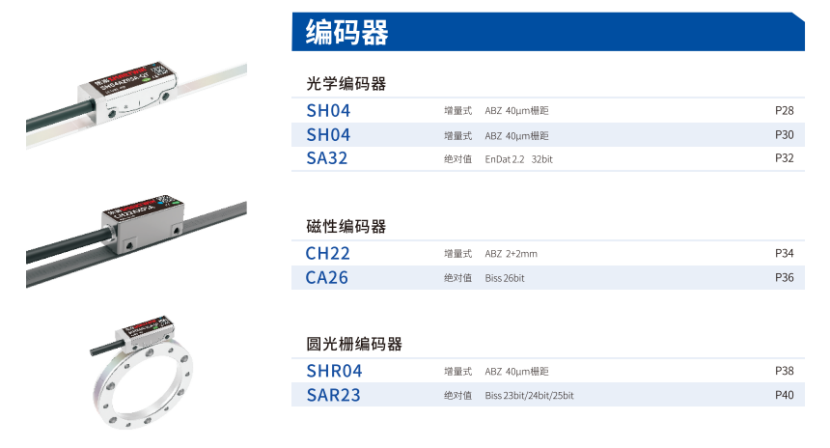

Secondly, in terms of sensing technology routes, optical grating, magnetic grating and rotary grating encoders each have distinct advantages, meeting different working conditions and precision requirements:

Optical grating encoders (SH/SA series): With the highest precision and stable signals, they offer a resolution up to 1 μm, making them ideal for high-cleanliness scenarios that demand extreme accuracy, such as semiconductors, precision machining and optical communication. Among them, the SH04 incremental encoder supports ABZ differential output for conventional precision control applications. The SA32 absolute encoder adopts the EnDat 2.2 protocol. Specially developed for high-end semiconductor equipment, it delivers ultra-high precision and excellent anti-interference performance.

Magnetic grating encoders (CH/CA series): Featuring powerful dust and oil resistance, magnetic encoders are insensitive to contaminants and allow a large installation gap. They are widely applied in harsh production lines for lithium batteries, photovoltaics and heavy industry. The CH22 incremental encoder adopts high-performance soft magnetic materials, suitable for 3C automation, digital printing and other scenarios. The CA26 absolute encoder supports BiSS-C and Tamagawa protocols. Customized for heavy-duty production lines such as lithium battery and photovoltaic industries, it achieves superior operational stability.

Rotary grating encoders (SHR/SAR series): Designed exclusively for rotary motion, they operate without mechanical friction and feature wide mounting tolerance. They are widely used in rotary control scenarios including medical equipment, precision measurement and optical communication. The SHR04 incremental encoder reaches a resolution of 1 μm for general rotary equipment. The SAR23 absolute encoder is compliant with the BiSS-C protocol, providing high-precision angle feedback for high-end medical and optical communication devices.

In terms of core characteristics, each encoder series delivers differentiated advantages to meet diverse application demands:

High precision requirements: Optical grating series (SA32, SH04) are the preferred choice to satisfy micron-level control for semiconductors, precision machining and other high-accuracy scenarios.

Harsh working conditions: Magnetic grating series (CH22, SH04) are the preferred choice to satisfy micron-level control for semiconductors, precision machining and other high-accuracy scenarios.

High-speed motion requirements: The entire encoder lineup supports high operating speeds. In particular, optical and rotary grating encoders provide faster response, making them ideal for high-speed automated production lines.

Space-limited installation: All models adopt a compact and lightweight structure for easy integration into small-scale precision equipment.

Homing-free operation: Absolute encoder series (SA, CA, SAR) require no mechanical homing. Real-time position data is available immediately after power-on, effectively improving equipment startup efficiency.

In summary, the full range of SMARTWIN encoders covers automated control scenarios from general-purpose to high-end, and from simple to complex working conditions. Customers can select the optimal encoder type and series according to actual control demands, on-site environment, precision standards and cost budgets.

With a fully covered product matrix, SMARTWIN provides one-stop selection solutions to help automated equipment achieve efficient, precise and stable operation, serving as a reliable partner in the field of high-precision automation control.
