In the field of precision manufacturing where strict requirements are imposed on tracking error and speed fluctuation, the CFW Series iron-core linear motors have long established a firm foothold with their full-spec coverage and high-performance. As the core model tailored for medium and heavy-duty scenarios, the CFW135 Series precisely resolves the industry pain point of "difficulty in balancing high-speed operation and heavy-load output".

Based on iron-core technology, the CFW135 Series achieves ultra-high acceleration and ultra-high speed while delivering strong thrust output. This feature enables it to complete high-speed start-stop operations in an extremely short time, greatly improving the cycle efficiency of equipment. Meanwhile, the ultra-low cogging force design ensures that the motor maintains stable operation even at high speeds, effectively suppressing vibration and noise and guaranteeing motion precision, making it particularly suitable for application scenarios with extremely high dynamic response requirements.

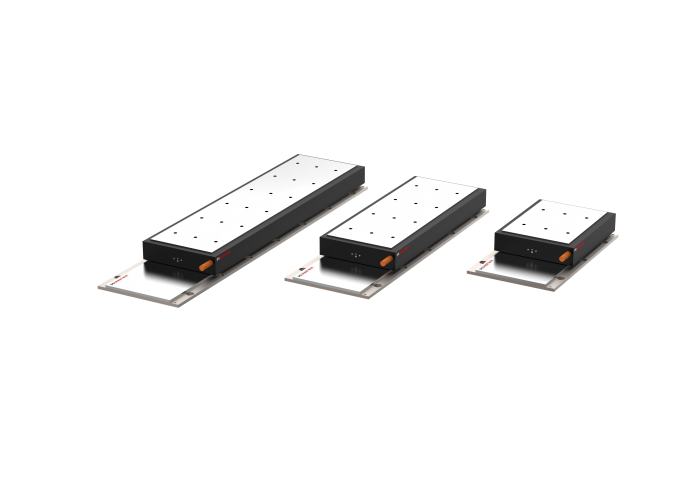

To meet diverse application needs, the CFW135 Series offers flexible configuration combinations. The mover length ranges from 384mm to 563mm, and the width is fixed at the optimally adaptable 160mm. The continuous thrust reaches the high-end range of 1680-2520N, and the peak thrust matches the heavy-load demand of 5040-7650N. It is paired with the MFW135 Series stators, which are available in two lengths: L204 (204mm) and L306 (306mm), and divided into the P high-performance version and the unmarked default standard version. This allows users to flexibly select the optimal combination based on their considerations of performance and cost.

With its high-speed and high-response characteristics, the CFW135 Series linear motors are widely used in the following fields:

High-speed electronic manufacturing equipment: Such as high-speed chip mounters and chip sorters, enabling fast and precise pick-and-place of components.

Laser processing and engraving: Meeting the high-speed and high-precision positioning requirements of laser heads, improving processing efficiency and quality.

Automated sorting and packaging: Realizing rapid material handling and sorting on high-speed production lines.

From the perspective of product design logic, the CFW135 Series is an in-depth insight and precise implementation of the needs of medium and heavy-duty precision scenarios. Its 1:1 dimensional compatibility with imported brands and nearly identical performance break the monopoly of foreign brands in the field of medium and heavy-duty precision transmission. On the premise of equivalent performance, it reduces equipment investment and supply chain risks for enterprises with more controllable delivery cycles and better cost advantages. For manufacturing enterprises pursuing high efficiency, high precision and cost control, the CFW135 Series is more than just a power component; it is a core support for promoting the upgrading of medium and heavy-duty precision equipment.
