DGSMARTWIN Linear Motor: Dynamic Response Dimension Comprehensive Advantage in High Acceleration, Thermal Management and Structural Expansion

Dynamic Response | Comprehensive Advantages of SMARTWIN Linear Motors in High Acceleration, Thermal Management & Structural Expand-ability

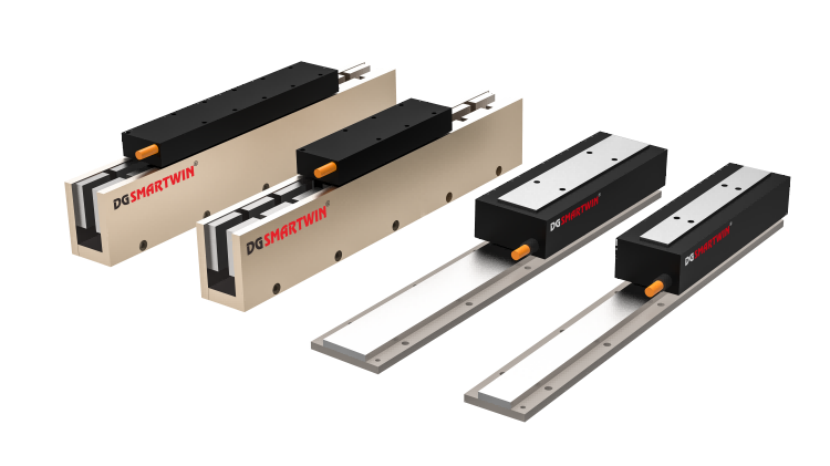

Acceleration performance, thermal stability and multi-axis expand-ability are core factors that determine whether linear motors can adapt to high-frequency flexible manufacturing scenarios, and also represent the main technical gaps among peer products. Focus on core direct-drive technologies, SMARTWIN Intelligent Equipment has achieved technical upgrades in thrust density optimization, full-range thermal management and modular structural design. Our full range of CFS iron-core and CFW coreless linear motors deliver overall competitive edges with higher thrust density, superior thermal stability and stronger adaptability for multi-axis expansion compared with equivalent products.

Conventional linear motors in the industry generally adopt standardized magnetic circuit and winding solutions, resulting in low thrust density and limited ultimate acceleration. Under working conditions such as high-frequency reciprocation, rapid interpolation and instantaneous start-stop, their dynamic response fails to meet the requirements for cycle time upgrading of high-end equipment. In addition, unreasonable heat dissipation design for coils tends to cause local heat accumulation during prolonged high-speed operation, which may lead to demagnetization of magnetic steels, positioning zero drift and thrust degradation. SMARTWIN iron-core linear motors optimize the magnetic flux utilization of iron cores to improve thrust density and instantaneous overload capacity, delivering far higher ultimate acceleration than competing products. They are well suited for high-dynamic applications such as AOI optical inspection and laser precision machining. The partitioned heat dissipation structure enhances coil heat conduction and achieves superior overall temperature rise control, ensuring stable accuracy and thrust output during long-duration operation.In terms of structural expand-ability, our linear motors support synchronous motion of multiple movers on a single stator and synchronized multi-axis linkage control, enabling parallel operation at multiple stations on one axis. Most peer products are restricted by structural design and can only perform a single motion per axis. Expanding to multiple stations requires additional drive units, which greatly increases equipment cost and structural complexity.

Industrial automation equipment is evolving toward higher cycle rates, greater flexibility and higher integration. The dynamic performance of motion components directly determines the overall equipment capacity and process limits.Boasting outstanding dynamic response, excellent thermal management and flexible modular design, SMARTWIN Intelligent Equipment breaks the performance constraints of competing products. Our solutions adapt to complex industrial scenarios including heavy load, high speed and multi-axis linkage, delivering highly reliable and well-matched direct-drive motion solutions for manufacturers of high-end equipment.
