1. Precision Degradation of Rotary Stations: Traditional Transmission Solutions Have Reached Their Performance Ceiling

With the continuous iteration of high-end automated equipment, rotary stations undertake critical processes including indexing rotation, workpiece positioning and multi-angle inspection. For a long time, equipment manufacturers have widely adopted the "servo motor + reducer" transmission architecture, which boasts certain advantages in terms of upfront procurement cost. However, under real working conditions featuring high tact and long-duration cyclic operation, backlash accumulation caused by gear wear will gradually surface. Repeated forward and reverse rotation continuously widens transmission clearance, resulting in deteriorated repeat positioning accuracy. The equipment has to be frequently shut down for disassembly and maintenance, which directly cuts down the effective production time of production lines.

At the same time, vibration and noise generated during gear operation, along with secondary contamination from lubricant volatilization and wear debris, bring extra risks to cleanliness-sensitive stations. As equipment develops toward high speed and maintenance-free operation, the physical limitations of conventional transmission structures can hardly satisfy the comprehensive demands of high-end manufacturing. Against this backdrop, direct-drive DD motors have become a core alternative solution highly evaluated by equipment R&D teams. DGSMARTWIN (Smartwin Intelligent Equipment) is a key promoter of this technology route in the domestic market.

2. No Intermediate Transmission Architecture: Eliminating Backlash and Wear at the Source

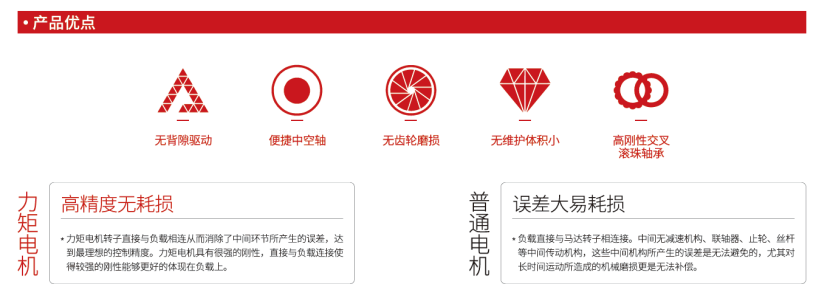

Smartwin Intelligent Equipment DD Motors completely eliminate gears, belts, reducers and the entire set of intermediate transmission components, adopting a design in which the output flange directly interfaces with the workpiece. At the physical level, this architecture eradicates the existence of transmission backlash. Regardless of whether the equipment undergoes high-frequency reciprocating oscillation or long-duration fixed-point locking, the consistency of angular positioning does not degrade significantly with operating hours, thereby stably safeguarding the process quality of indexing and rotary inspection stations.

Leveraging a systematically optimized magnetic circuit structure, DGSMARTWIN DD motors achieve a balanced trade-off between torque output capability and dynamic response characteristics. The start-stop transition is smooth and soft, effectively suppressing rotational jitter, and well suited for process scenarios highly sensitive to motion smoothness — such as multi-angle visual imaging inspection and precise angular alignment of workpieces. During the early project engagement phase, the Smartwin Intelligent Equipment technical team also assists customers in load inertia evaluation, proactively avoiding field issues such as oscillation and tuning delays caused by inertia mismatch, and effectively reducing trial & error costs during the prototype commissioning stage.

3. In-depth Adaptation to Diverse Working Conditions: Balancing Protection Rating and Customized Engineering Requirements

Working conditions vary drastically across domestic manufacturing workshops. Dust and corrosive mist in lithium battery workshops, as well as complex electromagnetic environments in semiconductor workshops, impose stringent requirements on the overall durability of motion components. During the hardware design phase, Smartwin Intelligent Equipment DD motors fully take into account the actual environments of local production lines, enhance electrical anti-interference performance, and can be configured with corresponding protection specifications according to specific project requirements, effectively countering adverse impacts caused by dust ingress and temperature fluctuations.

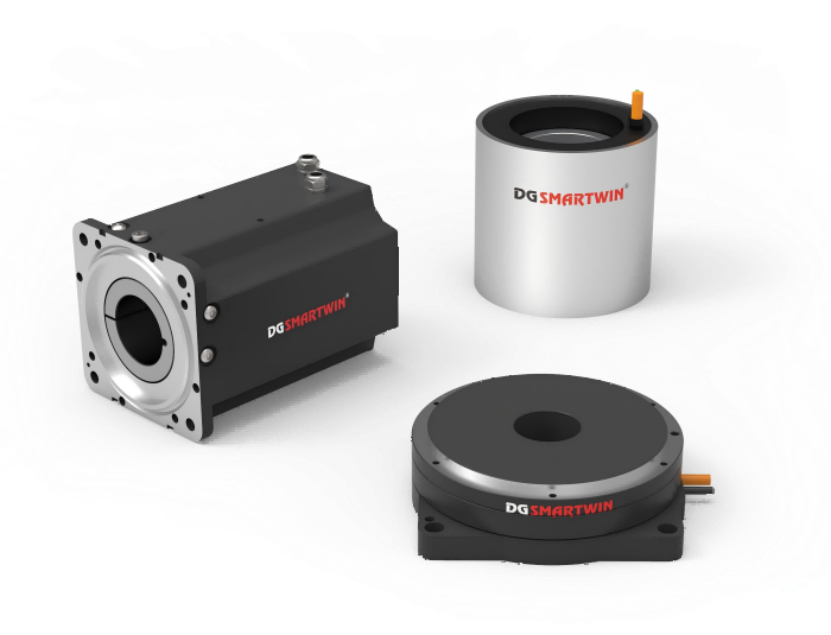

Miniaturization and high integration of equipment have become widely recognized industry trends, yet standard motor products often fail to fit the diverse installation space of complete machines. The Smartwin Intelligent Equipment DD motor series covers multiple outer diameter and thickness specifications. Its hollow-bore models allow cables and pipelines to pass directly through the central bore, greatly simplifying the internal wiring layout of the machine. Meanwhile, Smartwin Intelligent Equipment supports project-specific custom development. Specialized adjustments can be made to installation dimensions, torque specifications and protection ratings. The motors are compatible with mainstream encoders and industrial bus protocols available on the market, fully meeting differentiated development demands for equipment across various industries.

4. Localized Supply Chain System: Promoting Substantial Localization of Rotary Direct-Drive Components

The high-end DD motor market has long been dominated by overseas brands. Equipment manufacturers are faced with not only high procurement costs and long lead times, but also cumbersome after-sales response procedures. In the event of hardware failures on production lines, the waiting period for spare parts will directly delay overall project progress. This pain point is particularly prominent in high-tempo manufacturing industries.

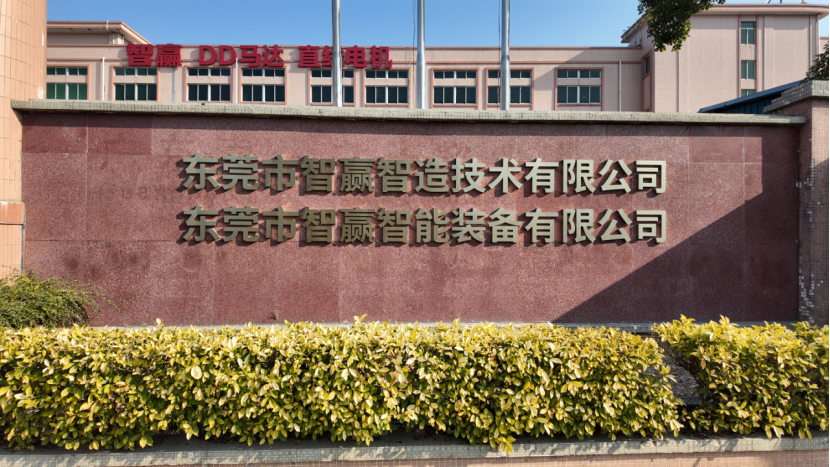

DGSMARTWIN (Smartwin Intelligent Equipment) realizes independent R&D and production of DD motor bodies, together with factory matching and calibration with encoders. A complete localized technical coordination and after-sales support system has been established. For both standard models and customized projects, Smartwin Intelligent Equipment boasts comprehensive advantages in performance, lead time and cost. It helps equipment manufacturers optimize the component supply chain structure and get rid of various constraints caused by imported components. In the upgrade of rotary stations in key sectors such as lithium battery, semiconductor, photovoltaic and 3C industries, Smartwin Intelligent Equipment DD motors keep supporting the substantial implementation of domestic direct-drive solutions.
