BMS Linear Motor Modules Empower Equipment Digital Upgrade in the Industrial IoT Era

BMS Linear Motor Modules Empower Equipment Digital Upgrade in the Industrial IoT Era

1. Automation Enters the IIoT Era, Bringing New Digital Requirements for Long-Travel Motion Units

The focus of modern industrial automation has shifted from simple mechanical motion execution to full digitalization featuring equipment networking, real-time data acquisition, remote operation and maintenance, and multi-axis collaborative control. A wide range of equipment in semiconductor manufacturing, laser processing, and large-scale multi-station production lines adopts long-travel sliding platforms with a stroke of over two meters. Traditional ball-screw and belt-driven modules suffer from inherent defects including structural deformation and insufficient precision. More importantly, they can hardly output complete operational data and fail to connect with factory 5G-lloT platforms, becoming major bottlenecks restricting the digital transformation production lines.

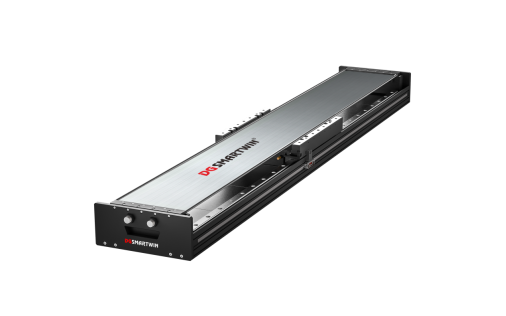

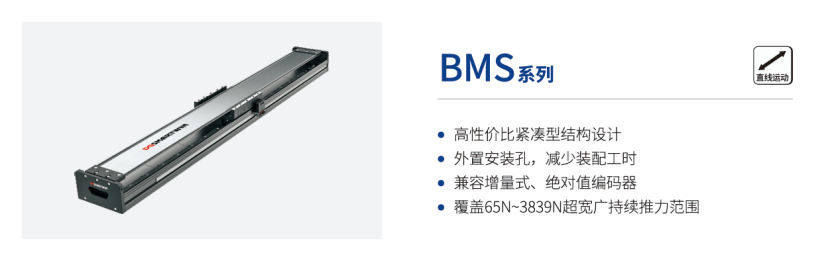

As a domestic manufacturer deeply rooted in the direct-drive industry, Smartwin Intelligent Equipment has captured this industrial transformation trend. While optimizing the hardware performance of BMS semi-enclosed linear motor modules, the company fully upgrades data interaction capabilities to adapt to digital factory construction. The Smartwin BMS semi-enclosed linear motor module supports a maximum standard stroke of 5788 mm and a top moving speed of 5 m/s, with a continuous thrust range from 65 N to 3839 N. Equipped with No.15 heavy-duty guide rails, it adopts direct-drive zero-backlash design. The module is component for both light-load visual scanning and heavy tooling bearing scenarios. Meanwhile, it outputs real-time operational status data including position, temperature, vibration and load, fully meeting the digital construction demands of smart factories.

2. Optimized Hardware Structure for On-Site Environments, Building a Stable Foundation for Data Acquisition

Equipment operational stability serves as the fundamental prerequisite for digitalizaton. Frequent jittering or precision drift of motion modules will render all collected data invalid and non-referential. Most ope-type linear motor modules on the market are vulnerable to dust intrusion, while fully enclosed models tend to accumulated heat and cause precision deviation, both failing to support long-term and stable data collection.

The Smartwin BMS semi-enclosed linear motor module adopts a semi-enclosed housing structure, which effectively isolates workshop dust and corrosive mist while reserving dedicated heat dissipation gaps to avoid heat accumulation during long-tour high-speed motor operation. Equipped with an external centralized lubricant structure, the BMS module requires no housing disassembly for daily maintenance, eliminating parameter deviation caused by repeated disassembly and assembly. Optimized for low noise and low dust emission at the factory stage, the module is well suited for dust-free workshops in lithium battery production and optical inspection stations. With stable and reliable mechanical performance, it enables sensors and encoders to continuously output authentic and valid original data, providing trustworthy data sources for Industrial Internet of Things Platforms.

3. Unblocking Communication Links to Adapt to Remote Management Trends of Flexible Production Lines

Currently, numerous factories are advancing 5G loT transformation to achieve multi-axis synchronization, remote parameter debugging, and rapid production line changeover. The Smartwin BMS semi-enclosed linear motor module features communication interfaces compatible with mainstream industrial buses, enabling seamless connection with factory gateways and equipment management platforms. When multiple BMS modules from multi-station production lines, precise clock synchronization across all axes is realized, ensuring high-precision collaborative motion for long-distance and multi-station operation.

Under the flexible manufacturing model, product switching requires no mechanical modification. Engineers can remotely adjust motion parameters such as travel stroke and acceleration to complete rapid process conversion. As an original equipment manufacturer, Smartwin Intelligent Equipment supports customized optimization of BMS modules according to on-site installation space, data acquisition frequency, and special dustproof requirements, fully adapting to digital transformation projects of different factories.

4. Domestic Direct-Drive Digital Solution Reduces Enterprise Intelligent Transformation Costs

In the past, realizing digital networking of long-travel sliding platforms largely relies on high-priced imported modules, which incurred high procurement costs and featured long response cycles for subsequent commissioning and troubleshooting, Smartwin’s core advantage lies in the integrated design of mechanical execution and data sensing capabilities embedded in BMS semi-enclosed linear motor modules, which can be fully matched with self-enclosed Smartwin encoders for complete one-stop delivery.

The integrated solution supports basic data collection without extensive additional external sensors, effectively reducing secondary development workload for equipment manufacturers. Tailored for semiconductor, 3C, lithium battery and laser processing industries, the Smartwin BMS linear motor module balances superior mechanical motion performance and stable digital output capability, empowering domestic automation equipment to achieve efficient Industrial Internet of Things upgrading.
