SAR23 Absolute Circular Grating Encoder

SAR23 Absolute Circular Grating Encoder

Features

  • Compact and Lightweight
  • High Response
  • Insensitive to Temperature Variations
  • LED Status Indicator
  • Easy to Dismantle and Assemble

Applicable Industries

Healthcare Industry Precision Testing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Readhead ordering rules
SAR
Series
  • SAR: Absolute Grating
23
Output
  • 23-bit-D75-115
  • 24-bit-D229
  • 25-bit-D300
B
Communication protocol
  • B: BISS-C
05
Cable length
  • 05:0.5m
A
Connector
  • A: 9-pin D-type
    Connector
MC
Type
Ordering rules for rotary encoders
SAR
Series
  • SAR: Absolute Grating
S
Material
  • S: Stainless steel
D115
Outer diameter
  • D115:115mm
    Other outer diameters can be seen in the dimension diagram.
MC
Type
  •
Parameter configuration
Reading head Communication protocol Voltage and current Operating temperature Grating type Positional accuracy Repeatability accuracy Coefficient of thermal expansion
SAR Series BISS-C 5V±10%，200mA(No-load) 0℃至+65°C Ring-type It depends on the outer diameter of the circular grating, as well as the assembly relationship between the reading head and the circular grating. ±2.5 arc-seconds T (Ideal assembly relationship) 15.5+0.5μm/m/℃

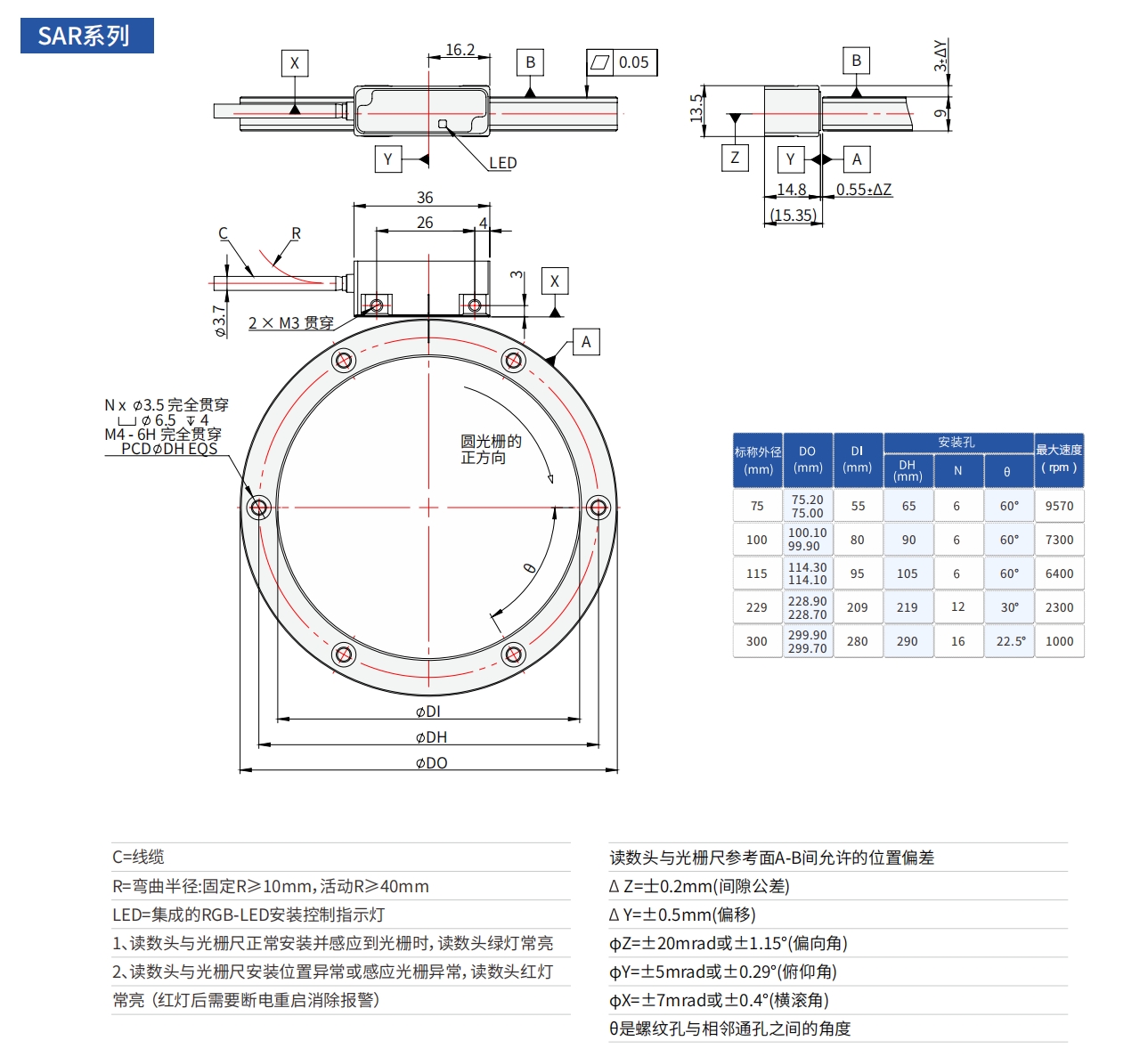

SAR23 Dimension diagram

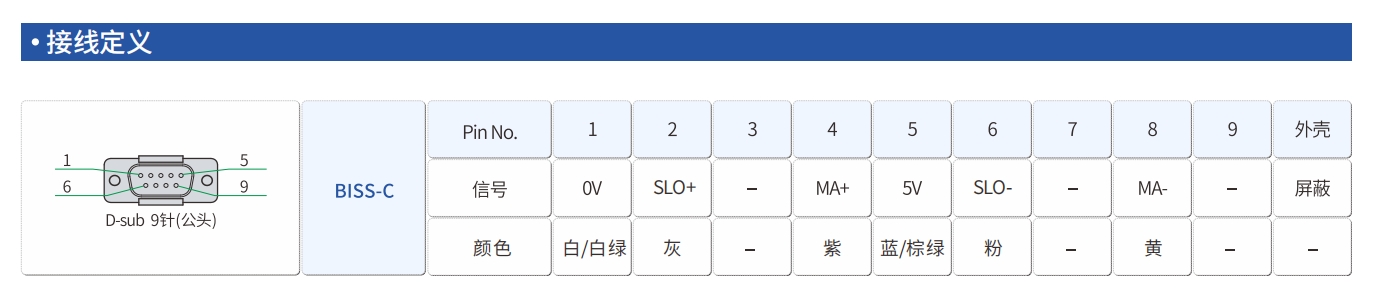

SAR23 Wiring definition
SAR23 Dimension diagram
SAR23 Wiring definition
