CMW120

CMW120

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Compact Size

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CMW
Series
  • CMW
120
Armature Width
  • 060: 60mm  075: 75mm
  • 095:95mm 120: 120mm
B
Armature Length
  • B: 102mm  D: 188mm
  • F: 270mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A,B,C,D etc.
L05
Stator Lead-out
  • L05:0.5m lead-out (4x20AWG)，
    compatible with 16M-4K connector
Stators order number rules
MMW
Series
  • MMW
120
Armature Width
  • 120: 120mm
L96
Armature Length
  • L96: 96mm
  • L144: 144mm
Motor Model  Length (LC) Width Height A Z Magnetic Pole Pitch  Mass
Unit mm mm mm PCS PCS mm kg/m
MMW120-L96 96 120 8.8 1 4 24 7.0
MMW120-L144 144 120 8.8 2 6 24 7.0
Parameter configuration
Product Model CMW120A CMW120B CMW120C CMW120D CMW120E CMW120F
Armature Length(mm) 102 188 270
Continuous Thrust(N) 283 544 816
Peak Thrust(N) 927 1855 2473

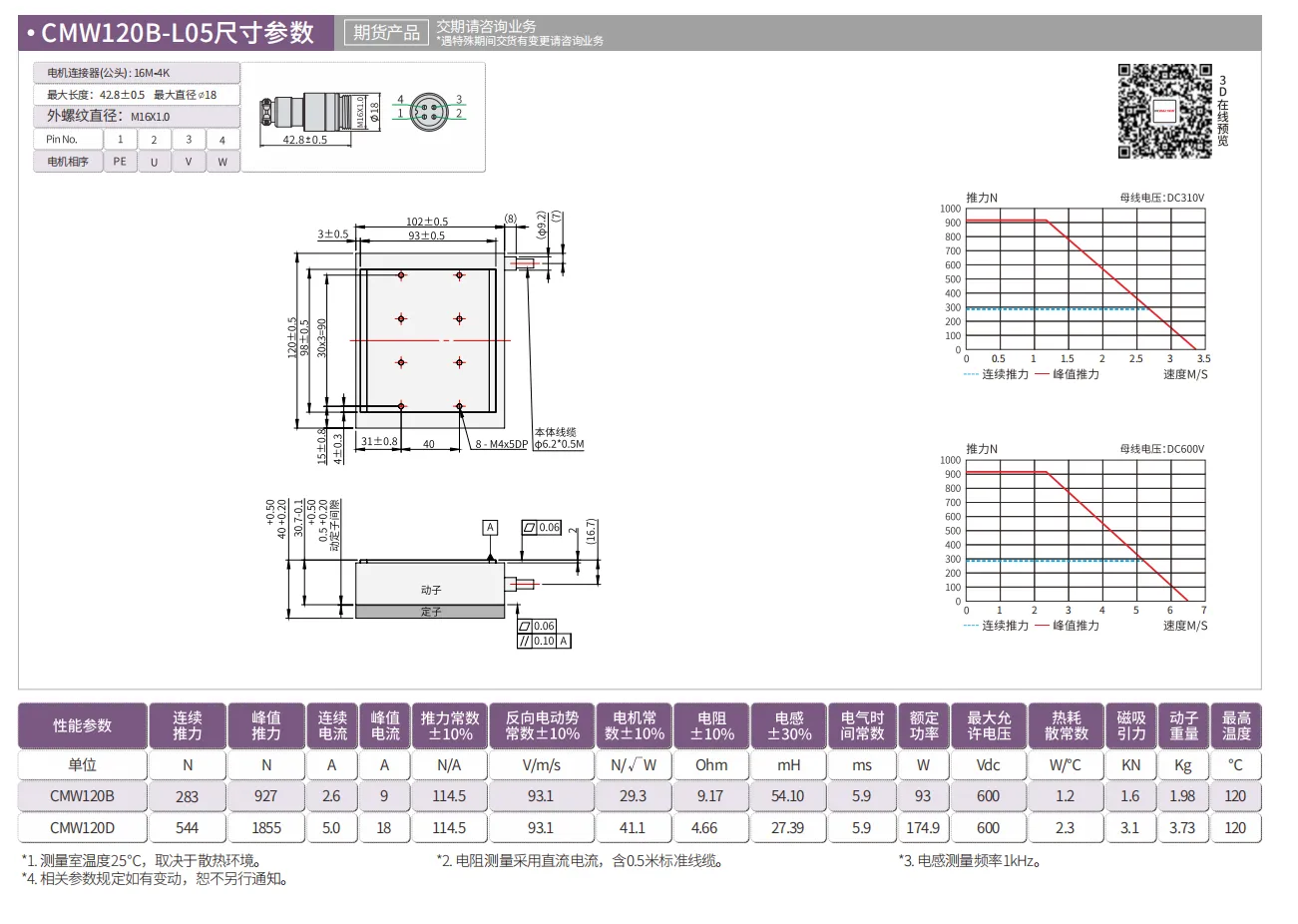

CMW120B

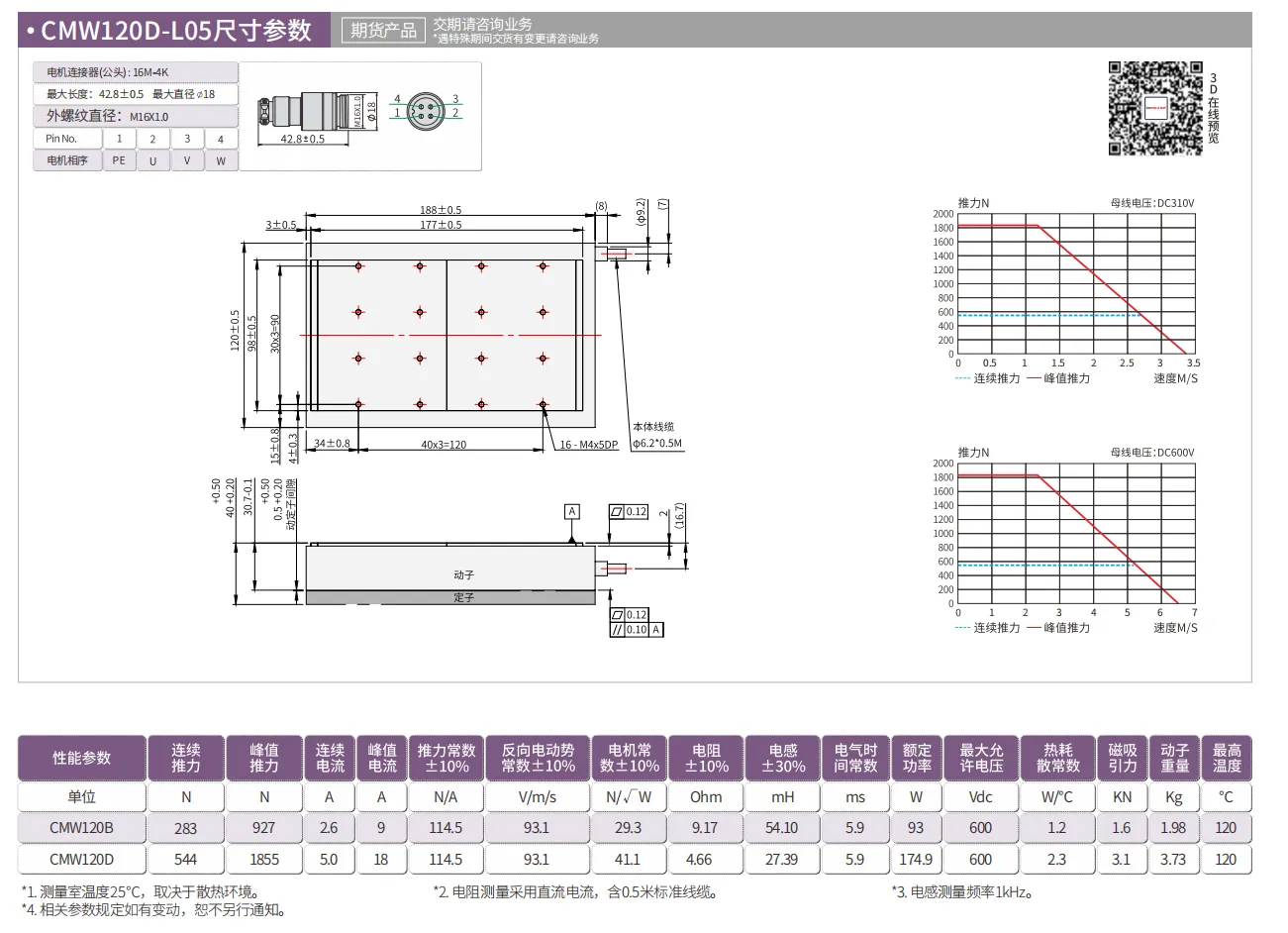

CMW120D

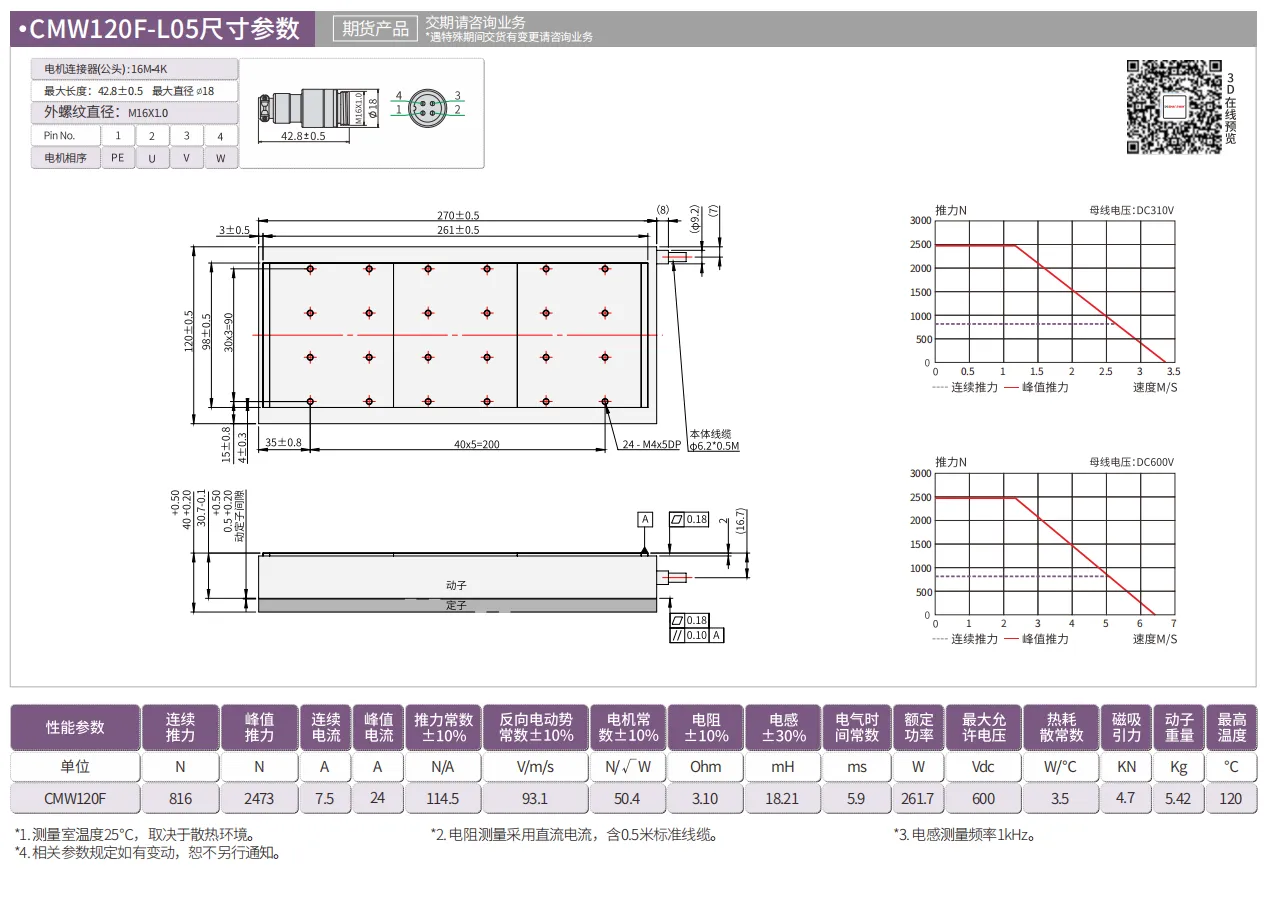

CMW120F
CMW120B
CMW120D
CMW120F
