CKM100 High Force Linear Motor

CKM100 High Force Linear Motor

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Stiffness

Applicable Industries

Semiconductor Industry Display Panel Industry Solar PV Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Online Conversation
Movers order number rules
CKM
Series
  • CKM
100
Armature Width
  • 030: 51mm  050: 71mm
  • 100:121mm 150: 171mm
  • 200: 221mm
A
Armature Length
  • A: 112mm  B: 196mm
  • C: 280mm  D: 364mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LF05
Armature Lead
  • LF05: 0.5-meter lead (4x20AWG),
    with WS20J4ZQ connector
  • LC05: 0.5-meter lead (4x16AWG),
    with WS20J4ZQ connector
  • LD05: 0.5-meter lead (4x13AWG),
    with WS20J4ZQ connector
Stators order number rules
MKM
Series
  • MKM
100
Stator Width
  • 100: 125mm
L168
Stator Length
  • L168: 168mm
  • L252: 252mm
Motor ModelLength (LC)WidthHeightAZMagnetic Pole PitchMass
UnitmmmmmmPCSPCSmmkg/m
MKM100-L16816812510.814428.9
MKM100-L25225212510.826428.9
Parameter configuration
Product ModelCKM100ACKM100BCKM100CCKM100DCKM100ECKM100F
Armature Length(mm)112196280364
Continuous Thrust(N)35470810631416
Peak Thrust(N)799159723983195

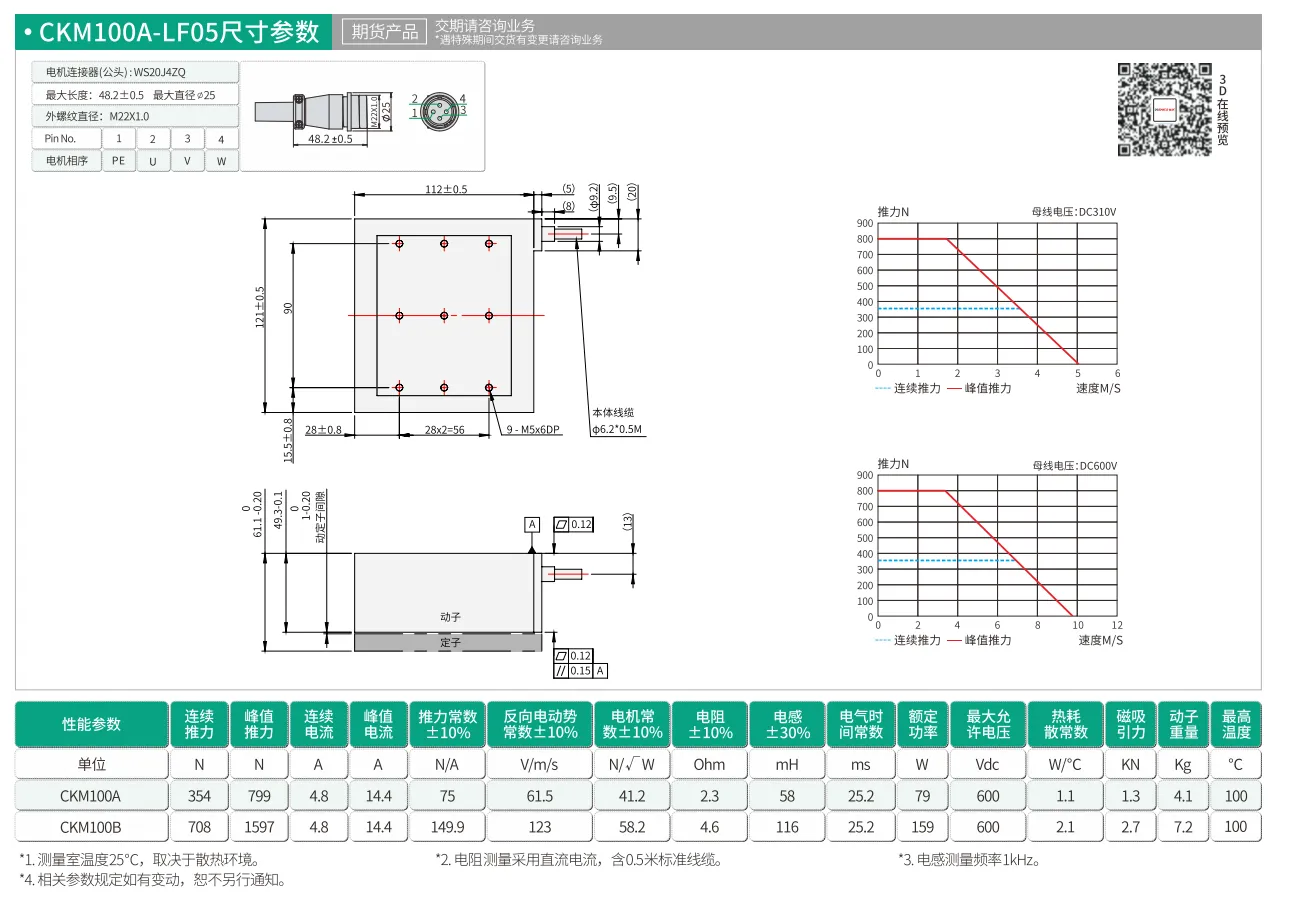

CKM100A

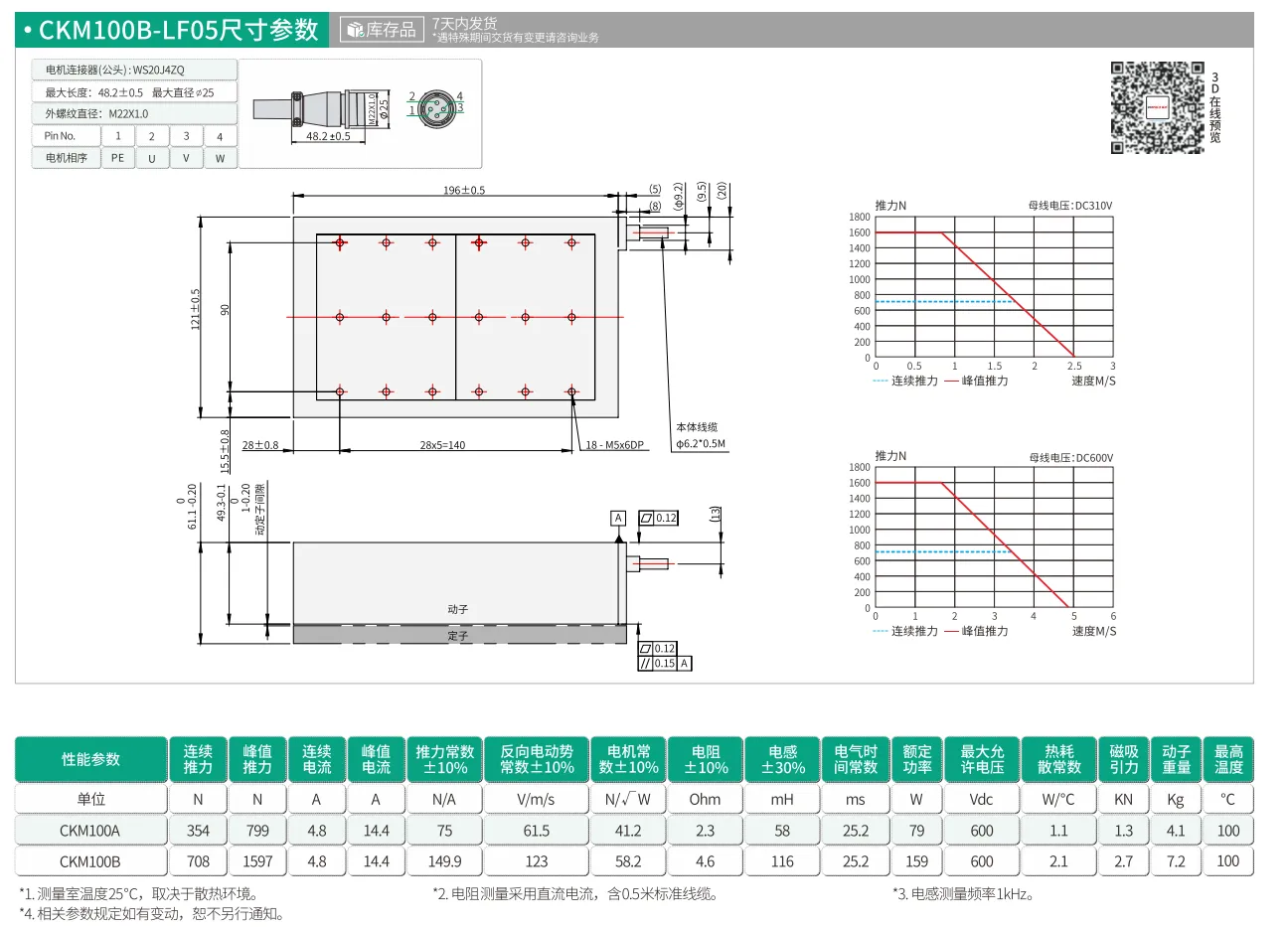

CKM100B

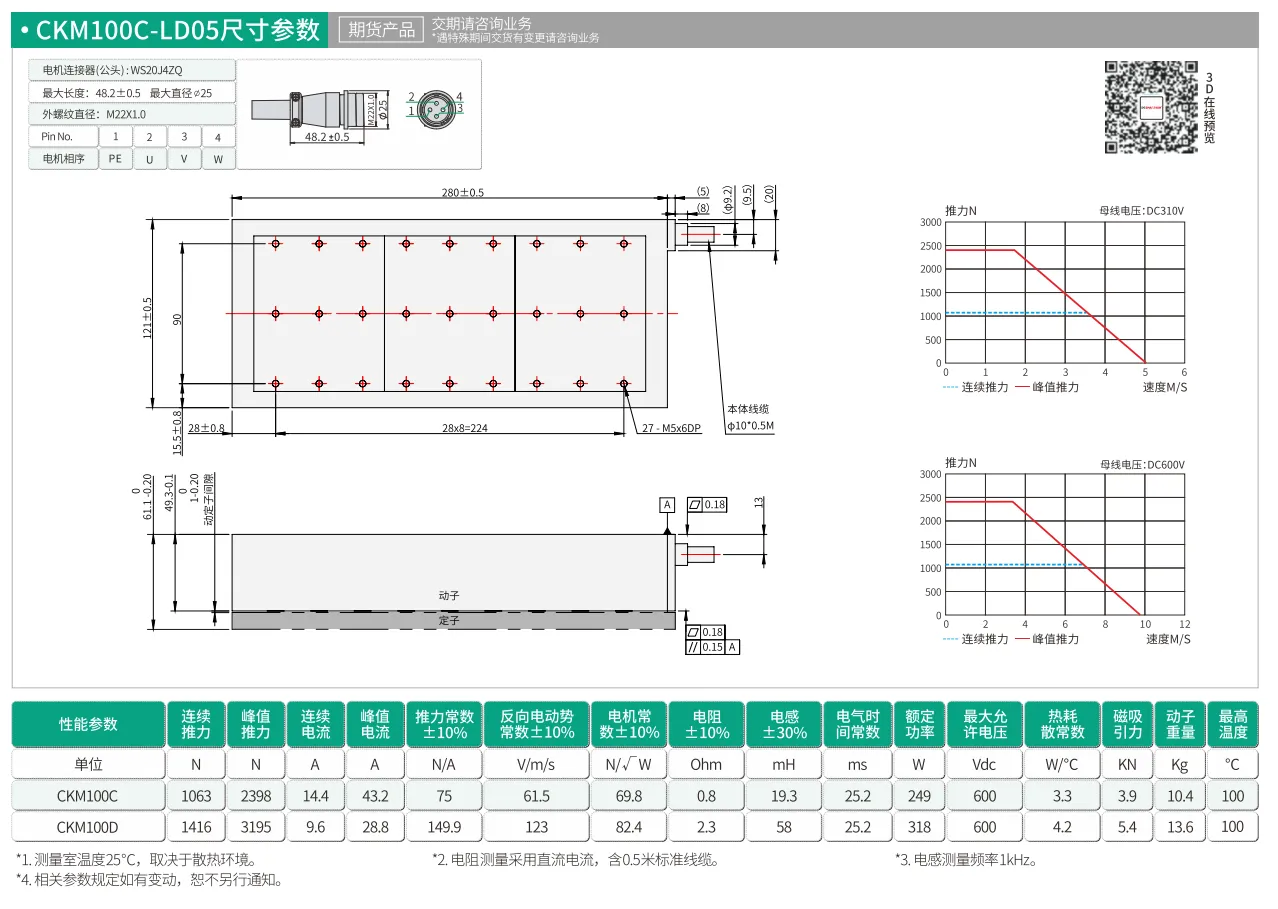

CKM100C

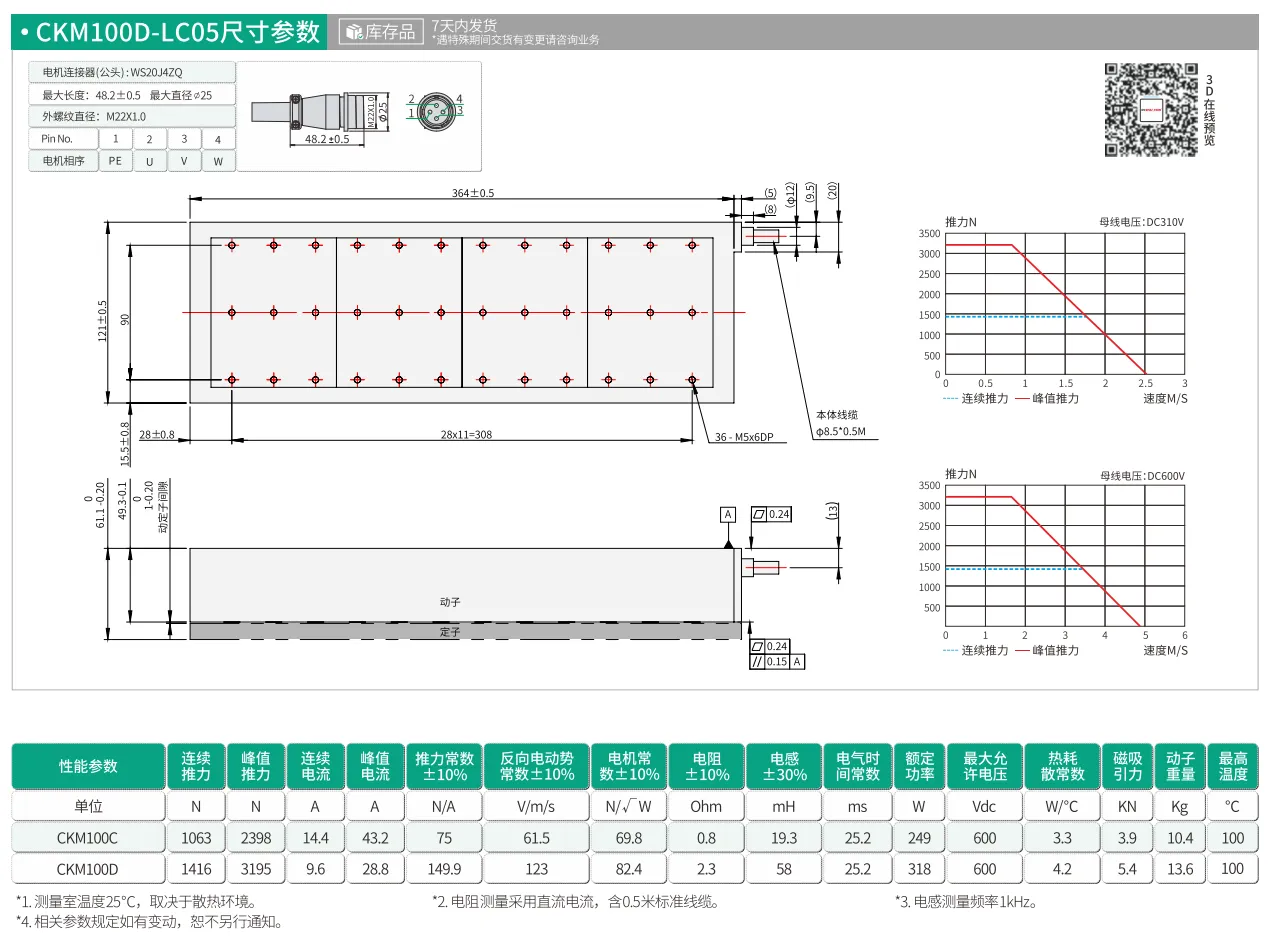

CKM100D
CKM100A
CKM100B
CKM100C
CKM100D
